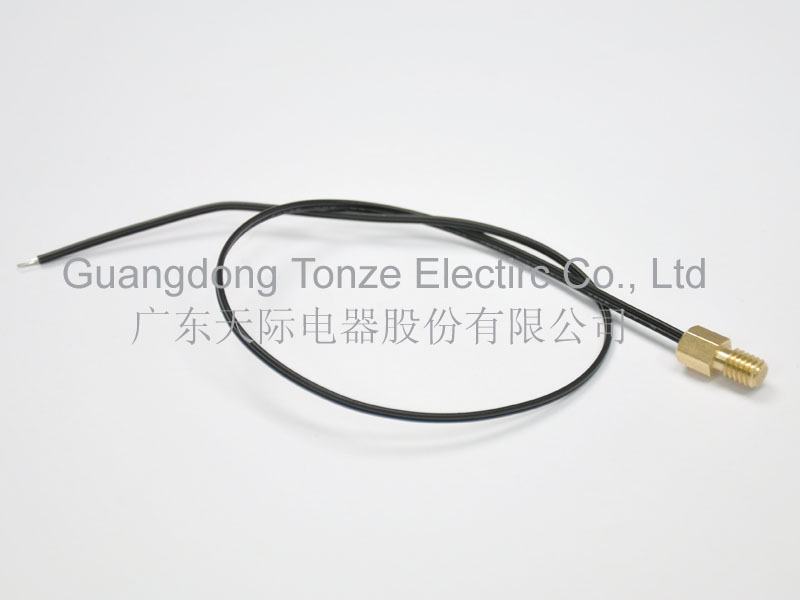

Electric Food Warmer usd NTC Sensor

Specifications

· Special parameter could be made according to different requirement

· High precision, reliable NTC Thermistor connected to different wire, coated with insulated, heat conductive and water resistant epoxy resin into desired shapes

· High precision of resistance and B value

· Good coherence and interchange ability

· Quick response and high delicacy

· Double packaging techniques adopted to ensure good insulation and sealing effect, high resistance to mechanical colliding and bending

· A variety of coating configuration and shell materials are available according to different usages

· Cable length could be tailored according to customers' requirement

Application:

Room heaters, freezers, drinking water dispenser, air warmers, dishwashers, disinfecting cabinets, washing machines, driers, air conditioners, refrigerators, water heaters, amplifier, medium-low-temperature drier cabinet, thermo tanks, unitary bathroom, medical apparatus and instruments, floor heating thermostat, soil temperature, water temperature and so on.

Specification:

· The range of resistance under the rated zero power (R25℃): 0.1~1000KΩ

· The allowable tolerance of R25℃: ±0.5%, ±1%, ±2%, ±3%, ±5%

· The range of B value (K): 3100～4500K

· The allowable tolerance of B value: ±0.5%, ±1%, ±2%, ±3%, ±5%

· The range of operating temperature: -30℃ ~ +125℃

· Dissipation factor: ≥2.0mW/℃ (In Still Air)

· Thermal time constant: ≤30S (In Still Air)

· Encapsulated: A variety of shells

· Dimension: Customized
