Black Serrated Steel Grating

Inquiry Now

Specifications

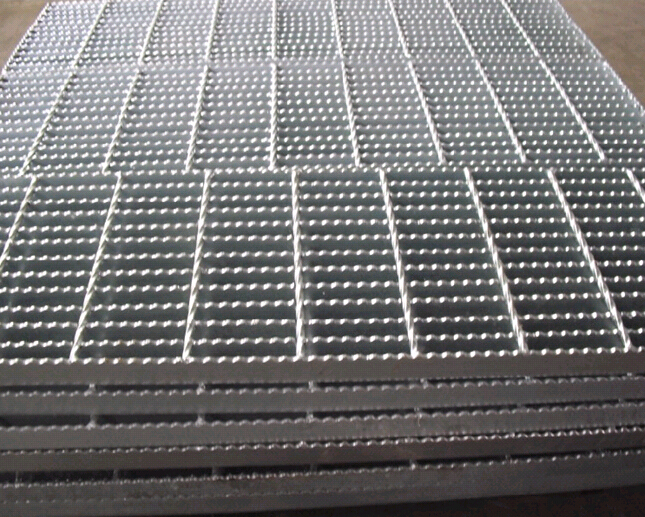

ot dipped galvanizing steel grating is made by welding with flat steel and bars with certain distances. It goes through cutting, opening, edging and other processes. The products enjoy the feature of high strength, light structure, high bearing, convenience for loading and other propertied. The hot dipped zinc coating gives the product excellent anti-corrosion.

No	Item	Description
1	Bearing bar	20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc. US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
2	Bearing bar pitch	25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Cross bar	5x5, 6x6, 8x8mm (twisted bar or round bar)
4	Cross bar pitch	40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers' requirement.
5	Surface treatment	Black, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers' requirement.
6	Material standard	Low carbon steel (ASTM A36, A1011, A569, S275JR, SS304, SS400,UK: 43A)
7	Galvanizing standard	CN: GB/T13912, US: ASTM (A123), UK: BS729
8	Steel grating standards	A. China: YB/T4001-1998
		B. USA: ANSI/NAAMM (MBG 531-88)
		C. UK: BS4592-1987
		D. Australia: AS1657-1988
		E: Japan: JJS

Application: widely used by various plants such as electric power,petroleum,chemical industry,metallurgy industry,machinery industry,shipbuilding, harbor,oceanographic engineering,building,paper mills,cement plant,medicine,spinning and weaving,foodstuff factory,transportation,municipal administration,parking lot,etc.
