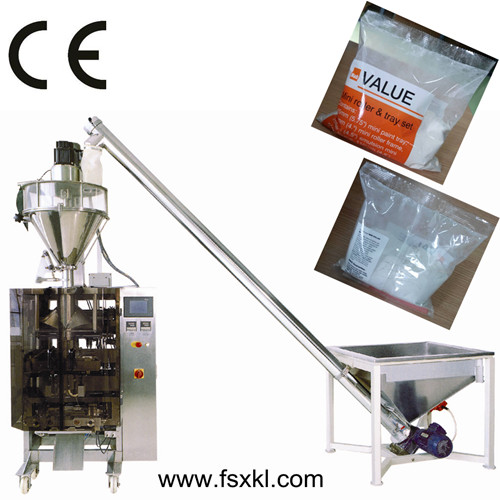

Flour, Milk Powder Vertical Packaging Machine with Screw Dispenser
| FOB Price: | 1.00 - 50,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Month |
| Shipping: | 30 days for OEM, Guangzhou/Foshan |
| Payment Terms: | T/T, Western Union, Other |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 1)film wrapped inside; 2) wooden case outside |
Quick Details
- Condition: New
- Application: Food,Beverage,Medical,Chemical
- Packaging Type: Case
- Packaging Material: Wood
- Automatic Grade: Automatic
- Driven Type: Pneumatic
- Voltage: 220
- Power: 3
- Brand Name: XINKELI
- Model Number: KL-350D-720D
- Dimension(L*W*H): 1400*970*1600*
- Certification: CE
- After-sales Service Provided: Engineers available to service machinery overseas
- Material: Carbon,stainless steel
- Color: Grey or customized
Specifications
Powder Packaging System Item No. | KL-720D | KL-520D | KL-420D | KL-350D |
Bag length | 100-500mm | 80-350mm | 50-300mm | 100-230mm |
Bag width | 100-350mm | 80-250mm | 60-200mm | 75-165mm |
Film width | Max.720mm | Max.520mm | Max.420mm | Max.350mm |
Capacity | Max.5000ml | Max.2000ml | 150-1400ml | 150-700ml |
Film Thickness | 0.04－0.08m m | |||
Film applied | CPP/OPP, OPP, other laminated film etc. | |||
Packing speed | Max 10-20bag/min | Max 10-50bag/min | Max 10-55bag/min | Max 10-60bag/min |
Outside size of packing machine | (L)1680*(W)1350*(H)2800(mm) | (L)1430*(W)1200*(H)2700(mm) | (L)1400*(W)970*(H)2600(mm) | (L)1400*(W)970*(H)2600(mm) |
Driving system | Pneumatic Note: the film is dragging by servo motor | |||
Air consumption | 350L/min 0.6 *105Pa | 350L/min 0.6 *105Pa | 350L/min 0.6 *105Pa | 350L/min 0.6 *105Pa |
Sealing method | Standard machine: Pillow bag former Note: other formers with additional charges are pillow bag with hole, pillow bag with gusset etc. | |||
Power supply | 4kW/220V/50-60Hz | 4kW/220V/50-60Hz | 2.2kW/220V/50-60Hz | 2.2kW/220V/50-60Hz |
Machine Material | Standard machine: carbon steel for main parts, all areas touching the products are stainless steel or the material in food standard. Note: the whole set can be made of stainless steel with additional charges. | |||
Application | Suitable for powder, sesame etc. | |||
Features: | 1. The system can finish automatically all process, ie, feeding and measuring, filling and bag making, printing date and product output. 2. Auger filler, high efficiency, less broken material. 3. Save labor, less waste, easy operate and maintenance. 4. Screw dispenser measuring system. 5. The open door can be installed with alarm system, more safe. 6. PLC and touch screen is used to control. 7. The film is dragged by servo motor. | |||
Complete set | 1) KL-350D/420D/520D/720D main machine 2) Auger filler with screw dispenser 3) Spiral conveyor 4) One bag former - if different width of bag is required, additional bag former is required with additional charges 5) One set of screw dispenser- if big different width of bag is required, additional screw is required with additional charges 6) Finished product conveyor - If the client don't want, it can be removed. | |||
Packaging | l Film wrapped inside l Wooden case nailed outside l Wooden case can be fumigated or from fumigation | |||
