Sonostar Technologies Co., Limited
China Manufacturer with main products: Ultrasound Machine, B/W Ultrasound Scanner, Color Doppler Ultrasound, Ultrasound Bladder Scanner |

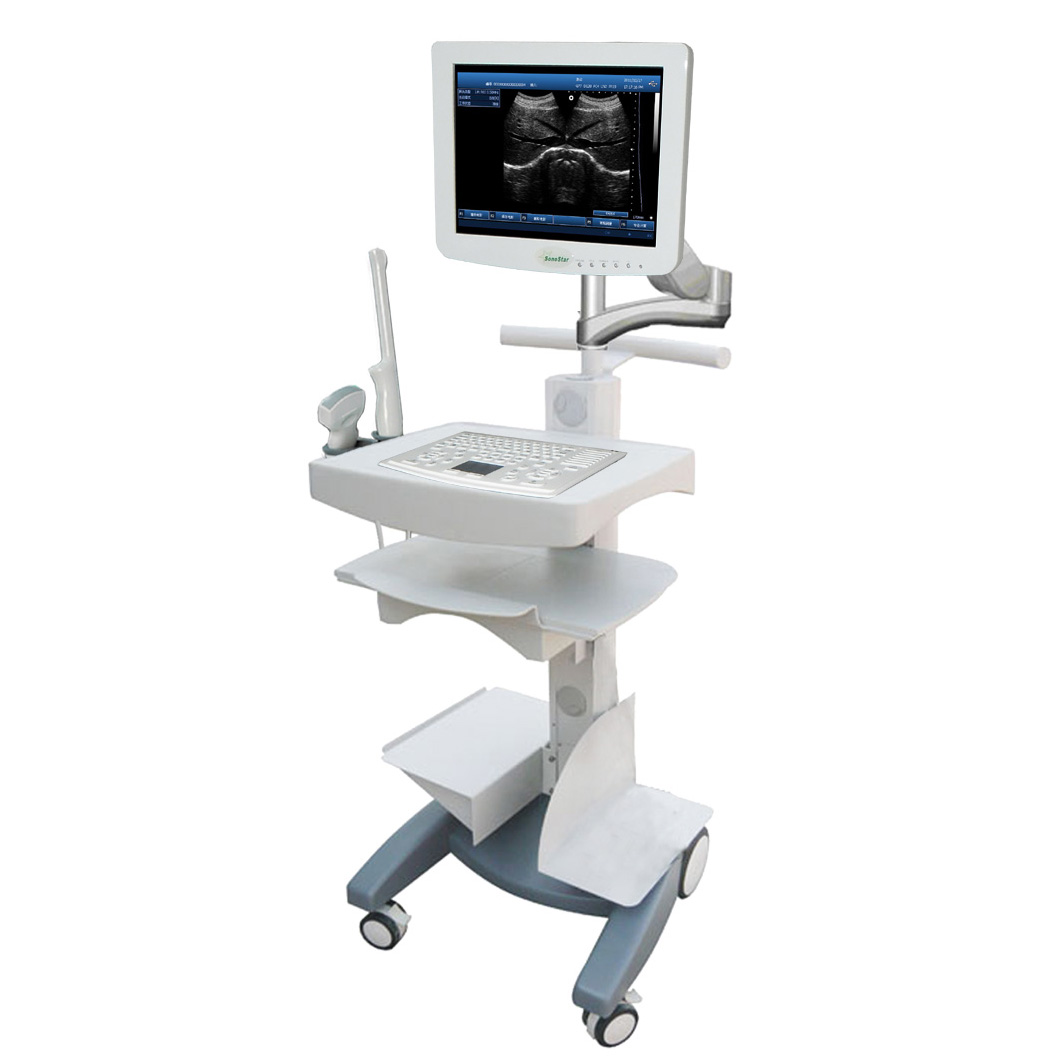

SS-100 Trolley B/W Ultrasoun Machine
| Supply Ability: | 200 Unit/Units per Month |
|---|---|
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Brand Name: Sonostar
- Model Number: SS-100
- Portable: No
- Warranty: 18 months
- Certification: ISO, CE
Specifications
Feature:
-Full digital imaging technology
-Crystal-clear Image
-Computer platforms, Abundant functions
-Powerful image and report management
-3D Image Function(optional)
-DICOM display and transfer
-250G large Storage volume
-Broadband Multi-frequency probes
-Compatible with USB laser/inkjet printers
-Pretty and new appearance
-15 inch touch screen color LCD monitor
-Silica gel backlight waterproof keyboard
-8 segment TGC, 16 step zoom
-Complete application software packages
-Can work with external battery(option)
-2 probe connector
-Can be fold, the transportation is convenient and lower freight
-Multiple language: English, French, German, Spanish, Russian, Italian, Portuguese, etc.
Specification:
-D-Maximum Scanning Depth: max.250mm
-Multi-frequency: 5 segment frequencies
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image gray scale: 256 level gray scale
-Cine Loop: max.1024 frames
-Scanning mode: B, 2B, B/M, M, 4B, 9B, ZOOM;
Real-time Zoom on B mode
-Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge;
enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
-Gain: gain: adjustable between 0-100dB;
Time gain control(TGC): 8 segment adjustment, B, M adjustment separately.
-Monitor: 15 inch touch screen color LCD monitor
-Supported output apparatus: U-Disk, Laser/ink printer, video printer, VGA
-Measurement and calculation(human):
B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode: heart rate, time, distance, slope and stenosis;
Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
Obstetric: gestation age, fetal weight, AFI;
Cardiology: LV, LV function, LVPW, RVAWT;
Urology: transition zone volume, bladder volume, RUV, prostate, kidney;
Small parts: optic, thyroid, jaw and face.
-Measurement and calculation(veterinary):
Cattle: BPD, CRL, TD; Horse: GA; Dog: GS; Cat: HD, BD;
Sheep: BPD, CRL, TD
-Image store: by 250G hardisk or USB disk
-Print: by USB laser/inkjet printers
-DICOM3.0, medical digital imaging and communication
-Probe Connector: 2
-Weight: Around 28kg
Standard Configuration:
·Host 1 unit
·Convex probe 1 pcs
·Ultrasound keyboard 1 pcs
·Computer keyboard 1 pcs
·Computer mouse 1 pcs
Optional:
·Linear, Trans-vaginal, Micro-convex, Rectal probe
·Laser/ink printer
·Video Printer
·3D imaging function
·Battery
