- Place of Origin: China (Mainland)
- Brand Name: New Baofeng
- Insulation Material: PVC
- Type: Low Voltage
- Application: Overhead
- Conductor Material: Aluminum
Hebei New Baofeng Wire & Cable Co., Ltd.
China Manufacturer with main products: Power Cable, Controlling Cable, Aerial Insulated Cable, High Voltage Power Cables, Bare Wire, Coaxial-Cable, Special Cable, Insulated Wire |

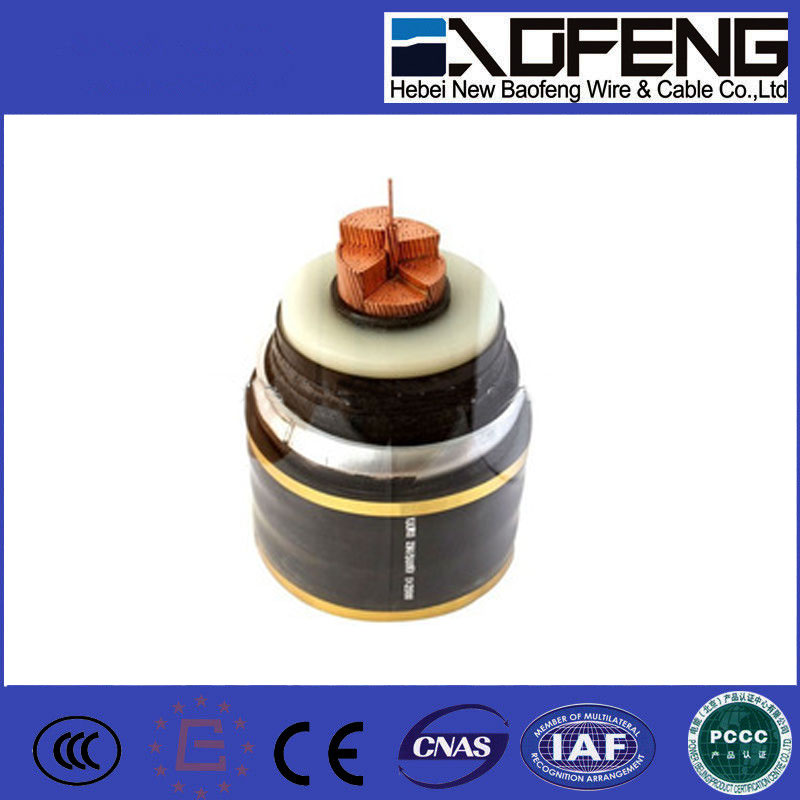

extra high voltage power station underground XLPE cable 500kv
| Supply Ability: | 10 Kilometer/Kilometers per Week |
|---|---|
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Other |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Hebei in China |
|---|
Quick Details
- Brand Name: NBF
- Model Number: Low Voltage
- Insulation Material: PVC
- Type: Low Voltage
- Application: Overhead
- Conductor Material: Aluminum
- Jacket: PVC
Specifications
Conductor Material:Aluminum
ConductorType:Stranded
Application:Overhead
Certification:CE
Export Markets:Global
| power cable |
Product Description:
1. Has passed CE, ISO, CCC, PCCC...Certificate
2. Sell well in Europe, America, Asia and Africa.
3. Standard GB, IEC, AS
The Aluminum Stranded Wire and Aluminum Conductor Steel-reinforced apply for electric transmission line overhead.
Type: LJ LGJ LGJF JL JLHA JL/G JLHA/G JL/LHA JL/LB JLHA/LB JG JLB
| Specification |
Cross-sectional mm 2 |
No. of single wire N |
Diameter | Weight kg/km | Rated tensile force kN | D.C. resistance of conductor at 20C Ω/km | |
|
Single wire mm |
Stranded conductor mm | ||||||
| 10 | 10 | 7 | 1.35 | 4.05 | 27 | 1.95 | 2.8633 |
| 16 | 16 | 7 | 1.71 | 5.12 | 43 | 3.04 | 1.7896 |
| 25 | 25 | 7 | 2.13 | 6.40 | 68 | 4.50 | 1.1453 |
| 40 | 40 | 7 | 2.70 | 8.09 | 109 | 6.80 | 0.7158 |
| 63 | 63 | 7 | 3.39 | 10.2 | 172 | 10.39 | 0.4545 |
| 100 | 100 | 19 | 2.59 | 12.9 | 274 | 17.00 | 0.2877 |
| 125 | 125 | 19 | 2.89 | 14.5 | 343 | 21.25 | 0.2302 |
| 160 | 160 | 19 | 3.27 | 16.4 | 439 | 26.40 | 0.1798 |
| 200 | 200 | 19 | 3.66 | 18.3 | 549 | 32.00 | 0.1439 |
| 250 | 250 | 19 | 4.09 | 20.5 | 687 | 40.00 | 0.1151 |
| 315 | 315 | 37 | 3.29 | 23.0 | 867 | 51.97 | 0.0916 |
| 400 | 400 | 37 | 3.71 | 26.0 | 1102 | 64.00 | 0.0721 |
| 450 | 450 | 37 | 3.94 | 27.5 | 1239 | 72.00 | 0.0641 |
| 500 | 500 | 37 | 4.15 | 29.0 | 1377 | 80.00 | 0.0577 |
| 560 | 560 | 37 | 4.39 | 30.7 | 1542 | 89.60 | 0.0515 |
| 630 | 630 | 61 | 3.63 | 32.6 | 1738 | 100.80 | 0.0458 |
| 710 | 710 | 61 | 3.85 | 34.6 | 1959 | 113.60 | 0.0407 |
| 800 | 800 | 61 | 4.09 | 36.8 | 2207 | 128.00 | 0.0361 |
| 900 | 900 | 61 | 4.33 | 39.0 | 2483 | 144.00 | 0.0321 |
| 1000 | 1000 | 61 | 4.57 | 41.1 | 2759 | 160.00 | 0.0289 |
| 1120 | 1120 | 91 | 3.96 | 43.5 | 3093 | 179.20 | 0.0258 |
| 1250 | 1250 | 91 | 4.18 | 46.0 | 3452 | 200.00 | 0.0231 |
| 1400 | 1400 | 91 | 4.43 | 48.7 | 3866 | 224.00 | 0.0207 |
| 1500 | 1500 | 91 | 4.58 | 50.4 | 4143 | 240.00 | 0.0193 |
| Delivery Detail: | according to the quantity |
|---|
ConductorType:Stranded
Application:Overhead
Certification:CE
Export Markets:Global
| power cable |
Product Description:
1. Has passed CE, ISO, CCC, PCCC...Certificate
2. Sell well in Europe, America, Asia and Africa.
3. Standard GB, IEC, AS
The Aluminum Stranded Wire and Aluminum Conductor Steel-reinforced apply for electric transmission line overhead.
Type: LJ LGJ LGJF JL JLHA JL/G JLHA/G JL/LHA JL/LB JLHA/LB JG JLB
| Specification |
Cross-sectional mm 2 |
No. of single wire N |
Diameter | Weight kg/km | Rated tensile force kN | D.C. resistance of conductor at 20C Ω/km | |
|
Single wire mm |
Stranded conductor mm | ||||||
| 10 | 10 | 7 | 1.35 | 4.05 | 27 | 1.95 | 2.8633 |
| 16 | 16 | 7 | 1.71 | 5.12 | 43 | 3.04 | 1.7896 |
| 25 | 25 | 7 | 2.13 | 6.40 | 68 | 4.50 | 1.1453 |
| 40 | 40 | 7 | 2.70 | 8.09 | 109 | 6.80 | 0.7158 |
| 63 | 63 | 7 | 3.39 | 10.2 | 172 | 10.39 | 0.4545 |
| 100 | 100 | 19 | 2.59 | 12.9 | 274 | 17.00 | 0.2877 |
| 125 | 125 | 19 | 2.89 | 14.5 | 343 | 21.25 | 0.2302 |
| 160 | 160 | 19 | 3.27 | 16.4 | 439 | 26.40 | 0.1798 |
| 200 | 200 | 19 | 3.66 | 18.3 | 549 | 32.00 | 0.1439 |
| 250 | 250 | 19 | 4.09 | 20.5 | 687 | 40.00 | 0.1151 |
| 315 | 315 | 37 | 3.29 | 23.0 | 867 | 51.97 | 0.0916 |
| 400 | 400 | 37 | 3.71 | 26.0 | 1102 | 64.00 | 0.0721 |
| 450 | 450 | 37 | 3.94 | 27.5 | 1239 | 72.00 | 0.0641 |
| 500 | 500 | 37 | 4.15 | 29.0 | 1377 | 80.00 | 0.0577 |
| 560 | 560 | 37 | 4.39 | 30.7 | 1542 | 89.60 | 0.0515 |
| 630 | 630 | 61 | 3.63 | 32.6 | 1738 | 100.80 | 0.0458 |
| 710 | 710 | 61 | 3.85 | 34.6 | 1959 | 113.60 | 0.0407 |
| 800 | 800 | 61 | 4.09 | 36.8 | 2207 | 128.00 | 0.0361 |
| 900 | 900 | 61 | 4.33 | 39.0 | 2483 | 144.00 | 0.0321 |
| 1000 | 1000 | 61 | 4.57 | 41.1 | 2759 | 160.00 | 0.0289 |
| 1120 | 1120 | 91 | 3.96 | 43.5 | 3093 | 179.20 | 0.0258 |
| 1250 | 1250 | 91 | 4.18 | 46.0 | 3452 | 200.00 | 0.0231 |
| 1400 | 1400 | 91 | 4.43 | 48.7 | 3866 | 224.00 | 0.0207 |
| 1500 | 1500 | 91 | 4.58 | 50.4 | 4143 | 240.00 | 0.0193 |
