| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | 1 main machine unpacked 2 electric box and rolls packed with plywood box |
Quick Details
- Voltage: 380V
- Model Number: RT90
- Brand Name: Reliantt
- Production Capacity: Dia.:10-273mm, thickness:0.5-10mm
Specifications

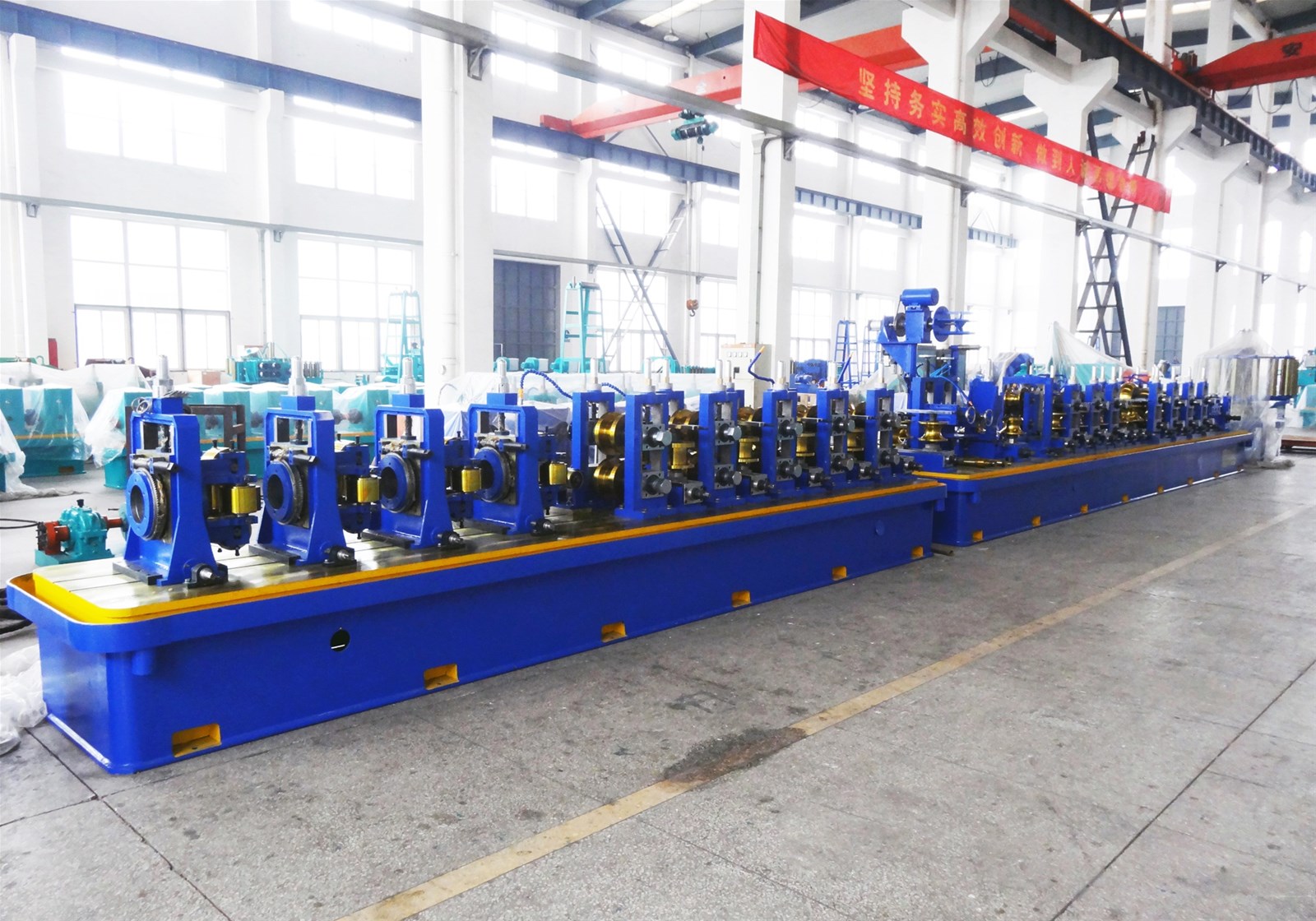

RT90 Enlarged Welded Pipe Mill which exported to Salvador.
This machine is including:
(1) Un-coiler (Hydraulic expand)
(2) Shear and Butt Welder
(3) Horizontal Accumulator

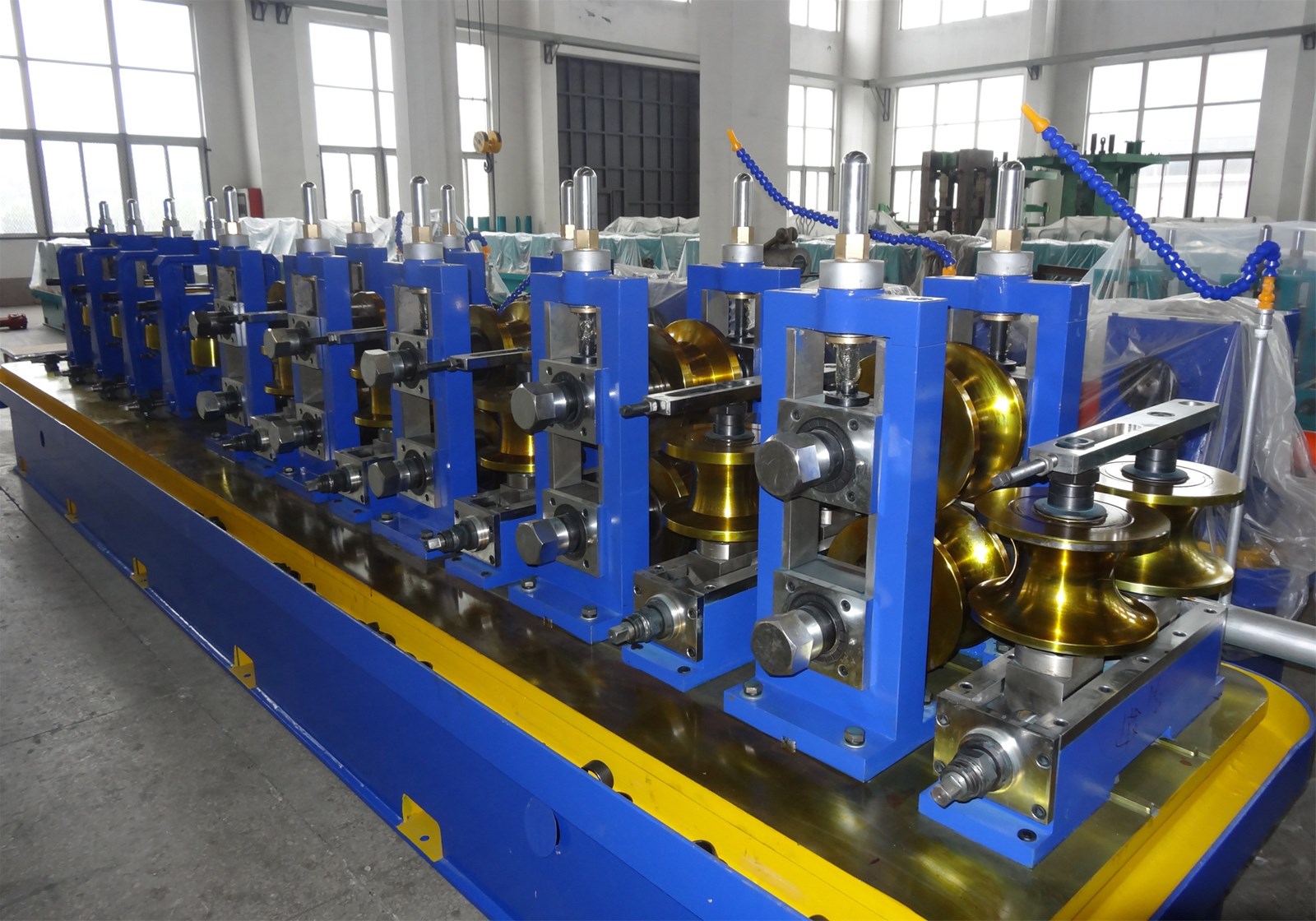

(4) Forming, Welding and Sizing mill
A) Feeding & Leveling device
B) Forming machine
C) Guiding, extruding, Welding & scraping device
D) One set of Cooling water tank

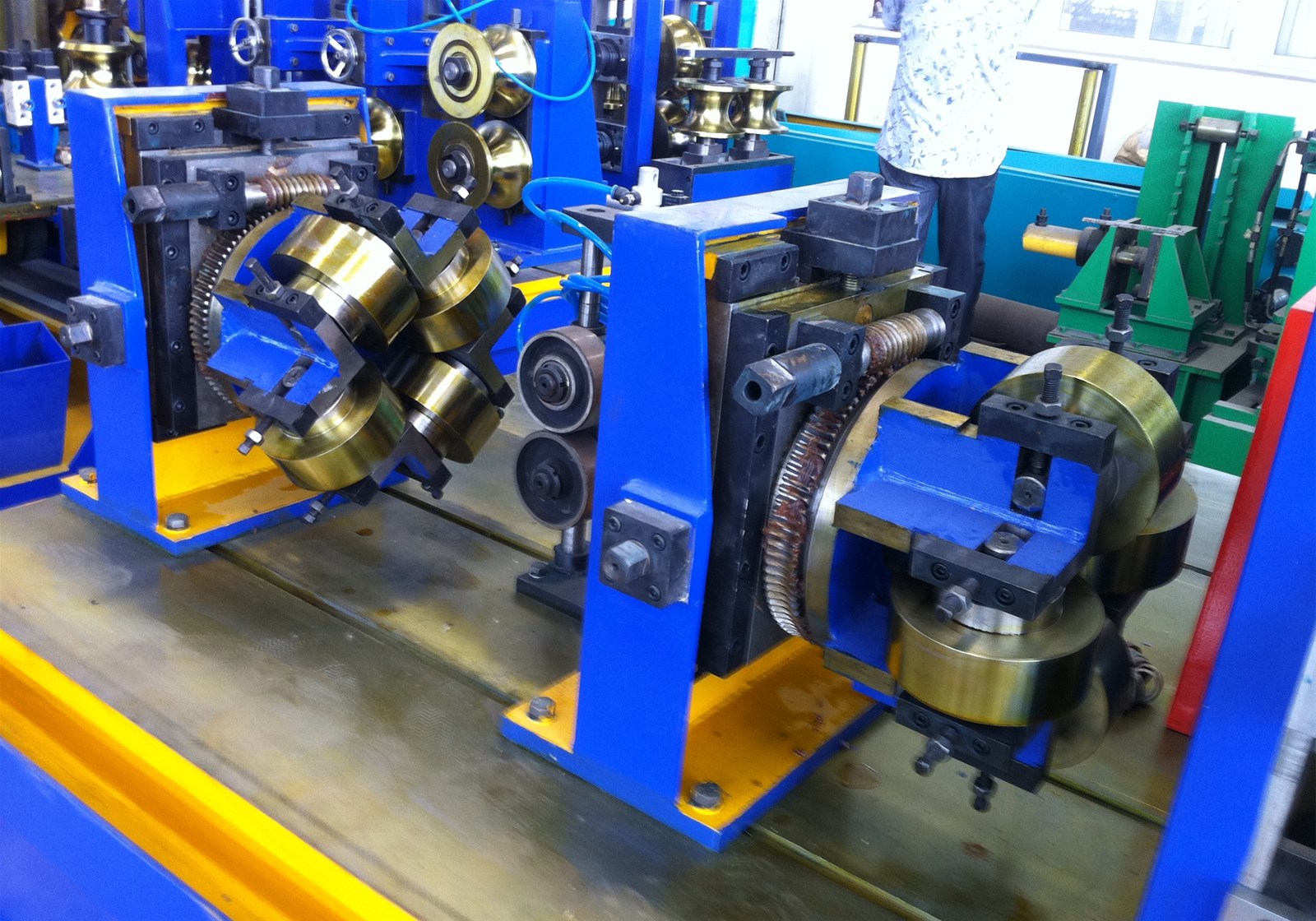

E) Sizing mill
F)MainDriving System

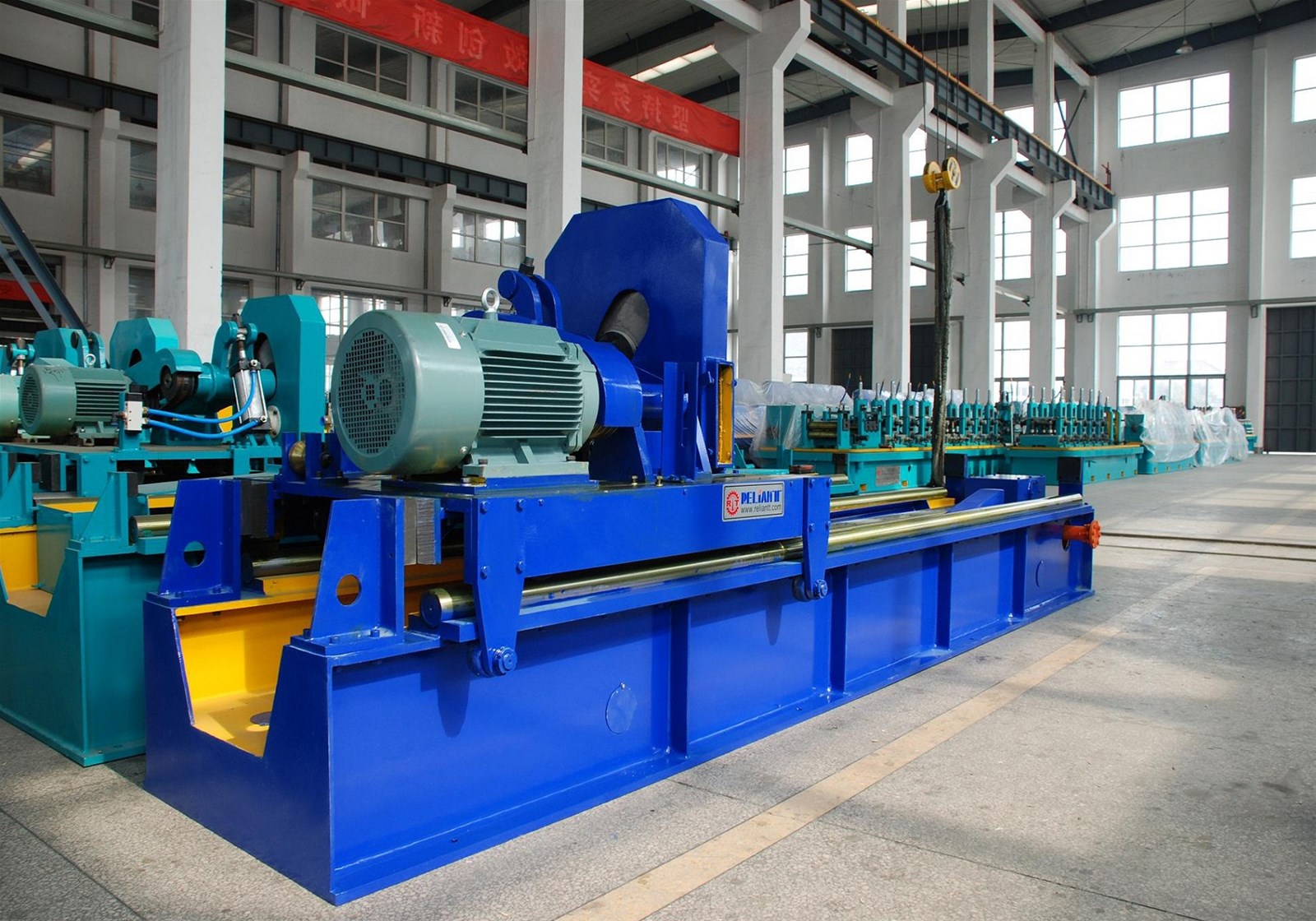

(5) Computer Cutting Saw (Circular Saw Cutting)
(6) Run out table
(7) SolidStateHF Electric
(8) Hydraulic System
(9) Electrical System
(10) Pneumatic System
|
Model |
RT28 |
RT32 |
RT50 |
RT60 |
RT76 |
RT90 |
RT115 |
RT165 |
RT219 |
RT273 |
|
Dia. of Tubes (mm) |
10-38 |
13-50.8 |
20-63.5 |
25-63.5 |
25-80 |
32-90 |
38-115 |
60-165 |
90-219 |
165-273 |
|
Thickness of Tube (mm) |
0.5-1.5 |
0.5-2.0 |
0.6-2.5 |
0.8-3.0 |
1.2-4.0 |
1.5-4.5 |
2.0-5.0 |
2.0-6.0 |
3.0-8.0 |
4.0-10.0 |
|
Welding Speed (m/min) |
30-80 |
30-90 |
30-90 |
20-80 |
20-70 |
20-60 |
20-60 |
15-50 |
15-50 |
15-40 |
|
Main Motor power (KW) |
45 |
110 |
160 |
185 |
200 |
110x2 |
160x2 |
200x2 |
250Kx2 |
250x1 185x2 |
|
HF Power (KW) |
100 |
150 |
200 |
250 |
300 |
400 |
400 |
500 |
600 |
800 |
