Double Layer Roll Forming Machine

Supply Ability:	200 Set(s) per Month
Shipping:	Shanghai port , delivery time: 90 days
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	1 main machine unpacked 2 electric box and rolls packed with plywood box

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: CE
Brand Name: Reliantt
Condition: New

Specifications

Double Layer Roll Forming Machine

Production Description

Double Layer Roll Forming Machine for E24 & Sinusoidal which exported to

El Salvador

Main Equipment

--Hydraulic system to expand coil inner hole

--Support arm equipped at the end of the main shaft

-- Taper wedge expand type

--Self-contained electric controller, out of control system of the complete line

-- Double roller Chain and Pinion

-- Coil car can move up/down and forward/backward

2.Entry Bench

-- Un-powered, Height Adjustable

3. Manual pre-shearing Device

-- un-powered, dUal Levelling;

4.Polythene Film-on Device for Profile E24, Aluminum Material

--Un-powered, with un-coil-rollers at double sides

-- with rubber shaft to film-on the film

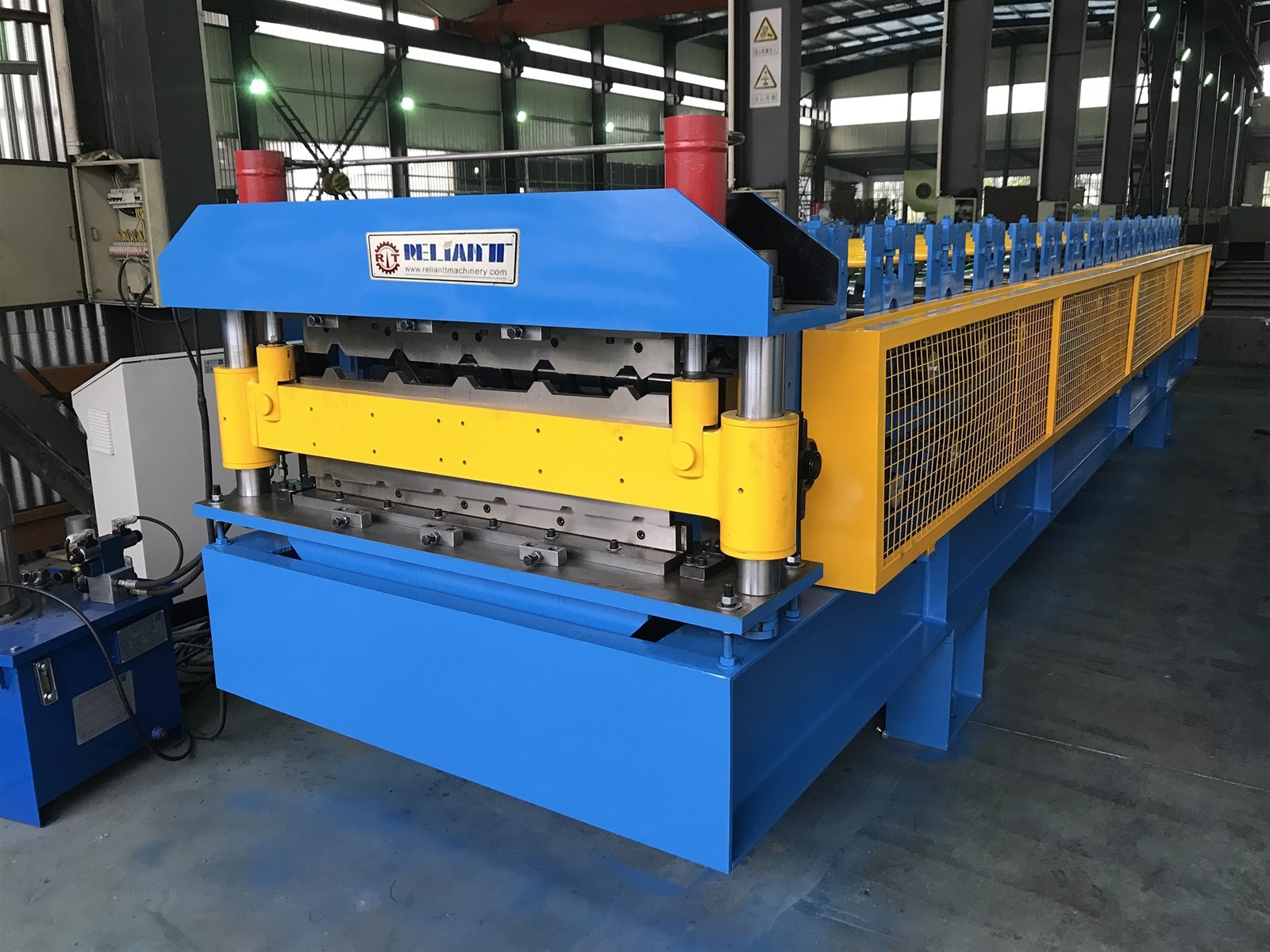

5. Double Layer Roll Forming Machine

-- GEar/Sprocket driving; Dual Levelling

-- Upper Level for E24 profile, 24-step to form

-- Lower Level forSinusoidalProfile, 22-step to form

-- Two encoders, one for upper level, the other for lower level

--the two levels can't be run at the same time

--Manual Clutch to switch the driven system

--Forming speed:Approx.12m/min

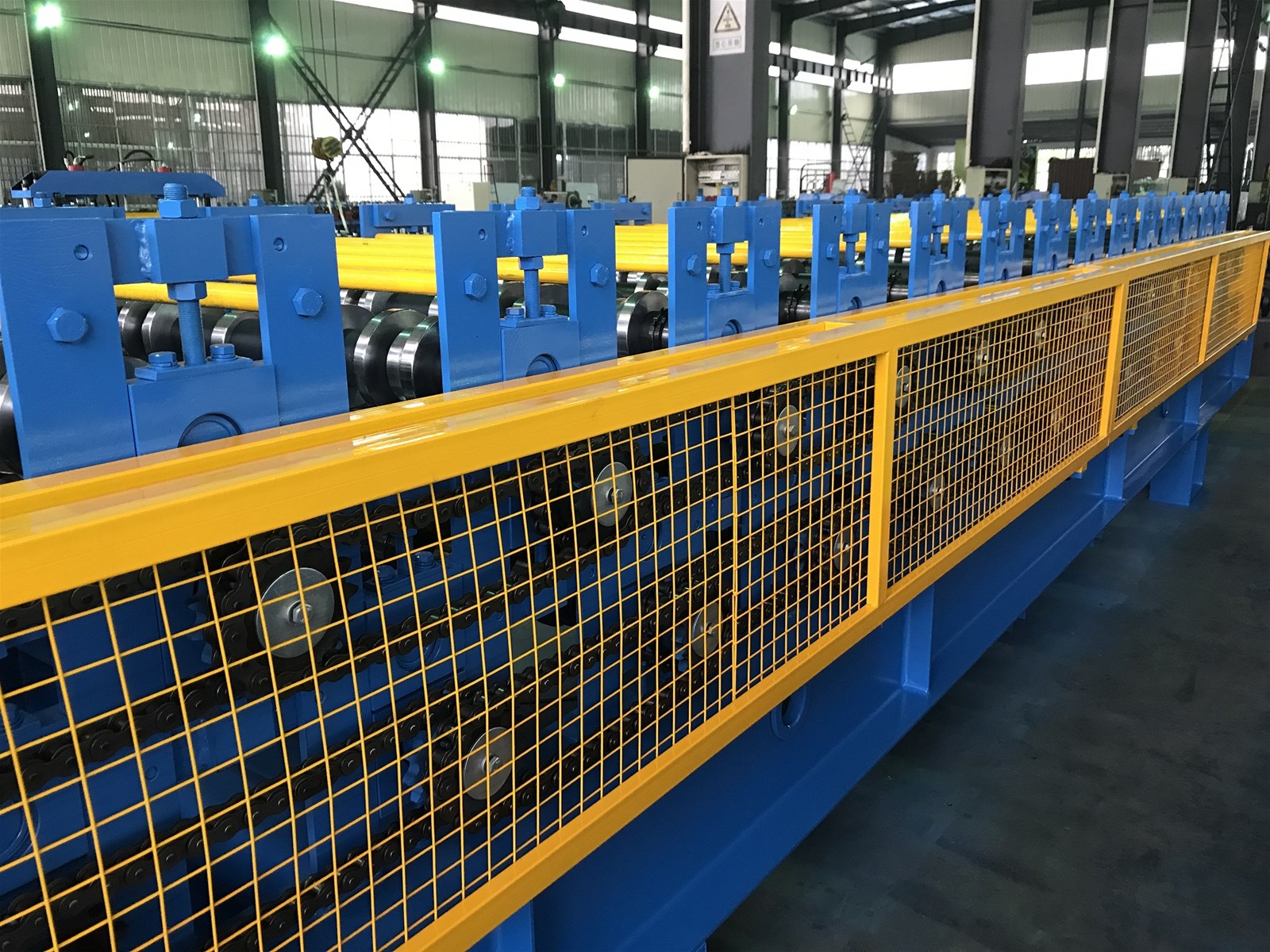

-- Protection Mesh Cover (full mesh type) above Roll-former to Avoid Hands Go Inside

6. Hydraulic Cutting Device

-- Stop to cut, Post cut, No blanking cut

--Two pairs of cutting tools

--Equipped with the lubrication cover in the moving parts of the cutting press.

7. PLC Control System

-- Control the quantity & cutting length automatically.

-- Control the switch action to run the different two profiles

-- Combined with:PLC, Touch Screen, Inverter (Siemens), Encoder (Omron), etc

-- Cut-to-length tolerance≤±2 mm

8. S480 Inkjet Printer including encoder holder and printer table

9. Product rack

-- Un-powered, Height Adjustable
