Corrugated, Sinusoidal Roll Forming Line

Supply Ability:	200 Set(s) per Month
Shipping:	Shanghai Port , delivery time: 90 days
Payment Terms:	L/C, T/T

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	1 main machine unpacked 2 electric box and rolls packed with plywood box

Quick Details

Corrugated Sinusoidal Roll Forming Line

Production Description

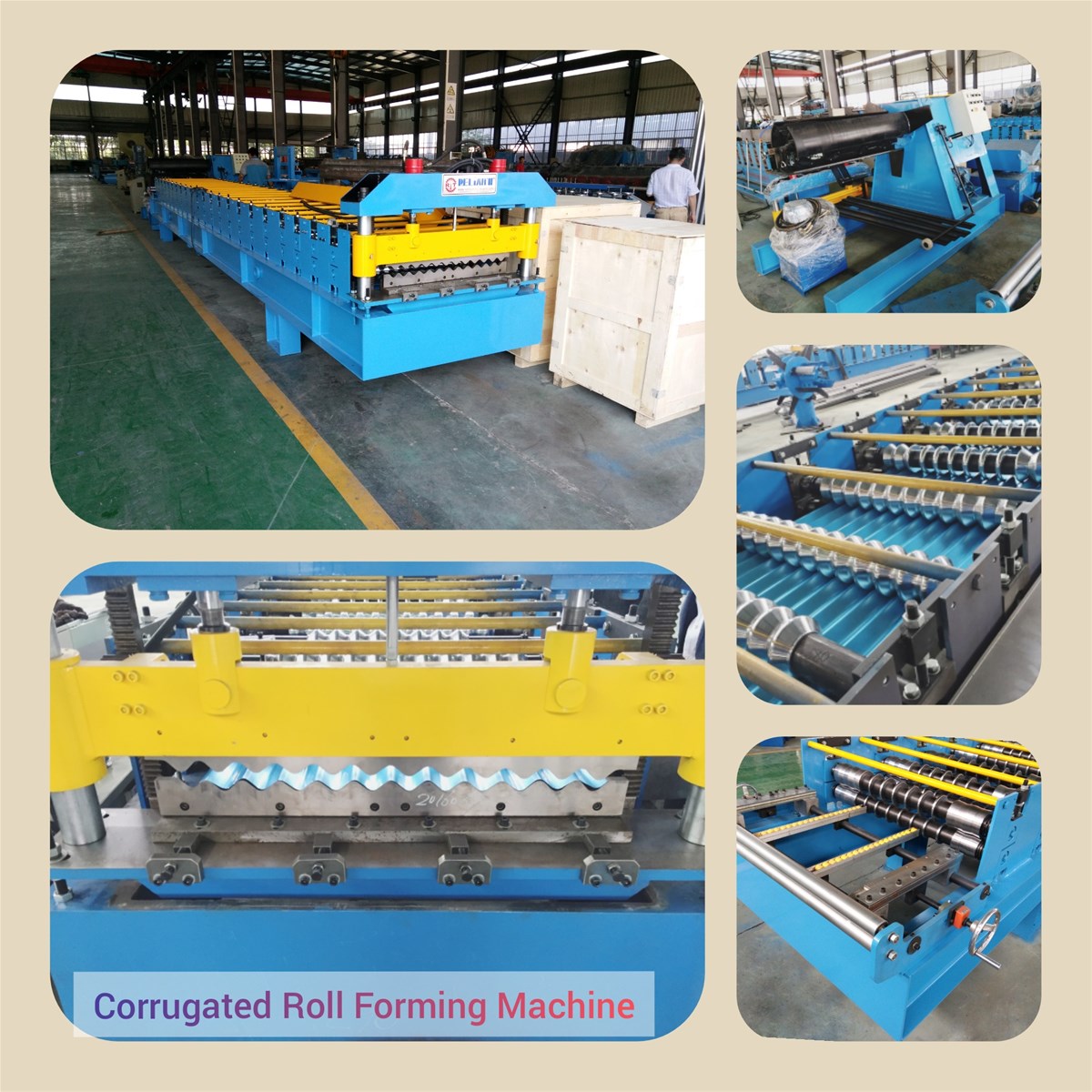

Sinusoidal Cold Roll Forming Machine (Corrugate)Which exported to El Salvador

Main Equipment

--Hydraulic system to expand coil inner hole

--Support arm equipped at the end of the main shaft

-- Taper wedge expand type

--Self-contained electric controller, out of control system of the complete line

-- Double roller Chain and Pinion

-- Coil car can move up/down and forward/backward

2.Entry Bench

-- Un-powered, Height Adjustable

3. Manual pre-shearing Device

-- un-powered

4. Roll Forming Machine

-- GEar/Sprocket driving

--Manual Clutch to switch the driven system

--Forming speed:Approx.12m/min

-- Protection Mesh Cover (full mesh type) above Roll-former to Avoid Hands Go Inside

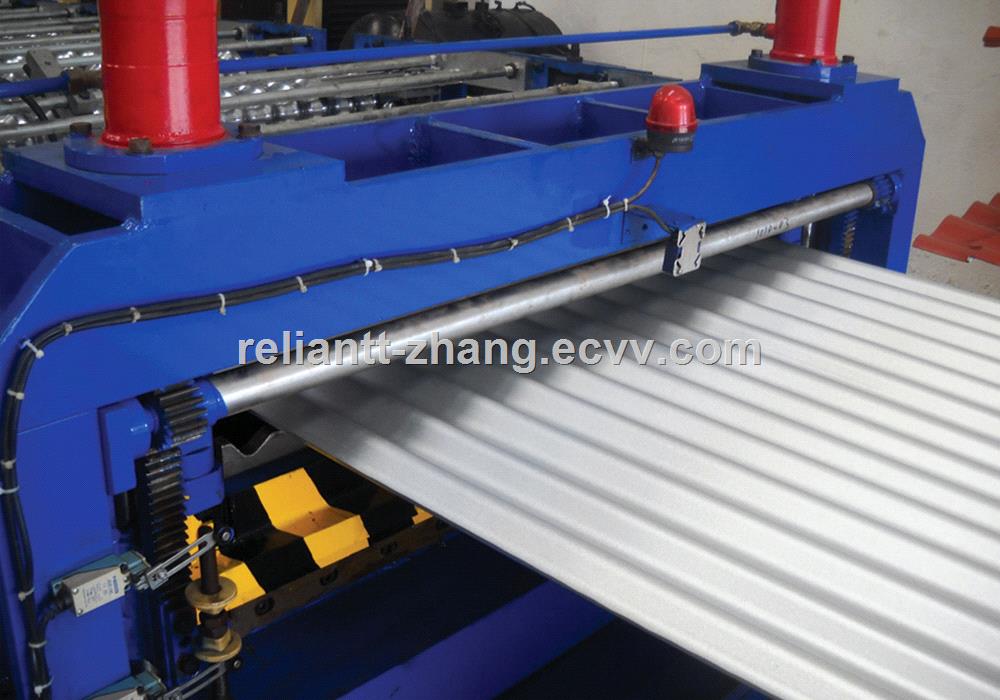

5. Hydraulic Cutting Device

-- Stop to cut, Post cut, No blanking cut

--Equipped with the lubrication cover in the moving parts of the cutting press.

6. PLC Control System

-- Control the quantity & cutting length automatically.

-- Combined with:PLC, Touch Screen, Inverter (Siemens), Encoder (Omron), etc

-- Cut-to-length tolerance≤±2 mm

7. S480 Inkjet Printer including encoder holder and printer table

8. Product rack

-- Un-powered, Height Adjustable
