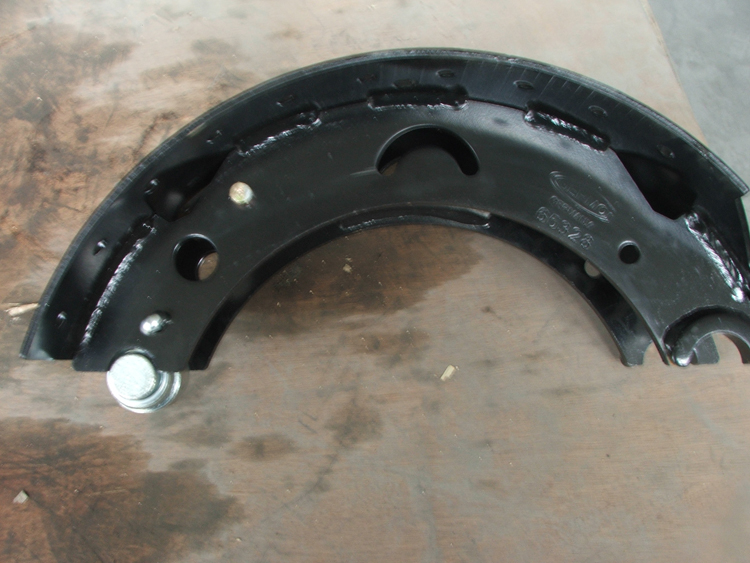

Brake Shoe BPW200 Old

Supply Ability:	150,000 Piece/Pieces per Year
Shipping:	Sea
Payment Terms:	T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Packing: fumigation-free pallet or carton

Quick Details

Brand Name: ITB
Model Number: BPW200

Specifications

Specification: 200mm width with 20Rivets
Material:high quality carbon steel
Heat treatment:Induction quenching
Hardness:HRC25-35
Surface treatment:Electrophoresis Coating,spray coating
Characteristics:Strong corrosive,resistance and excellect braking performance.
Packing: fumigation-free pallet or carton
Process:Steel plate--Punching--Milling--Welding--Drilling--Induction quenching--Electrophoresis coating--Inspcetion--Restriking--Packing.
Packing: Pallets for free fumigation covered with placstic

Feature:
Weld detail:Carbon Dioxide Gas Arc Welding to guarantee strength,no cracked or weakened welds,no distortion of the shoe webs.

Cam and anchor detail:
Induction hardended cam and anchor for long term durability and life.Hardness up to HRC35-45.No wear to the pin recess prevents lateral movement.

Shoe platform detail:
No corrosion or distortion to the shoe platorm provides optimum lining security and geometric operation helping reduce brake noise.

Rivet hole detail:
No damage,elongation or ovality of the rivet hole reducing the risk of loose rivets due to bad fitting.
