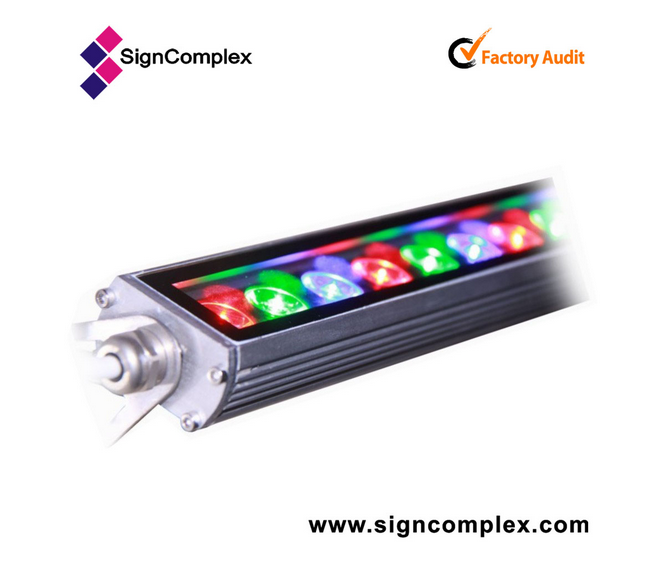

High power RGB LED Wall Washer 72W

Supply Ability:	50,000 Piece/Pieces per Month
Shipping:	5-10 working days after we confirm payment
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

LED High Power New Wall Washer (LUV-L204)

Price:

Min. Order:10 Pieces
LED Wall Washer Lamp 10W/15W 2700-6500K/RGBW, S...

Price:70.00 USD/Unit

Min. Order:1 Unit
led wall washer light

Price:

Min. Order:3 Pair

Product Details

Place of Origin:	Guangdong in China
Packaging Details:	in exporting special carton --Gross weight: 3.24 KG --White box size: 1058 x 92 x 87 mm --Package si

Quick Details

LED Light Source: Edison
Warranty(Year): 3
Input Voltage(V): DC24
Lamp Power(W): 72
Lamp Luminous Flux(lm): 2200
CRI (Ra>): 80
Color Temperature(CCT): RGBW
Working Temperature(℃): -20 - +40
Working Lifetime(Hour): 50,000
Lamp Body Material: Aluminum Alloy
IP Rating: IP65
Certification: CE,EMC,LVD,ROHS
Brand Name: Signcomplex
Model Number: XL-072-D3-RGBW-01

Specifications

High power RGB LED Wall Washer 72W
Features

--No Mercury and other hazardous materials,
ful ly RoHS.compl iant and CE Certified. Electrical specifications

--Work with RGBW LED Control ler with four or more channels.

--Durable and completely corrosion resistance
--Good heat dissipation performance.
--Silicon rubber seal ing technology securing perfect waterproof performance, IP: 65.

--High temperature resistant, anti-aging.

--The unique optical PMMA lens ensure the brightness maintenance and projection effect 3mm tempered glass cover, strong protection and good optical function.

--Exquisite appearance.

--Housing: a-al loy with extrusion technology and oxidation treatment.

--Degree of homogeneity: >80%
--Service l ife over 30000 hours
-- Net weight: 2.96 KG
--Gross weight: 3.24 KG
--White box size: 1058 x 92 x 87 mm
--Package size: 1075 x 300 x 294 mm (9PCS per box)
Applications:
Mainly used as signboard, building, square decoration and lighting. Also used in park garden grass walking street parking lot etc And it can be used in government lighting construction commercial subway flyover and building's flood lighting

Specifications

Model #	color	CCT or Wavelength	LED Type	Lumen(lm) (±10%)	Beam angle	Current(A) (±10%)	Power(W) (±10%)	Voltage (V)	PF	Projection distance(m)	Weight (Kg)
XL-072-D3-RGBW-01	w	5500-7000K	prolight 4 in 1 RGBW LED	1000	25/45	3	72	24V DC	1	10-15	2.1
	R	632nm		250
	G	523nm		900
	B	458nm		170
	RGBW	/		2200
