Home >Products Catalog > pole line hard ware/pole line fitting > clamp - pole line fitting

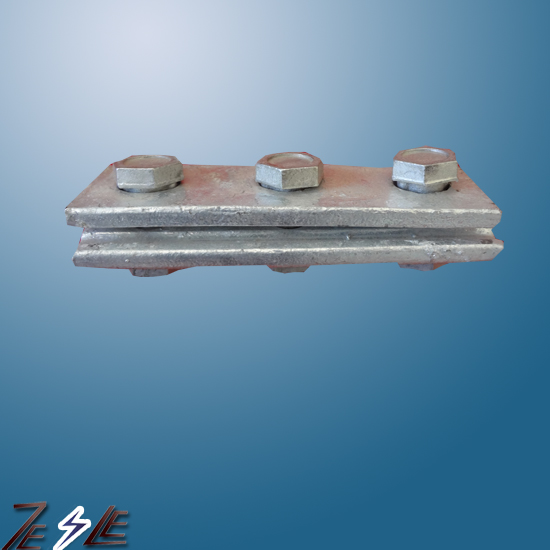

clamp - pole line fitting

FOB Price:	0.88 - 1.20 USD/Piece
Supply Ability:	100,000 Piece/Pieces per Week
Shipping:	Tianjin xingang port By sea
Payment Terms:	T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Stainless steel bathroom glass clamp (fitting)

Price:

Min. Order:
Cooper & Aluminum Cu-Ai Specific Form Paral...

Price:0.60-20.00 USD/Acre

Min. Order:1,000 Acres
Hose Clamp

Price:

Min. Order:
clamps

Price:1000.00-1000000.00 USD/Piece

Min. Order:500 Pieces
High Quality Alligator Clamp

Price:0.01-2.00 USD/Piece

Min. Order:1,000 Pieces
Sanitary Stainless Steel Heavy Type 13MHH Singl...

Price:10.00-100.00 USD/Piece

Min. Order:1 Piece

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	by Cartons

Quick Details

Brand Name: Tele-power
Model Number: M16
size: according to your drawing

Specifications

Pole line fitting Dimensions:

The dimensions on the drawings are the final dimensions after the hot dip galvanization. The design of the fitting is indicative; however the mentioned dimensions on the drawings are the critical ones.

Pole line fitting GALVANIZATION

The fitting shall be delivered hot dip galvanized according to the following specifications:

· The Zinc of the Pole line fitting that shall be used shall have the quality of minimum category prime western according to the category Zn 98.5 according to ISO-1461.

· Then washed out with water and then flux treated and dried out.

· The hot dip galvanization shall be made in a Zinc bath of temperature 450°C and of Zn-composition min. 98,5%.

· The galvanization thickness of the Pole line fitting shall be in average 80m thick! On an isolated piece or on a small part of the surface the thickness can be a little lower, however on all pieces and on all surfaces the minimum thickness shall be 78μm and the average weight in relation to the galvanized area shall be 610 gr/m².

· The pieces of the Pole line fitting shall be after HDG free from black stains, enclosures of dirt, knobs, bubbles or any other surface defects. The HDG shall be smooth and uniform in the entire piece without any spots with too small or too big galvanization thickness otherwise the pieces will be rejected.

· The galvanization shall stick very well on the steel structure; it shall not be removed as a film but shall be as one with the steel body

Pole line fitting Testing:

The fitting shall be fixed in a mechanical testing device as similar as possible with the assembly later during use

Pole line fitting PACKING:

All materials of the Pole line fitting shall be packed in wooden / bags cases of maximum weight of every wooden box 25 kg. The wooden cases shall be suitable for the transport of the pieces without damaging the galvanization, and shall allow air to circulate and the used wood shall be completely dry in order to avoid any corrosion of the fitting.
