CBB60 film capacitor

  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

  • Brand Name: CSF/SAIFU
  • Model Number: CBB60
  • Type: Polypropylene Film Capacitor
  • Application: AC / Motor
  • Package Type: Through Hole
  • Capacitance: 1~60 uF
  • Rated Voltage: 200~660VAC
  • Operating Temperature: 40 / 70 / 21,40 / 85 / 21

Specifications

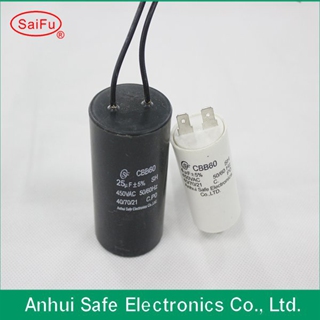

CBB60 AC Capacitor

Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for washers and high efficiency compressors of refrigerators etc.

Feature of CBB60 capacitor

The capacitor takes heavy-edge metallized Al/Zn PP film as electrodes and dielectric.

The ac capacitor 's components are sealed with flame-retardant epoxy resin.

The washing machine capacitor has cylindrical outline with high moisture resistance and stability.

Capacitor Specification

Reference standards

GB/T 3667.1( IEC60252-1)

Climatic category

40 / 70 / 21,40 / 85 / 21

Class of operation

Class B (10000h)    Class C (3000h)

Class of safety protection

P0

Voltage range

200~500VAC

Capacitance range

1~60uF

Capacitance tolerance

+/- 5% , +/- 10%,+/- 15%

Dissipation factor

2 x10-3 (100Hz,20°C)

Test voltage terminal to terminal  UTT

2 Un for 2 seconds

Test voltage terminal to case UTC

(2Un+1000)VAC or 2000VAC- 50Hz for 60 seconds

Insulation Resistance

>=3000s (100Hz,20°C,1min)

Capacitor Dimensions(mm)

Rated voltage(VAC)

Nominal capacitance(uF)

  Size(mm)

 D

 H

200,250,370,

400,440,450,600

,700,1200

1,1.2,1.5,2,2.5,3,3.5,4,4.5,

5,5.5,6,6.5,7,8,10,10.5,11,

11.5,12,15,16,20,25,30,35,

40,45,50,55,60,

12+6, 10+5.5, 13+6,…

 30,32,35,40,  41,43,45,46,  50



  47,57,65,73,80,

  84,85,98,105,110

Note:1.Terminal leads are wires or 250# (187#) single (dual) tab(s).
          2.Other dimension serials can be specified in pursuance of customer's request.
