Quick Details

· Model: MPL160

· Applications: Upload clamping plate

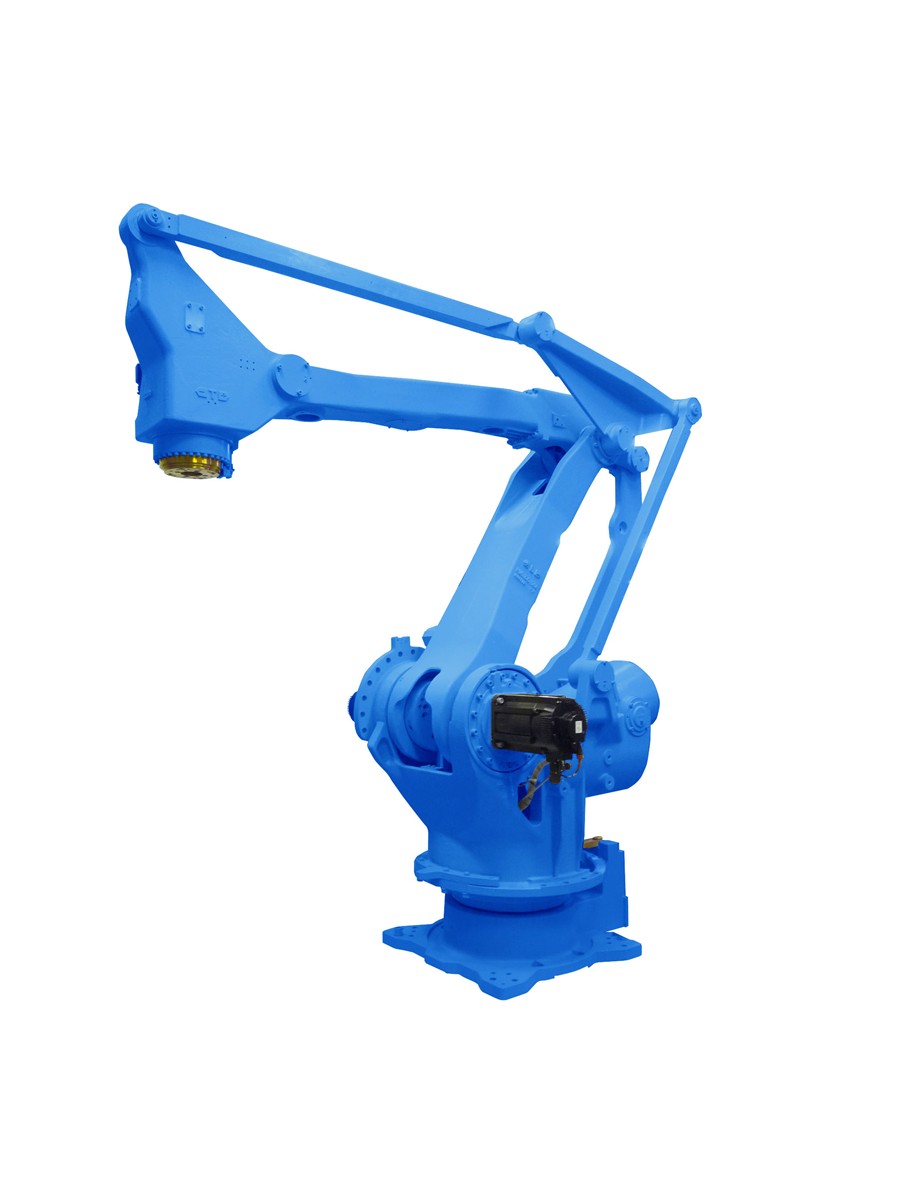

Palletzing robot with a 160kg payload

Maximun palletzing capacity 1:1650 cycles/h

Cables and hoses are internally routed through the hollow wrist for easy handling

The Motoman-MPL100,MPL300,MPL500 and MPL800 are also available

· Features

1.SAVING SPACE AND ENERGY

a. Higher speed, higer efficiency.

b. Smaller roborts, high precision

2.Working normally in bad condition

a. Water-proof, dust-proof structure(IP67)

3.Simple maintenance and tested

a.Teaching programme show the failure content,reason and strategy when alarming.

b.Shorten changing time of electrical parts and repairing time.

4. Easily operation

a.Teaching programme shows input and output, enhance efficiency.

b. Simulation of robot action

· Parameters

Application	Upload clamping plate
Structure and controlled axes	Verticaly articulated, 4°of freedom
Repeatitive positioning accuracy	±0.5mm
Payload	160 kg
Approx. Weight	1700 kg
Controller	DX100
Manipulator	Motion Range	Maximum Speed
*S-axis(Lifting1 Turning2)*	-180°~ +180°	2.44 rad/s(376°/s)
L-axis(Lower arm)	-45°~ +90°	2.44 rad/s(377°/S)
U-axis(Upper arm)	-120°~ +15.5°	2.44 rad/s(379°/S)
R-axis(Wrist Roll)	-	-
B-axis(Wrist Pitch/yaw)	-	-
T-axis(Wrist Twist)	-360°~ +360°	5.32rad/s(382°/s
