Jiangsu Sunkoo Machine Tech Co., Ltd.
China Manufacturer with main products: PTFE Extruder, Plastic Extrusion, PTFE Rod, Plastic Extruder, PTFE Machine, Plastic Extrusion Companies, Extruded Tube, PTFE Coating |

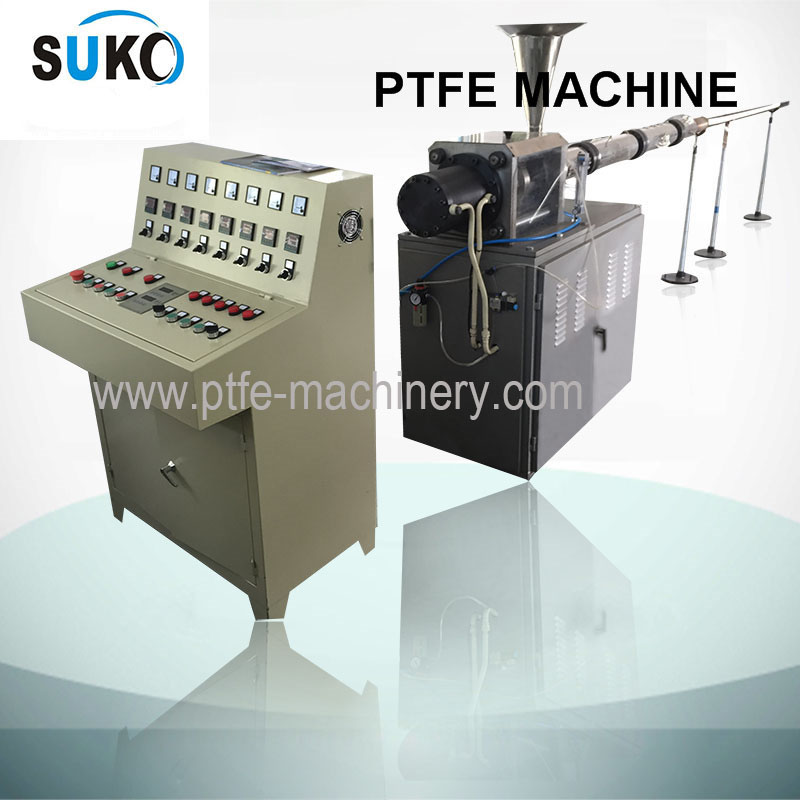

Teflon PTFE Tube Single-Screw RAM Extruding Machine
| Supply Ability: | 50 Unit(s) per Year |
|---|---|
| Shipping: | 30 days after confirmed |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | wooden box |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Power(W): 15KW
- Brand Name: JIANGSU SUNKOO
- Application: Pipe
- Condition: New
- Certification: CE , ISO
- Weight: 1320KGS
- Dimension(L*W*H): 800mm*1200mm*2580mm
- Voltage: 380V
- Model Number: PFG150
- Automatic Grade: Semi-automatic
- Screw Design: Single-screw
Specifications
RAM Extruder for PTFE Tube(20-150mm)
PTFE RAM extruder line is able to Extrude PTFE/Teflon tube which dia from 20mm to 150mm.
the automatic production line is computerize controll, which is really Easy to operate.Meanwhile,
the Plastic Teflon extrusion machine is advance Designed, high output, low Energy consumption,
Long-life, and also our Professional Engineer is available to offer Overseas after sale service. the
Extrusion machine Had has continue improved in past 12 years with high quality and stable
Operation.
RAM extrusion machine for Teflon PTFE Tube
the China vertical PTFE RAM Extruder is designed with 2 pressure plates, so the Ream is affected
Via a slid pressure plate. the China tube RAM extruder is equipped with two hydraulic cylinders.
the main cylinder serves to move the RAM; the additional cylinder serves for Retracting the
Mandrel. Base plate and dosing tray are water-cooled.the PTFE Molded powder is feed into the
Rotating Hopper Via an exact working Powder dosing device, controlled by a level Indicator. by
Means of a rotating Blade the powder is wiped uniformly into the cavity of the mould.
Range of diameter PTFE Extrusion 20 to 150 mm, Heating zones 5 zones
the complete electrical control is laterally fastened at Tube RAM extrusion. with A PC touch screen
pAnel all speeds and temperatures can be programmed. Electronics contain the Necessary
AutomaticControllers for speeds and Temperatures. 4-6 temperature regulators are contained
in the plant,Four for the Extruding PTFE and one automatic controller for a mandrel heating
Element. the Maximum output speed of PTFE extrusion depends on: PTFE Material, outside
PTFE tube Diameters and PTFE product heating length.
PTFE Equipment Warranty: according to our standard terms: 12months
Technical Data
| Description Model No. | Machine model PFG-150 |
| Plastic Extruder | PTFE Tube |
| Power | 15 kw |
| Min - Max OD | 25mm-150 mm |
| Tolerance THK | 0.1-0.2 mm |
| Length | Unlimited |
| Production Per Hour | 7-14 kg |
| Electricity Consumption Per hour | 1.2 kw |
| Weight of the Machine | 1320 kg |
| High of the Machine | 2580 mm |
| Floor area of the Machine | 3.5 M2 |
| Warrenty for Parts | 1 Year |
| Machine Gurantee Period | 1 Year |
| Free Spares | 1 set |
| Deliver LT | 30 Days |
We
Are leading of PTFE equipment in China with 10+ year experience. Expert
Manufacture of PTFE ROD ROM Extruder, TUBE RAM Extruder and SHEET Mould press
Machine, Compress Mould for Tube and Rod, PTFE film Skiving machine LINE, PTFE
Paste extruder for hoses. Machine has been export to USA, Korea, India,
Philippines, Indonesia, Malaysia etc.
