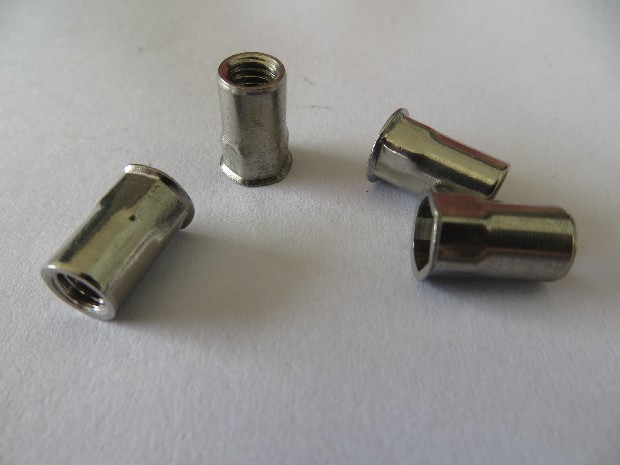

China stainless steel small countersunk head half hexagon rivet nuts/ China stainless steel small countersunk head half hexagon insert nuts
[Product description]
Insert nuts in a foreign country is known as the "Gospel of thin board connection technology," It changed the old way of traditional crafts, when installing components on the plate without the tapping, no weld nuts, with strong, beautiful, convenient, fast characteristics, can be widely used in the assembly of automotive, aviation, railway, refrigeration, elevators, switches, instruments, furniture, decoration and electrical and light industrial products.
[Head type]
1. flat head
2. countersunk head
3. small countersunk head
[Column type]
1. park rod type
2. groove
3. hexagonal (semi-hexagonal)
[Column type]
Carbon steel, aluminum, stainless steel etc.
[Product specifications]
1. Metric specification sheet
|
SIZE |
D |
e |
h(ref.) |
|
M -0.03 -0.20 |
S ±0.30 |
K ±0.20 |
L ±0.30 |
|
|
M1 |
+0.15 +0.05 |
||||||||
|
LGB.SM4hL |
M4 |
0.5~2.0 |
6.5 |
6 |
6 |
6.75 |
0.5 |
10.0 |
|
|
LGB.SM5hL |
M5 |
0.5~2.5 |
8.0 |
7 |
7 |
8.0 |
0.6 |
12.0 |
|
|
LGB.SM6hL |
M6 |
0.5~3.0 |
9.5 |
9 |
9 |
10.0 |
0.6 |
14.5 |
|
|
LGB.SM8hL |
M8 |
0.5~3.5 |
10.0 |
11 |
11 |
12.3 |
0.6 |
16.5 |
|
|
LGB.SM10hL |
M10 |
0.5~3.5 |
12.5 |
13 |
13 |
14.3 |
0.80 |
23 |
|
2. Inch specifications sheet
|
d |
s |
HOLE SIZE +0.15 -0.00 |
HD ±0.10 |
HH ±0.0> |
L ±0.15 |
D MAX |
IL MAX |
|
6-32UNC |
.020-.080 |
.2520 |
.390 |
.030 |
.420 |
.248 |
.305 |
|
6-32UNC |
.080-.130 |
.2520 |
.390 |
.030 |
.470 |
.248 |
.305 |
|
8-32UNC |
.020-.080 |
.2520 |
.390 |
.030 |
.420 |
.248 |
.305 |
|
8-32UNC |
.080-.130 |
.2520 |
.390 |
.030 |
.470 |
.248 |
.305 |
|
10-24UNC |
.020-.130 |
.2969 |
.415 |
.030 |
.475 |
.296 |
.315 |
|
10-24UNC |
.130-.225 |
.2969 |
.415 |
.030 |
.585 |
.296 |
.315 |
|
10-32UNF |
.020-.130 |
.2969 |
.415 |
.030 |
.475 |
.296 |
.315 |
|
10-32UNF |
.130-.225 |
.2969 |
.415 |
.030 |
.585 |
.296 |
.315 |
|
1/4-20UNC |
.027-.165 |
.3898 |
.500 |
.030 |
.580 |
.3858 |
.380 |
|
1/4-20UNC |
.165-.260 |
.3898 |
.500 |
.030 |
.680 |
.3858 |
.380 |
|
5/16-18UNC |
.027-.150 |
.5312 |
.685 |
.035 |
.690 |
.530 |
.470 |
|
5/16-18UNC |
.150-.312 |
.5312 |
.685 |
.035 |
.805 |
.530 |
.425 |
|
3/8-16UNC |
.027-.150 |
.5312 |
.685 |
.035 |
.690 |
.530 |
.470 |
|
3/8-16UNC |
.150-.312 |
.5312 |
.685 |
0.35 |
.805 |
.530 |
.420 |
|
1/2-13UNC |
.063-.200 |
.6875 |
.865 |
.047 |
1.150 |
.685 |
.850 |
|
1/2-13UNC |
.200-.350 |
.6875 |
.865 |
.047 |
1.300 |
.685 |
.850 |
|
1/2-13UNC |
.350-.500 |
.6875 |
.865 |
.047 |
1.450 |
.685 |
.860 |
