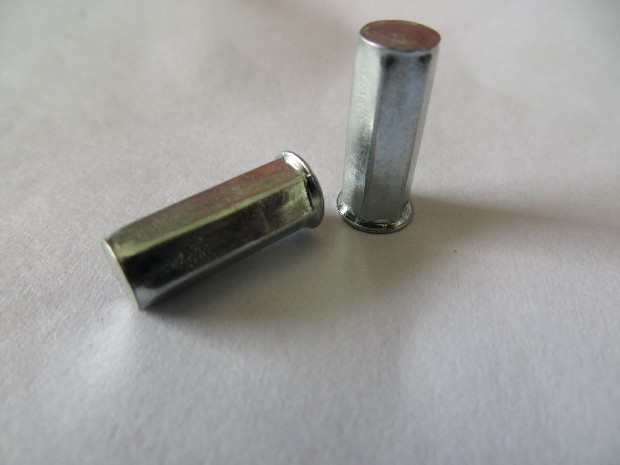

China carbon steel(iron) Galvanization small countersunk head hexagon blind rivet nuts
| FOB Price: | 0.10 - 0.80 USD/Piece |
|---|---|
| Supply Ability: | 50,000 Piece/Pieces per Day |
| Payment Terms: | L/C |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Brand Name: yinglai
- material: stainless steel/ carbon steel
- specification: M3-M12 / UNC6-32 to UNC1/2-13
Specifications
China carbon steel(iron) Galvanization small countersunk head hexagon closed insert nuts/ China carbon steel(iron) Galvanization small countersunk head hexagon waterproof blind insert nuts/ China carbon steel(iron) Galvanization small countersunk head hexagon closed rivet nuts
[Product description]
Insert nuts in a foreign country is known as the "Gospel of thin board connection technology," It changed the old way of traditional crafts, when installing components on the plate without the tapping, no weld nuts, with strong, beautiful, convenient, fast characteristics, can be widely used in the assembly of automotive, aviation, railway, refrigeration, elevators, switches, instruments, furniture, decoration and electrical and light industrial products.
[Head type]
1. flat head
2. countersunk head
3. small countersunk head
[Column type]
1. park rod type
2. groove
3. hexagonal (semi-hexagonal)
[Column type]
Carbon steel, aluminum, stainless steel etc.
[Product specifications]
1. Metric specification sheet
|
SIZE |
D |
e |
h(ref.) |
M -0.03 -0.20 |
S ±0.30 |
K ±0.20 |
L ±0.30 |
||
|
M1 |
+0.15 +0.05 |
||||||||
|
LGB.SM4hL |
M4 |
0.5~2.0 |
6.5 |
6 |
6 |
6.75 |
0.5 |
10.0 |
|
|
LGB.SM5hL |
M5 |
0.5~2.5 |
8.0 |
7 |
7 |
8.0 |
0.6 |
12.0 |
|
|
LGB.SM6hL |
M6 |
0.5~3.0 |
9.5 |
9 |
9 |
10.0 |
0.6 |
14.5 |
|
|
LGB.SM8hL |
M8 |
0.5~3.5 |
10.0 |
11 |
11 |
12.3 |
0.6 |
16.5 |
|
|
LGB.SM10hL |
M10 |
0.5~3.5 |
12.5 |
13 |
13 |
14.3 |
0.80 |
23 |
|
2. Inch specifications sheet
|
d |
s |
HOLE SIZE +0.15 -0.00 |
HD ±0.10 |
HH ±0.0> |
L ±0.15 |
D MAX |
IL MAX |
|
6-32UNC |
.020-.080 |
.2520 |
.390 |
.030 |
.420 |
.248 |
.305 |
|
6-32UNC |
.080-.130 |
.2520 |
.390 |
.030 |
.470 |
.248 |
.305 |
|
8-32UNC |
.020-.080 |
.2520 |
.390 |
.030 |
.420 |
.248 |
.305 |
|
8-32UNC |
.080-.130 |
.2520 |
.390 |
.030 |
.470 |
.248 |
.305 |
|
10-24UNC |
.020-.130 |
.2969 |
.415 |
.030 |
.475 |
.296 |
.315 |
|
10-24UNC |
.130-.225 |
.2969 |
.415 |
.030 |
.585 |
.296 |
.315 |
|
10-32UNF |
.020-.130 |
.2969 |
.415 |
.030 |
.475 |
.296 |
.315 |
|
10-32UNF |
.130-.225 |
.2969 |
.415 |
.030 |
.585 |
.296 |
.315 |
|
1/4-20UNC |
.027-.165 |
.3898 |
.500 |
.030 |
.580 |
.3858 |
.380 |
|
1/4-20UNC |
.165-.260 |
.3898 |
.500 |
.030 |
.680 |
.3858 |
.380 |
|
5/16-18UNC |
.027-.150 |
.5312 |
.685 |
.035 |
.690 |
.530 |
.470 |
|
5/16-18UNC |
.150-.312 |
.5312 |
.685 |
.035 |
.805 |
.530 |
.425 |
|
3/8-16UNC |
.027-.150 |
.5312 |
.685 |
.035 |
.690 |
.530 |
.470 |
|
3/8-16UNC |
.150-.312 |
.5312 |
.685 |
0.35 |
.805 |
.530 |
.420 |
|
1/2-13UNC |
.063-.200 |
.6875 |
.865 |
.047 |
1.150 |
.685 |
.850 |
|
1/2-13UNC |
.200-.350 |
.6875 |
.865 |
.047 |
1.300 |
.685 |
.850 |
|
1/2-13UNC |
.350-.500 |
.6875 |
.865 |
.047 |
1.450 |
.685 |
.860 |
