Guangzhou Yinglai Hardware Product Co., Ltd.
China Manufacturer with main products: Rivets, Rivet Nut, Riveted Screw, Clinching Stud, Self-Clinching Standoffs, Self-Clinching Nuts, Self-Clinching Studs, Riveter, |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
Quick Details
- Brand Name: yinglai
- material: stainless steel/ carbon steel/ aluminum
- specification: UNC6-32 to UNC1/2-13
Specifications

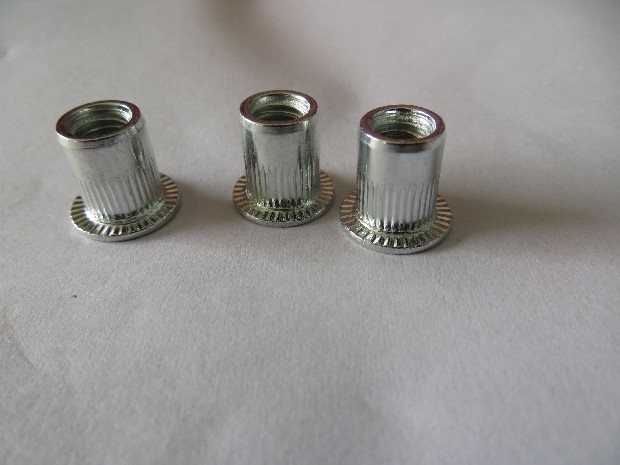

Inch rivet nut, American rivet nut, UNC rivet nuts, BSW rivet nuts
[Product description]
Insert nuts in a foreign country is known as the "Gospel of thin board connection technology," It changed the old way of traditional crafts, when installing components on the plate without the tapping, no weld nuts, with strong, beautiful, convenient, fast characteristics, can be widely used in the assembly of automotive, aviation, railway, refrigeration, elevators, switches, instruments, furniture, decoration and electrical and light industrial products.
Note: insert nut also provides vertical stripes type and smooth type.
[Head type]
1. flat head
2. countersunk head
3. small countersunk head
[Column type]
1. park rod type
2. groove
3. hexagonal (semi-hexagonal)
[Column type]
Carbon steel, aluminum, stainless steel etc.
[Product specifications]
|
d |
s |
HOLE SIZE +0.15 -0.00 |
HD ±0.10 |
HH ±0.0> |
L ±0.15 |
D MAX |
IL MAX |
|
6-32UNC |
.020-.080 |
.2520 |
.390 |
.030 |
.420 |
.248 |
.305 |
|
6-32UNC |
.080-.130 |
.2520 |
.390 |
.030 |
.470 |
.248 |
.305 |
|
8-32UNC |
.020-.080 |
.2520 |
.390 |
.030 |
.420 |
.248 |
.305 |
|
8-32UNC |
.080-.130 |
.2520 |
.390 |
.030 |
.470 |
.248 |
.305 |
|
10-24UNC |
.020-.130 |
.2969 |
.415 |
.030 |
.475 |
.296 |
.315 |
|
10-24UNC |
.130-.225 |
.2969 |
.415 |
.030 |
.585 |
.296 |
.315 |
|
10-32UNF |
.020-.130 |
.2969 |
.415 |
.030 |
.475 |
.296 |
.315 |
|
10-32UNF |
.130-.225 |
.2969 |
.415 |
.030 |
.585 |
.296 |
.315 |
|
1/4-20UNC |
.027-.165 |
.3898 |
.500 |
.030 |
.580 |
.3858 |
.380 |
|
1/4-20UNC |
.165-.260 |
.3898 |
.500 |
.030 |
.680 |
.3858 |
.380 |
|
5/16-18UNC |
.027-.150 |
.5312 |
.685 |
.035 |
.690 |
.530 |
.470 |
|
5/16-18UNC |
.150-.312 |
.5312 |
.685 |
.035 |
.805 |
.530 |
.425 |
|
3/8-16UNC |
.027-.150 |
.5312 |
.685 |
.035 |
.690 |
.530 |
.470 |
|
3/8-16UNC |
.150-.312 |
.5312 |
.685 |
0.35 |
.805 |
.530 |
.420 |
|
1/2-13UNC |
.063-.200 |
.6875 |
.865 |
.047 |
1.150 |
.685 |
.850 |
|
1/2-13UNC |
.200-.350 |
.6875 |
.865 |
.047 |
1.300 |
.685 |
.850 |
|
1/2-13UNC |
.350-.500 |
.6875 |
.865 |
.047 |
1.450 |
.685 |
.860 |
