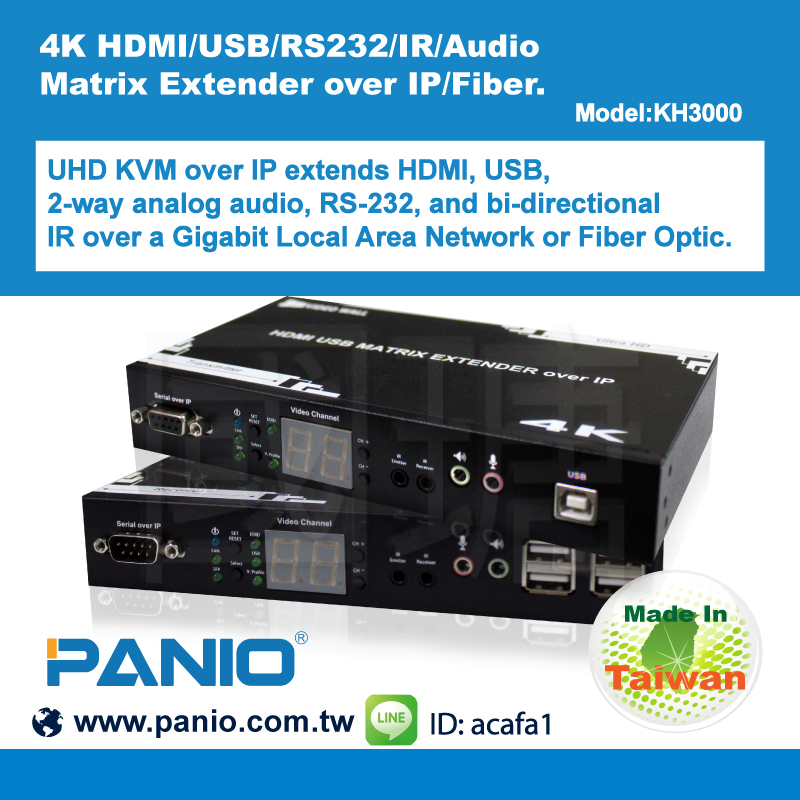

HDMI USB2.0 Matrix KVM Switch & Extender over IP w/RS232 Audio IR

Payment Terms:	T/T

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Quick Details

HDMI/USB Accessory/RS232/IR/Audio Chainable Extender over Network

HD KVM over IP extends HDMI, USB, 2-way analog audio, RS-232, and bi-directional IR over a Gigabit

Local Area Network.

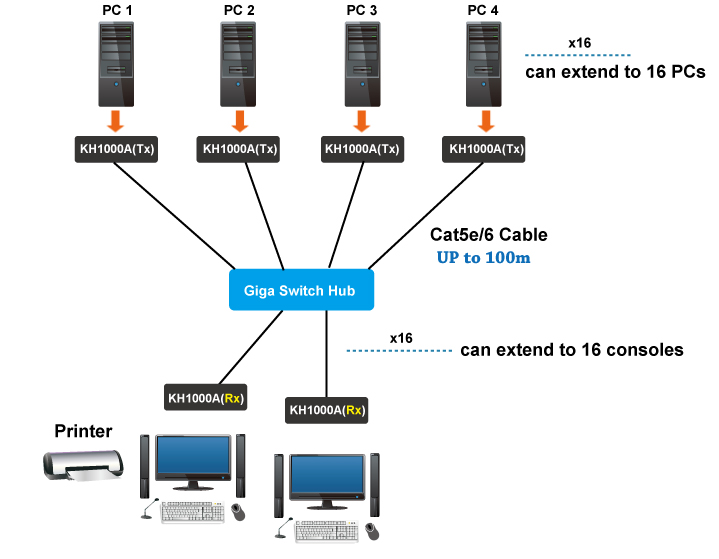

the Sender and Receiver units can be automatically or manually configured to unique IP addresses to allow the

Connection of multiple Senders and Receivers to the same network. Multiple Receiver units can simultaneously

Connect to any Sender unit within the network to create a virtual cross-point matrix of up to 16 Senders and multiple

Receivers up to a theoretical limit of just over 65,000 units, depending on the network.

	Extends HDMI, USB, RS-232, bi-directional stereo analog audio, and bi-directional IR over IP, using a Gigabit Local Area Network.
	Supports resolutions up to 1080p Full HD and 1920 x 1200 (WUXGA).
	Supports HDMI Features:
	HDCP.
	LPCM 7.1 audio, Dolby? TrueHD, and DTS-HD Master Audio?.
	3D supported ( Side by side & Top and bottom ).
	Lip-Sync pass-through.
	USB 2.0 and backward-compatibility with USB 1.1.
	Supports up to 16 Senders.
	Supports just over 65,000 Receivers, depending on the network bandwidth and number of ports of your network switch.
	Mode button on Receiver for sharpness or motion optimization of image.
	Field-upgradable firmware via web server interface.
	PoE supported ( Optional ).
	Made in Taiwan.

Extends the HDMI+Audio+IR+RS-232+USB Accessory signal by Cat.5e/6 up to 150m.

	HD KVM Extender - Transmitter
	HD KVM Extender - Receiver

	1 x IR emitter cable or 1 x IR receiver cable ( Optional )

MODLE NAME		KH1000A (Transmitter)	KH1000A (Receiver)
Video	Input	(1) HDMI Type A 19-pin, female	-
	Output	(1) HDMI Type A 19-pin, female ( Loopback )	(1) HDMI Type A 19-pin, female (1) VGA 15-pin, female
Audio	Line-In	(1) 3.5mm mini-stereo jack	-
	Line-Out	(1) 3.5mm mini-stereo jack	(1) 3.5mm mini-stereo jack
	MIC-in	-	(1) 3.5mm mini-stereo jack
USB	USB Host	(1) USB Type B, female	-
	USB Device	-	(4) USB Type A, female
RS-232 Connector		(1) DB-9, female	(1) DB-9, male
IR	IR Emitter	(1) 3.5mm mini-mono jack	(1) 3.5mm mini-mono jack
	IR Extender	(1) 3.5mm mini-stereo jack	(1) 3.5mm mini-stereo jack
Ethernet		(1) RJ-45, shielded	(1) RJ-45, shielded
Mode button		-	(2) tact-type
ID Selector DIP switch		(1) DIP Switch	(1) DIP Switch
LED	Link Indicator	(1) LED, green	(1) LED, green
	Power Indicator	(1) LED, orange	(1) LED, orange
Power	Supply	5V DC	5V DC
	Consumption	10W (max.)	10W (max.)
