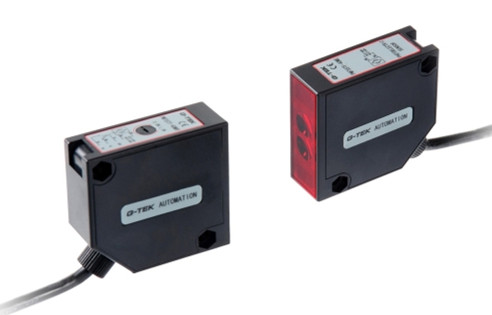

Photoelectri csensor PMF55 A/B frequence

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Tianjin in China
Packaging Details:	standard carton

Quick Details

Features

1 Aspheric surface optical lens totally eliminate stray light , Specific optics structure overcome interference from light source as sunlight;

2 Long detection rang , High sensitivity, solving the detection problem of small-size object effectively;

3 AC, DC supply optional, supply voltage: 12~240VAC/DC;

4 A/B frequency option, overcoming the cross interference among different groups;

5 Foresight LED is convenient to indicate output status of sensor;

6 Protection Rating IP65(IEC).

PMF55TF-40MRF Series Technical Parameters

Model	PMF55TF-40MRF
Sensing Type	Opposed
Sensing Object	Min Dia 15 opaque object
Sensing Distance	40m
Response Time	Max.20ms
Power Consumption	Max.3VA
Supply Voltage	12-240V DC/AC
Light Source	Infrared LED(modulated)
Action Mode	Light on Dark on
Control Output	Relay output (contact rating:30VDC 3A Resistance load,250VAC,3A Resistance load, contact component: 1C)
Circuit Protection	Reverse polarity protection, surge production
Indication Light	Emitter/ Receiver: Green LED indicates power working status ; Receiver: Red LED indicates output status
Attended Mode	Output cable
Insulation Resistance	Min.20MΩ(500VDC)
Anti-interference	±3KV simulative interference, square wave interference ( Frequency:5KHz)
Withstand Voltage	1000VAC 50/60Hz 1 minute
Ambient Brightness	Sunlight: Max.40000lx; Fluorescent: Max.4000lx
Ambient Temperature	－20~﹢65℃(Non-freezing)
Ambient Humidity	35~﹢85%RH
Material	Housing: ABS; Lens : PMMA
Production Rating	IP65(IEC)
Cable Standard	Emitter: Dia 5.2X0.3, Receiver: Dia 5.5X0.2, Wire length:2m
Accessory	Mounting screw: M4×25 cross -recess stainless screw GB 973-1976
