Home  >Products Catalog > USB3.0 to PCI-E Card > PCI Express PCI-E to USB3.0(3x Ext + 1x Int) with SATA Connector

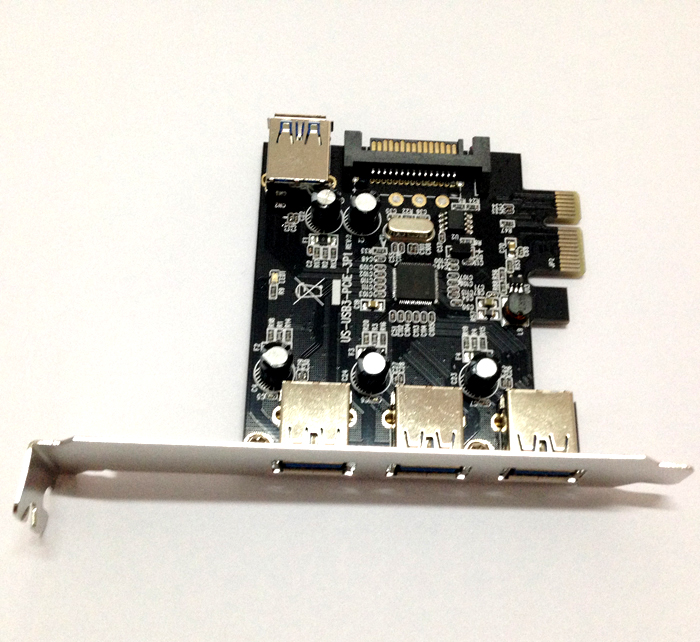

PCI Express PCI-E to USB3.0(3x Ext + 1x Int) with SATA Connector

FOB Price: 6.50 - 8.00 USD/Set
Supply Ability: 100,000 Set/Sets per Month
Shipping: by air or by sea
Payment Terms: T/T, Western Union, MoneyGram, paypal
In Stock
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: color box or brown box

Quick Details

  • Brand Name: ulanson
  • Model Number: U3P4N-22P-S
  • Chipset: Renesas PD720202
  • Power Supply: 15-pin SATA

Specifications

Features:
Extend with 2 USB 3.0 downstream ports and 1 USB3.0 19-pin Connector(can expand another two USB 3.0 ports) for standard desktop PC.Specifications:
- Fully compliant with one-lane (x1) PCI Express 2.0 specification
- Three (3) external 5Gbps SuperSpeed USB 3.0 ports
- One (1) internal 5Gbps SuperSpeed USB 3.0 port
- SuperSpeed USB 3.0 offers 10 times performance increase over Hi-Speed USB 2.01
- USB 3.0 complies with Intel eXtensible Host Controller Interface (xHCI)
- Up to 5Gbps maximum transfer rate1
- SuperSpeed USB 3.0 is backwards compatible with USB 1.0/1.1/2.0 devices (data transfer rate at 1.5/12/480Mbps)
- SuperSpeed USB 3.0 is fully compatible with original USB system, peripherals and cables
- Built-in with 15-pin SATA Power Connector for added power source to better support power hungry bus-powered devices3
- Ideal connection for digital cameras, scanners, printers, external CD/DVD/Blu-Ray writers, hard disk drives, flash memory drives and etc.
- Fully Plug-N-Play and Hot Swap compatible
- Supports 32-bit & 64-bit Windows Vista/Server 2008/Windows 72
- Support Linux Ubuntu 10.2 above version

*To achieve the maximum throughput, the PCI-Express slot must be version 2.0 or higher. Performance per port may decrease if multiple ports are transferring data simultaneously due to limited throughput of the PCI-Express slot.

System Requirements:
- PC with 512MB of RAM and 1.0GHz or faster processor
- One (1) available PCI Express 1.x or 2.x slot
- 32-bit & 64-bit Windows? Vista/Server 2008/Windows 71

1 To meet USB 3.0 transfer speed, high quality USB 3.0 cables and devices are required
2 Supports both 32-bit & 64-bit OSes
3 Make sure the power is well connected, otherwise you will see a "Power Surge on Hub Port" message error and no 5V bus power in USB ports.

Package Contents:
- One (1) PCI Express card
- Software drivers CD
1 * User Manual
