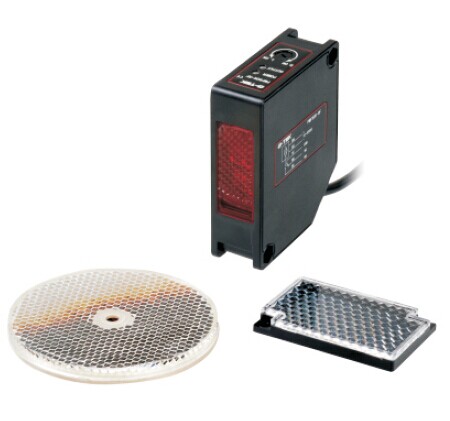

PMF80R 20M photoelectric switch used for large-sized door and gate

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Tianjin in China
Packaging Details:	standard carton package

Specifications

PMF80R

1 Visible red class2 laser 2 laser beams with good directivity, easier for alignment and debugging;

2 Excellent optical performance, sensing rang as far as 16m;

3 Non-sphere optical lens totally eliminate stray light and overcome the interference from such light source as sunlight;

4 Able to detect working status by red LED indicator, which makes installation easy;

5 Light on/ Dark on options;

6 Protection grade is IP65;

7 Implementer standard: Chinese standard:GB/T 14048.10-2008; IEC: IEC60947-5-2:2004

Model	PMF80R-RF
Sensing Type	Retro- reflective
Sensing Object	Min Dia 60mmopaque
Sensing Distance	20 m
Supply Voltage	10-30VDC
Power Consumption	Max.60mA
Light Source	Laser (modulated:650nm)
Action Mode	Selecting light on or dark on by potentiometer
Control Output	Relay output (contact rating:30VDC,1Aor 120VAC,1Aresistant load: contact component: C)
Response Time	Max.20ms
Circuit Protection	overvoltage protection; overcurrent protection; Reverse polarity protection
Indication Light	Power indicator: Green; Action indicator: Red
Ambient Brightness	Sunlight: Max6.0000LuX Fluorescent: Max.3000LuX
Ambient Temperature	-30---65 centigrade (non-freezing)
Ambient Humidity	35~85%RH
Material	Housing: ABS; Lens: PMMA; Cable:PVC
Protection Rating	IP65
Cable Standard	Dia5.5x0.2
Accessory	Bracket: IB08 Screw: M4*30
