Jinan Dwin Technology Co., Ltd.
China Manufacturer with main products: Laser Engraving Machine, Laser Cutting Machine, CNC Router, Laser Engraving & Cutting Machine, Woodworking Machine, Cutting Machine, CNC... |

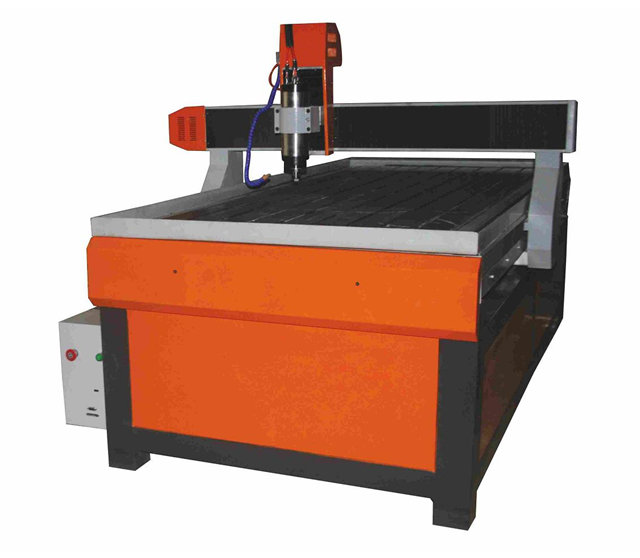

DW1325 CNC Wood Shaving Machine Made in China
| FOB Price: | 6,000.00 - 8,000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set/Sets per Week |
| Shipping: | wood shaving :15 days after received your payment or depoist |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | wood shaving machine:plywood box,free of fumigation |
Quick Details
- Condition: New
- Brand Name: DW1325 cnc wood shaving machine
- Model Number: DW1325 cnc wood shaving machine
- Voltage: AC220V/50/60Hz,1PH (Option: 380V 3PH)
- Power(W): Max.Power Consumption (Without spindle) 3.0Kw
- Dimension(L*W*H): 1300x2500x200mm
- Weight: 250KG
- Certification: CE/ISO
- Warranty: 12 months
- After-sales Service Provided: Engineers available to service machinery overseas
- Spindle Speed: 0-24000RPM
Specifications
DW1325 CNC Woodworking machine
| specifications: | ||
|
1
|
X,Y,Z Working Area | 1300x2500x200mm |
|
2
|
Table Size | 1380×3040mm |
|
3
|
X,Y,Z Traveling Positioning Accuracy | ±0.05/300mm |
|
4
|
X,Y,Z Repositioning Positioning Accuracy | ±0.05mm |
|
5
|
Table Surface | Bakelite Vacuum Ttable (Option:T-slot table) |
|
6
|
Frame | Welded strucutre |
|
7
|
X, Y Structure | Rack and Pinion Drive,Hiwin Rail Linear Bearings |
|
8
|
Z Structure | Ball Screw, Hiwin Rail Linear Bearings |
|
9
|
Max.Power Consumption (Without spindle) | 3.0Kw |
|
10
|
Max.Rapid Travel Rate | 50000mm/min |
|
11
|
Max.Working Speed | 25000mm/min |
|
12
|
Spindle Power Motor | 34.5kw water cooling or HSD for choice |
|
13
|
Spindle Speed | 0-24000RPM |
|
14
|
Drive Motors | Stepper system(Option:Servo System) |
|
15
|
Working Voltage | AC220V/50/60Hz,1PH (Option: 380V 3PH) |
|
16
|
Command Language | G Code |
|
17
|
Operating System | DSP System (Option: Mach3 PC Software) |
|
18
|
Interface | USB |
|
19
|
Flash Memory | 128M(U Disk) |
|
20
|
Collet | ER25 |
|
21
|
X,Y Resolution | <0.02mm |
|
22
|
Software Compatability | Type3 software,Ucancam software(Option:Artcam software) |
|
|
Temperature: 0℃～45℃ |
