Liaoyang Bright Shine Pharmaceutical Machinery Imp&Exp Co., Ltd.
China Manufacturer with main products: Pharmaceutical Machinery and Equipment, Packing Machinery, Blister Packing Machinery, Capsule Filling Machinery, Ampoule Filling Machine,... |

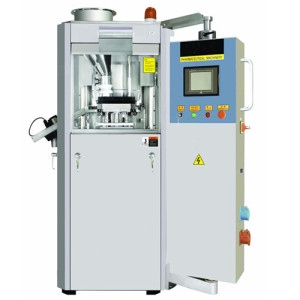

Rotary Tablet Press Machine (ZPT-15)
| FOB Price: | 999,999.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set/Sets per Month |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Liaoning in China |
| Packaging Details: | Export Standard Wooden Case |
Quick Details
- Brand Name: BSIT
- Model Number: ZPT-15
Specifications
Product Description
The contact with product adopt stainless steel.
The hole of the punch&die is with special anti-leakage and anti-dust device. Convience for disassemble structure, make sure the maintenance. Adopt high desinition, isolated window design.Adopt reliable safe sealing and dustproof design.
The force feeder system solves the shortage situation of normal tablet pressing machine.
Make the engineer's motive power transmit to enforced transimission shafte directly, and then over the transmission box and feeder impeller, achieing the enforced feeder system and saving the less down material from gravity, too much powder in working tray and inter-pollution of ordinary machine
Technical Parameter
| Model | ZPT15 | ZPT17 | ZPT20 | ZPT25 |
| Die type | D | B | BB | BBS |
| Number of dies | 15 | 17 | 20 | 25 |
| Max. diameter of tablet (mm) | 25 | 16 | 13 | 11 |
| Max abnormal Prolate axis size (mm) | 25 | 18 | 16 | _ |
| Maxoutput (tablets/h) | 70000 | 80000 | 95000 | 118000 |
| Maximum filling depth (mm) | 20 | 16 | 16 | 16 |
| Maximum main pressure (KN) | 100 | 80 | 80 | 80 |
| Maximum pre-pressure (KN) | 12 | 12 | 12 | 12 |
| Idle load noise dB(A) | < 75 | |||
| Power of main motor (KW) | 380V 50HZ 5.5KW | |||
| Size of machine (mm) | 660× 690× 1620 | |||
| Net weight of machine (kg) | 675 | |||
