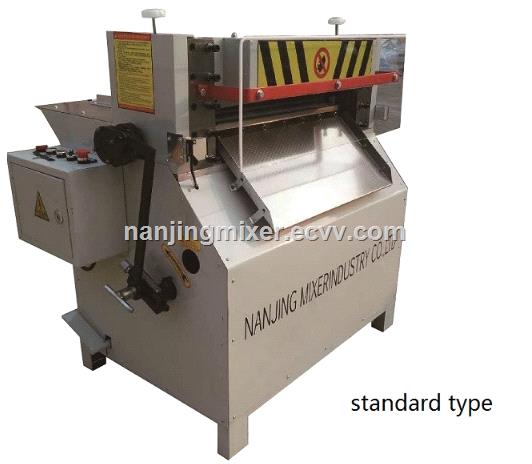

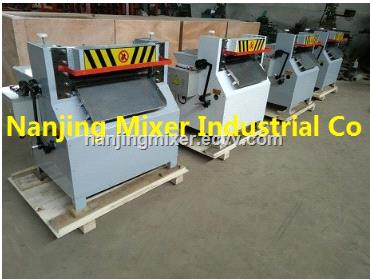

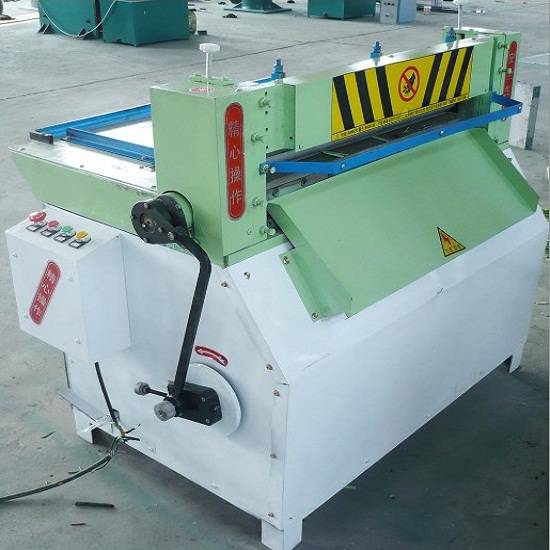

HEAVY DUTY CNC Rubber Strip Cutting Machine

Shipping:	by sea. Ningbo or Shanghai Port
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	wooden case

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: CE
Brand Name: Mixer
Condition: New
Weight: 750kg
Dimension(L*W*H): 115x85x110cm
Rated Power: 1.5KW
Voltage: as local country request
Model Number: XQ620

Specifications

Description:

1. the machine structure is simpl.with glass plates positioning in front make the operation more secure. Feeding platform is made of pure mirror stainless steel, truly beautiful appearance and guarantees safe production, high automation, easy operation and low noise and has a good safety device, automatic lift feed roller device is also a friendly design.

2. Feed roller adopts high-precision dual-clutch, free to adjust the width of strip material from 1mm to 65 mm, max.100mm,high precision cutting.

3. Cutting knives use genuine edge steel knives, the knife blade with four double-sided carbide hard alloy blades, which is equivalent of four common knives blade life. Authentic life of at least 7 years eliminates causing blunt for long time use and the trouble of sharpening.

4. More humane NC electrical control system. (You can control the start switch(button) only cut one time,after confirming the weight in need already, then converted to a continuous strip cut) and significantly increased the electrical life,a simple operation, more convenient to use.

at present, the models of XQ-450, XQ-620, XQ-820, and XQ-1000 are available. and their separate rubber cutting width is: 450mm, 620mm, and 820mm. and the feed thickness is 1~15mm. Cutting speed: 85 pcs strips/ min.

HEAVY DUTY CNC rubber strip cutting machine
