PV Ribbon L Shape Bend Forming Machine MB-140

Payment Terms: T/T
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China

Quick Details

  • After-sales Service Provided: Engineers available to service machinery overseas
  • Certification: CE
  • Voltage: 220V
  • Brand Name: Eterphe
  • Condition: New
  • Model Number: MB-140
  • Extra Services: End Forming
  • Automation: Automatic
  • Power: Other
  • Machine Type: Other

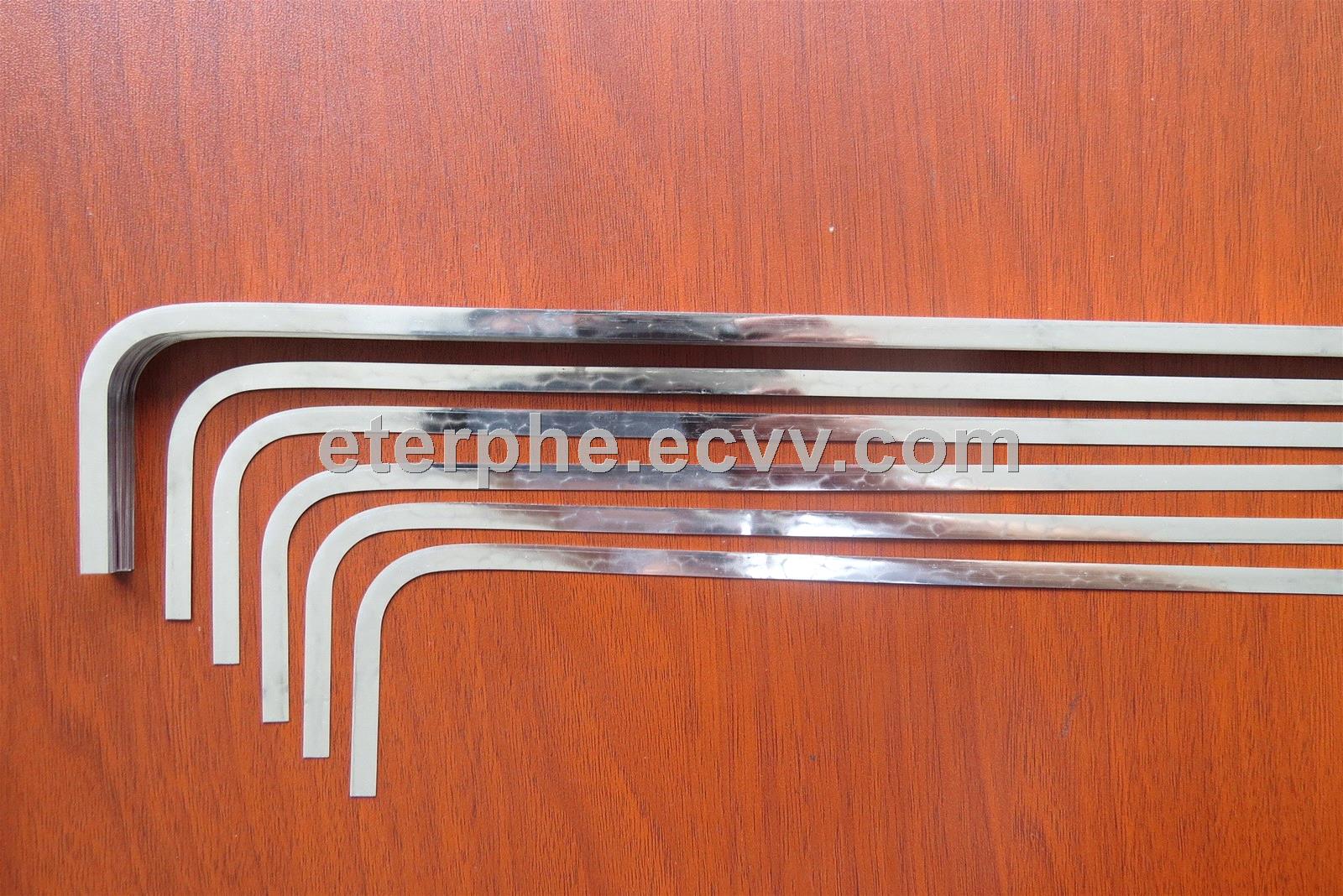

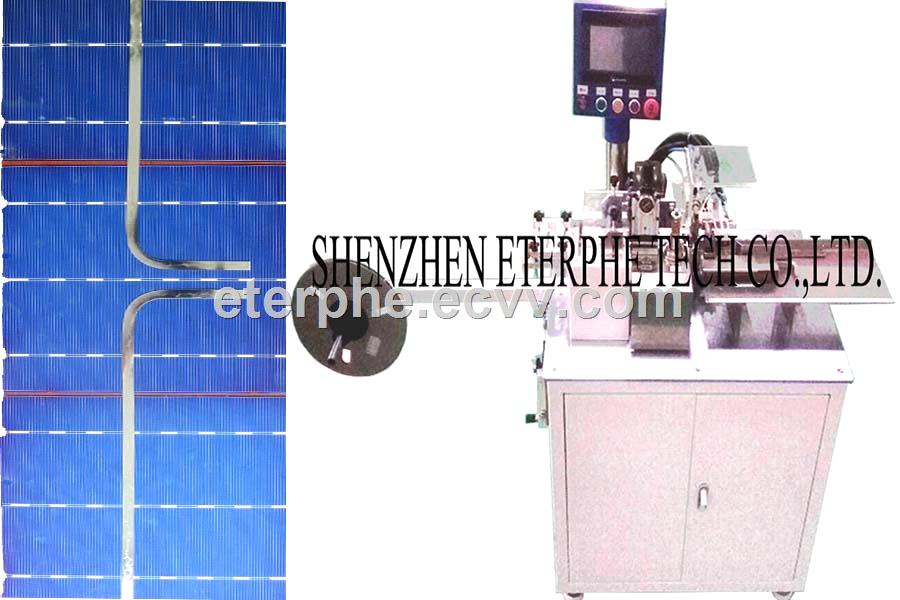

this equipment is designed by the company independent research and development.Mainly for the bending of solar dedicated bus bar.with a rational structure,it can be fastly adjusted, easily operated and precisely controlled. this machine is with strong practically, for domestic initiative,solving the bus bar forming processing in pioneering work way.
 Patent product No.201320789154.4

Model: MB140
Power Supply: AC220V 210W
Dimensions: (L)1400 * (W) 620* (H) 1200 (mm)
Weight: 120KG
Number of strip processed:1pc
Forming length:the short side:=>4PV Ribbon L shape bend Forming Machine MB1400mm, the long side <9999.9mm
Forming angle:905(can be adjusted)
Forming semidiameter:R=R=8-15mm(can be customized)
Cutting width:1-10mm(Mould qualified)
Cutting thickness: 0.10-0.50 mm
Cutting accuracy: (0.2+L*0.002)mm
Processing speed: L=220mm,18pcs/min

copper wire L shape from this supplier
