Guangzhou Hai Ming Electrical Technology Co., Ltd.
China Manufacturer with main products: Pplatic Butt Welder, Plastic Welding Machine, Lastic Cutting Machine, Plastic Sheet Bending Machine, Plastic Bending Machine, Plastic Butt... |

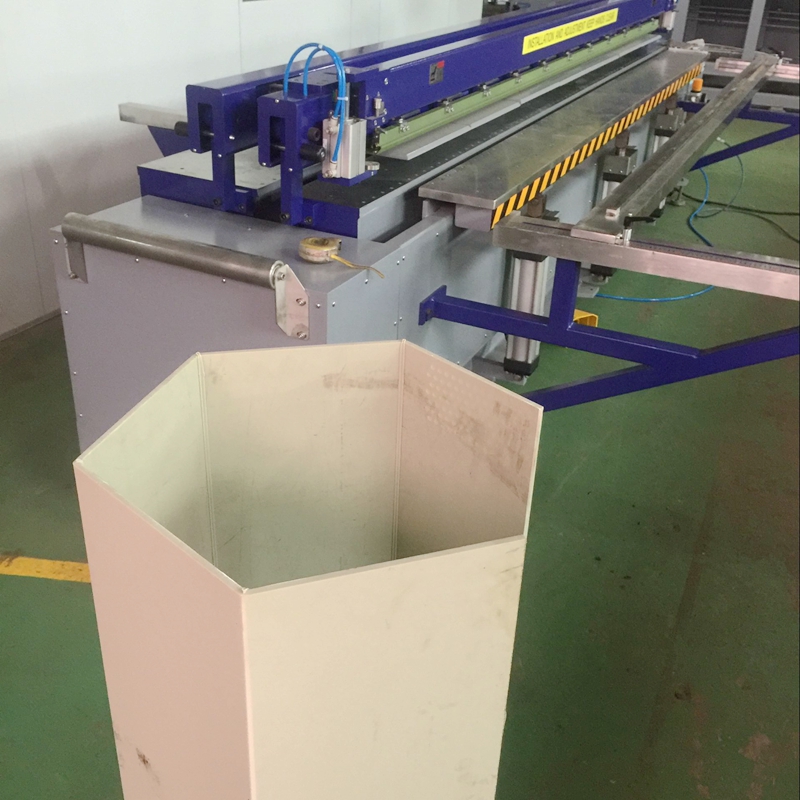

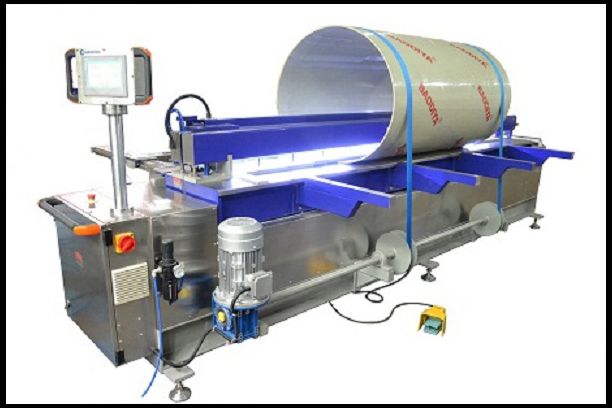

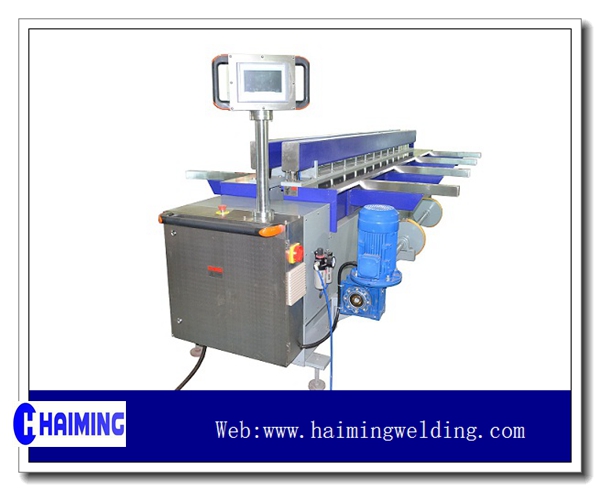

Chinese Low Price Butt Welding Machine
| Supply Ability: | 1 Set(s) per Month |
|---|---|
| Shipping: | EXW |
| Payment Terms: | T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Sea worthy Simple package or according to customer's requirment for high frequency straight. |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Usage: plastic welder
- Dimensions: 4500x2400x1200 mm
- Brand Name: HaiMing
- Power: 10KW
- Current: A
- Input Voltage: 380V
- Model Number: S-ZP3000A
- Condition: New
- Type: Other
- Weight: 2800kg
- Voltage: 380v
- weld /bend: plastic sheet
Specifications
S-ZP3000A Chinese lower price Automatic automatic welding machine
Features:
Our patented design, plastic sheet bending and welding integrated machine.
Bending angle adjustable 0-95 . suitable for all types of thermo plastic sheet (PP-R, PP-H, PP-B, PP-S, HD-PE, PVC-U, PVC-RL, PVDF)
the new steel structure, patented mechanical synchronous drive technology, through the proportional valve, in the weld area to achieve uniform pressure.
Control system Siemens PLC, 7-inch color touch screen.
Data parameters are automatically selected according to the material a particular welding pressure, temperature and time.
3mm-30mm welding capabilities, special welding thickness up to 40mm, 60mm.
3mm-25mm bending capability.
Range of Application
Manufacture of reservoirs, tanks and containers, manufacture of plastic apparatus, pipeline construction, ventilation systems, serial welding, water treatment systems, scrubbers, environmental technology, swimming pools, transport and logistics
Technical data
Specification |
S-ZP3000 |
S-ZP4000 |
Bending width (mm) |
3050 |
4050 |
Welding width (mm) |
3050 |
4050 |
Bending Thickness of plastic plate (mm) |
3-25 |
3-25 |
Welding thickness of plastic plate (mm) |
3-40 |
3-40 |
Square tube bending (mm) |
320*420 |
370*450 |
Butt Welding Circular (mm) |
480 and more |
500 and more |
Lighting |
LED |
LED |
Bending angel |
0-95 |
0-95 |
Operation pressure (N/mm2) |
0.6-0.8 |
0.6-0.8 |
Power (kw) |
10 |
12 |
Dimensions |
4500*2400*1200 |
5600*2400*1200 |
Weight(ton) |
2.8 |
3.5 |
Heating components in welding (mm) PTFE coating Maximum temperature=260 |
3200*80*20 |
4200*80*20 |
Top heating components (mm) PTFE coating Maximum temperature=260 |
3100*52 |
4200*52 |
Bottom heating components(mm) PTFE coating Maximum temperature=260 |
3100*45 |
4200*45 |
Our service:
1. Warranty for 12 months.
2. We accept OEM & ODM.
3. in some foreign countries, we have the distributor or agent to sell and warranty the machines, they will supply service
Why choose us?
1.Our equipment has strong competitiveness, our equipment already ahead, our device has the following characteristics:
the only use of advanced technology from Germany
the only electrical integration automated system
the only design
the only practical new technology
2. Our factory is the first one to manufacture the automatic plastic butt welding machine in China and service this line More than decade. and our factory have many skilful peration of workers and the stability of the scale of production. and we also have many outstanding engineers,they can help you design the machines you want.
3.Genuine products with excellent quality and competitive price.
4.Cooperating with the customers all over the world and knowing the markets very well.
5.after-Services will be highly-satisfied. Any problems and feedbacks will be answered in a short of tim
