(Double Row) Angular Contact Ball Bearing

Inquiry Now

Related products from verified members

Angular Contact Ball Bearing (7210)

Price:0.20-20.00 USD/Piece

Min. Order:2 Pieces
KF160AR0 Angular Contact Ball Bearing

Price:283.00-290.00 USD/Set

Min. Order:50 Sets

Product Details

Export Markets:	North America, South America, Southeast Asia, Africa

Quick Details

Bore Size: -
Outside Diameter: -

Specifications

Our mainly produces are high-precision, low-noise deep groove ball bearing, auto hub bearing, precision bearing, high-speed & precision bearing, shaft bearing and motor bearing.

Our products are mainly sold to USA, Japan, Korea, Brazil... twenty countries around world. Auto bearings are supplied to famous car company. Turned rings are OEM for famous bearing company.

We passed TS16949 and ISO14001 in 2009.

Please contact us for a quick quotation if you have following targets:
1)Purchasing products in China, at low price but with excellent quality,
2)Looking for quality-oriented Chinese manufactures, in order to produce your products in China with lower costs.

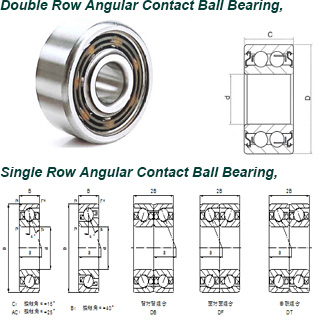

Double Row Angular Contact Ball Bearing,
5200 Series
Model	d	D	C	Basic Load Rating Cr(N)	Basic Load Rating Cor(N)	Limiting Speed (rpm)		Weight (g)
Model	d	D	C	Basic Load Rating Cr(N)	Basic Load Rating Cor(N)	Grease Lub	Oil Lub	Weight (g)
5200	10	30	14.3	7150	3900	17000	22000	50
5201	12	32	15.9	10500	5800	15000	20000	60
5202	15	35	15.9	11700	7050	13000	17000	70
5203	17	40	17.5	14600	9050	11000	15000	90
5204	20	47	20.6	19600	12400	10000	13000	120
5205	25	52	20.6	21300	14700	8500	11000	190
5206	30	62	23.8	29600	21100	7100	9500	290
5207	35	72	27	39000	28700	6300	8000	430
5208	40	80	30.2	44000	33500	5600	7100	570
5209	45	85	30.2	49500	38000	5000	6700	620
5210	50	90	30.2	51000	42000	4000	53000	689
5300 Series
Model	d	D	C	Basic Load Rating Cr(N)	Basic Load Rating Cor(N)	Limiting Speed (rpm)		Weight (g)
Model	d	D	C	Basic Load Rating Cr(N)	Basic Load Rating Cor(N)	Grease Lub	Oil Lub	Weight (g)
5300	10	35	19	10570	5840
5301	12	37	19	13180	7450
5302	15	42	19	17600	10200	11000	15000	110
5303	17	47	22.2	21000	12600	10000	13000	140
5304	20	52	22.2	24600	15000	9000	12000	230
5305	25	62	25.4	32500	20700	7500	10000	340
5306	30	72	30.2	40500	28100	6300	8500	510
5307	35	80	34.9	51000	36000	5600	7500	790
5308	40	90	36.5	56500	41000	5300	6700	1050
5309	45	100	39.7	68500	51000	4500	6000	1400
Single Row Angular Contact Ball Bearing,
Model		Dimension(mm)					Point	Limiting Speed (rpm)		Basic Load Rating Cr(N)	Basic Load Rating Cor(N)	Weight (g)
Model		d	D	B	rs min	rls min	a	Grease Lub	Oil Lub	Basic Load Rating Cr(N)	Basic Load Rating Cor(N)	Weight (g)
71805C		25	37	7	0.3	0.15	7.7	21500	27700	4400	3920	0.025
71805AC		25	37	7	0.3	0.15	10.7	18400	24600	4130	3660	0.025
71806C		30	42	7	0.3	0.15	8.3	18500	23800	4730	4620	0.029
71806AC		30	42	7	0.3	0.15	11.9	15900	21200	4440	4320	0.029
71807C		35	47	7	0.3	0.15	9	16300	20900	4920	5140	0.034
71807AC		35	47	7	0.3	0.15	13.1	13900	18600	4620	4810	0.034
71808C		40	52	7	0.3	0.15	9.7	14500	18600	5200	5840	0.04
71808AC		40	52	7	0.3	0.15	14.2	12400	16600	4880	5460	0.04
71809C		45	58	7	0.3	0.15	10.4	12900	16600	6540	7520	0.051
71809AC		45	58	7	0.3	0.15	15.5	11100	14800	6140	7030	0.051
71810C		50	65	7	0.3	0.15	11.2	11600	14900	6850	8410	0.068
71810AC		50	65	7	0.3	0.15	16.9	9900	13200	6440	7870	0.068
71811C		55	72	9	0.3	0.15	13	10500	13500	9380	11400	0.109
71811AC		55	72	9	0.3	0.15	19.3	9000	12000	8810	10700	0.109
71812C		60	78	10	0.3	0.15	14.2	9600	12400	9690	12400	0.139
71812AC		60	78	10	0.3	0.15	21.1	8300	11000	9110	11600	0.139
71813C		65	85	10	0.6	0.15	15	8900	11400	12500	16000	0.198
71813AC		65	85	10	0.6	0.15	22.5	7600	10100	11800	15000	0.198
71814C		70	90	10	0.6	0.15	15.7	8300	10700	13000	17400	0.217
71814AC		70	90	10	0.6	0.15	23.7	7100	9500	12200	16200	0.217
71815C		75	95	10	0.6	0.15	16.4	7800	10100	13200	18200	0.226
71815AC		75	95	10	0.6	0.15	24.8	6700	8900	12400	17100	0.226
71816C		80	100	10	0.6	0.15	17.1	7400	9500	13700	19600	0.245
71816AC		80	100	10	0.6	0.15	26	6300	8400	12800	18300	0.245
71817C		85	110	13	1	0.3	19.6	6800	8800	20400	28100	0.401
71818AC		85	110	13	1	0.3	29.2	5800	7800	19200	26200	0.401
7024AC	46124	120	180	28	2	1	49	3800	5100	103.8	102.7	2.04
7026C	36126	130	200	33	2	1	38.6	4000	5200	130	133.5	3.73
7026AC	46126	130	200	33	2	1	55	3500	4600	124.4	125.3	3.73
7203C	36203	17	40	12	0.6	0.3	9.9	23000	30000	10.83	5.78	0.062
7203AC	46203	17	40	12	0.6	0.3	12.8	20000	26000	10.36	5.42	0.062
7203B	66203	17	40	12	0.6	0.3	18.2	16500	23000	9.21	4.58	0.066
7204C	36204	20	47	14	1	0.3	11.6	20000	25000	14.54	8.03	0.1
7204AC	46204	20	47	14	1	0.3	15	17000	22000	13.9	7.53	0.1
7204B	66204	20	47	14	1	0.3	21.5	14000	20000	12.36	6.37	0.11
7205C	36205	25	52	15	1	0.3	12.7	17000	22000	16.57	10.14	0.12
7205AC	46205	25	52	15	1	0.3	16.6	15000	20000	15.85	9.51	0.12
7205B	66205	25	52	15	1	0.3	23.9	12000	17000	14.09	8.04	0.13
7206C	36206	30	62	16	1	0.3	14.2	14000	18000	23	14.56	0.19
7206AC	46206	30	62	16	1	0.3	18.8	12000	16000	22	13.66	0.19
7206B	66206	30	62	16	1	0.3	27.5	10000	14000	19.56	11.55	0.2
7207C	36207	35	72	17	1.1	0.6	15.7	12500	16000	30.34	19.7	0.27
7207AC	46207	35	72	17	1.1	0.6	21	11000	14000	29.01	18.49	0.27
7207B	66207	35	72	17	1.1	0.6	30.9	9000	12500	25.79	15.63	0.29
7208C	36208	40	80	18	1.1	0.6	17	11000	14000	36.81	25.31	0.35
7208AC	46208	40	80	18	1.1	0.6	23	9500	13000	35.2	23.75	0.35
7208B	66208	40	80	18	1.1	0.6	34.2	8000	11000	31.29	20.07	0.37
7209C	36209	45	85	19	1.1	0.6	18.3	10000	13000	38.67	27.96	0.4
7209AC	46209	45	85	19	1.1	0.6	24.9	8700	12000	36.98	26.24	0.4
7209B	66209	45	85	19	1.1	0.6	37.2	7000	10000	32.88	22.18	0.42
7210C	36210	50	90	29	1.1	0.6	19.4	9500	12000	42.83	31.34	0.45
7210AC	46210	50	90	29	1.1	0.6	26.3	8200	11000	40.81	30.31	0.45
7210B	66210	50	90	29	1.1	0.6	39.4	6800	9500	36.41	24.85	0.47
7211C	36211	55	100	21	1.5	0.6	20.9	8600	11000	52.98	39.5	0.59
7211AC	46211	55	100	21	1.5	0.6	28.6	7400	9900	50.67	37.06	0.59
7211B	66211	55	100	21	1.5	0.6	43	6200	8600	45.04	31.33	0.61
7212C	36212	60	110	22	1.5	0.6	22.4	7900	10000	61.05	47.7	0.76
7212AC	46212	60	110	22	1.5	0.6	30.8	6700	9000	58.38	44.76	0.76
7212B	66212	60	110	22	1.5	0.6	36.7	5600	7900	51.9	37.83	0.78
7213C	36212	65	120	23	1.5	0.6	23.9	7200	9300	69.88	54.08	0.95
7006AC	46106	30	55	13	1	0.3	16.5	13500	18000	14.49	9.56	0.112
7007C	36107	35	62	14	1	0.3	13.5	14000	18000	19.45	13.72	0.15
7007AC	46107	35	62	14	1	0.3	18.3	12000	16000	18.6	12.87	0.15
7008C	36108	40	68	15	1	0.3	14.7	12500	16000	20.13	15.07	0.18
7008AC	46108	40	68	15	1	0.3	29.1	11000	14000	19.26	14.14	0.18
7009C	36109	45	75	16	1	0.3	16	11000	14000	25.85	20.21	0.23
7010C	36110	50	80	16	1	0.3	16.7	10500	13000	26.7	21.73	0.25
7010AC	46110	50	80	16	1	0.3	23.2	8800	12000	25.53	20.38	0.25
7011C	36111	55	90	18	1.1	0.6	18.7	9200	12000	37.29	30.09	0.37
7011AC	46111	55	90	18	1.1	0.6	25.9	7900	10500	35.66	28.24	0.37
7012C	36112	60	95	18	1.1	0.6	19.5	8500	11000	38.38	32.39	0.39
7012AC	46112	60	95	18	1.1	0.6	27.3	7300	9700	36.7	30.39	0.39
7013C	36113	65	100	18	1.1	0.6	20.1	8100	10000	40.25	35.14	0.42
7013AC	46113	65	100	18	1.1	0.6	28.2	7000	9300	38.49	32.97	0.42
7216C	36216	80	140	26	2	1	27.9	6000	7700	89.65	76.28	1.39
7216AC	46216	80	140	26	2	1	38.9	5200	6900	85.74	71.57	1.39
7216B	66216	80	140	26	2	1	59.6	4300	6000	76.22	60.49	1.45
7217C	36217	85	150	28	2	1	29.9	5600	7200	99.85	84.21	1.73
7217AC	46217	85	150	28	2	1	41.7	4800	6400	95.5	79.01	1.73
7217B	66217	85	150	28	2	1	63.9	4000	5600	84.89	66.78	1.8
7218C	36218	90	160	30	2	1	31.7	5300	6900	122.7	103.5	2.13
7218AC	46218	90	160	30	2	1	44.1	4600	6100	117.4	97.14	2.13
7218B	66218	90	160	30	2	1	67.4	3800	5300	104.3	82.1	2.2
7219C	36219	95	170	32	2.1	1.1	33.8	5000	6500	134.6	112.2	2.58
7219AC	46219	95	170	32	2.1	1.1	46.9	4300	5800	128.3	108.2	2.58
7219B	66219	95	170	32	2.1	1.1	71.6	3600	5000	114.4	88.99	2.66
7220C	36220	100	180	34	2.1	1.1	35.8	4800	6100	149.1	125.3	3.08
7220AC	46220	100	180	34	2.1	1.1	49.6	4100	5500	142.6	117.6	3.08
7220B	66220	100	180	34	2.1	1.1	75.7	3400	4800	126.8	99.43	3.17
7221C	36221	105	190	36	2.1	1.1	37.8	4500	5800	162.8	141.2	3.66
7221AC	46221	105	190	36	2.1	1.1	52.4	3900	5200	155.3	132.5	3.66
7221B	66221	105	190	36	2.1	1.1	79.9	3200	4500	138.1	112	3.75
7222C	36222	110	200	38	2.1	1.1	39.9	4300	5500	175.9	158.2	4.29
7222AC	46222	110	200	38	2.1	1.1	55.4	3700	4900	168.3	148.5	4.29
7222B	66222	110	200	38	2.1	1.1	84.4	3000	4300	149.6	125.5	4.39
7224C	36224	120	215	40	2.1	1.1	42.4	4000	5100	189.7	177.1	6.06
7224AC	46224	120	215	40	2.1	1.1	59.1	3400	4600	181.4	166.2	6.06
7224B	66224	120	215	40	2.1	1.1	90.3	2900	4000	161.2	140.4	6.16
7302AC	46302	15	42	13	1	0.3	13.4	19000	26000	12.62	6.33	0.06
7302B	66302	15	42	13	1	0.3	18.9	16000	23000	11.22	5.35	0.07
7303AC	46303	17	47	14	1	0.3	14.6	17000	23000	14.98	7.66	0.11
7303B	66303	17	47	14	1	0.3	20.6	15000	21000	13.32	6.47	0.12
7304AC	46304	20	52	15	1.1	0.6	15.9	16000	21000	17.9	9.62	0.14
7304B	66306	20	52	15	1.1	0.6	22.6	13000	19000	16.15	8.7	0.15
7305AC	46305	25	62	17	1.1	0.6	18.6	13000	18000	25.17	14.04	0.22
7305B	66305	25	62	17	1.1	0.6	26.8	11000	15000	21.98	11.33	0.23
7306AC	46306	30	72	19	1.1	0.6	21.6	11000	15000	29.51	17.91	0.33
7306B	66306	30	72	19	1.1	0.6	31.3	9200	13000	25.99	14.54	0.35
7307AC	46307	35	80	21	1.5	0.6	24.1	9800	13000	38.82	24.72	0.44
7307B	66307	35	80	21	1.5	0.6	35	8200	11000	34.63	22.1	0.46
7308AC	46308	40	90	23	1.5	0.6	26.8	8700	11500	47.45	31.15	0.61
7308B	66308	40	90	23	1.5	0.6	39	7300	10000	41.75	25.28	0.64
7309AC	46309	45	100	25	1.5	0.6	29.4	7900	10500	60.9	39.46	0.83
7309B	66309	45	100	25	1.5	0.6	42.9	6600	9200	54.14	33.35	0.86
7310AC	46310	50	110	27	2	1	32.3	7100	9500	72.13	49.24	1.05
7310B	66310	50	110	27	2	1	47.3	5900	8300	64.35	43.88	1.1
7311AC	46311	55	120	29	2	1	35.1	6500	8600	83.4	58.04	1.34
7311B	66311	55	120	29	2	1	51.6	5400	7600	73.31	46.95	1.4
7312AC	46312	60	130	31	2.1	1.1	37.6	6000	8000	99.99	70.48	1.68
7312B	66312	60	130	31	2.1	1.1	55.4	5000	7000	88.89	59.57	1.75
7313AC	46313	65	140	33	2.1	1.1	40.4	5600	7500	113.3	81.11	2.06
7313B	66313	65	140	33	2.1	1.1	59.5	4700	6500	100.7	68.56	2.14
7314AC	46314	70	150	35	2.1	1.1	43.1	5200	6900	121.2	88.25	2.5
7314B	66314	70	150	35	2.1	1.1	63.7	4300	6100	106.8	71.65	2.6
7315AC	46315	75	160	37	2.1	1.1	45.9	4900	6500	138.7	104.6	3.09
7315B	66315	75	160	37	2.1	1.1	67.8	4100	5700	123.3	88.43	3.18
7316AC	46316	80	170	39	2.1	1.1	48.6	4600	6100	150.3	117.5	3.55
7316B	66316	80	170	39	2.1	1.1	71.9	3800	5300	133.6	99.37	3.65
7317AC	46317	85	180	41	3	1.1	51.4	4300	5800	153.1	121	4.18
7317B	66317	85	180	41	3	1.1	76.1	3600	5000	136.1	102.3	4.28
7318AC	46318	90	190	43	3	1.1	54.1	4100	5500	174.4	146.5	4.88
7318B	66318	90	190	43	3	1.1	80.2	3400	4800	155	123.8	5
7319AC	46319	95	200	45	3	1.1	56.9	3900	5200	191.6	165.8	5.65
7319B	66319	95	200	45	3	1.1	84.4	3200	4500	170.3	140.1	5.8
7320AC	46320	100	215	47	3	1.1	60.2	3600	4900	211.5	190.8	6.9
7320B	66320	100	215	47	3	1.1	89.6	3000	4200	188	161.3	7.1
HFD0480300		184	226	19	1	0.6	69	2800	3700	74.3	104.9	1.33

* Please visit for more information of (Inch) Deep Groove bearings, Ball Bearings, Roller Bearings, Precision Bearings, Automobile Bearings Special Bearings, Precision Steel Tube.
