Tianjin Hengyong Hose Co., Ltd.
China Manufacturer with main products: Hydraulic Rubber Hose, Hose Fitting, Hose Crimping Machine, O Ring, Rubber Seal, Teflom Hose, Metal Flexible Hose, Ferrules Fittin |

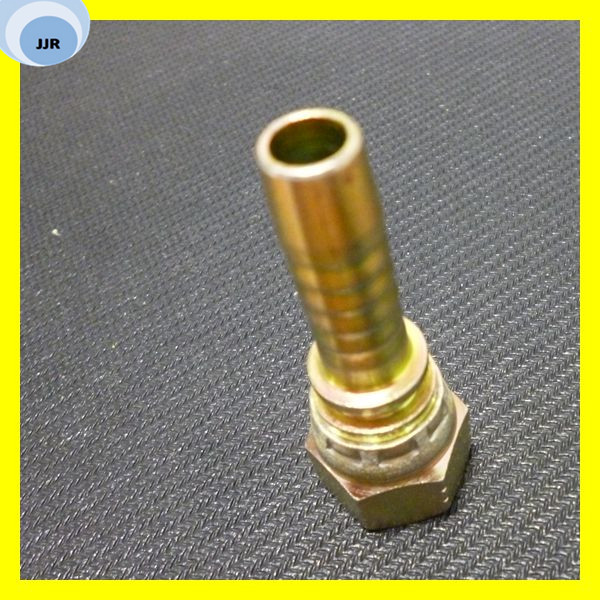

swaged hose fitting straight metric female multi seal fitting 20111
| FOB Price: | 1.00 - 5.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000,000 Piece/Pieces per Day |
| Shipping: | by sea or air |
| Payment Terms: | T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Tianjin in China |
| Packaging Details: | carton box |
Quick Details
- Brand Name: JJR
- Model Number: 20111
- Material: Metal
- Metal Type: Steel
- Standard: ANSI
- Delivery: within 7 days
- Type: Hydraulic carbon steel Ferrule
- Brand Name: JJR
- Material: Stainless Steel,carbon steel, brass and so on
- moq: 100 pieces
- Size: all standard sizes
- Key Word: Hydraulic hose/pipe Ferrule
- Surface: silver zinc or yellow zinc plated
Specifications
swaged hose fitting straight metric female multi seal fitting 20111
Quick Detail:
1.All standard sizes and nonstandard sizes are OK.
2.Factory price for fast sell and the big market.
3.Materials can be customized.
4.Best workmanship.
5.Can do as your drawing.
Description:
The 20111 swaged hose fitting is used for the hydraulic rubber hose or machines connector.
The standard sizes are from DN 5mm to 25mm,and other nonstandard sizes we can do according your drawing.
The material of the ferrules are always carbon steel, stainless steel or brass, and the material can be customized.
As for the price, all of the ferrules are with factory price, the more quantity you order,the more nice price you will get.
The surface of the fitting with no burr, zinc plating or others customized.
And the sample is free in small quantity.
FAQ
Applications:
This type of fitting used as the connector of the hydraulic rubber hose.
Specifications:
|
PART NO. |
THREAD E |
HOSE BORE |
DIMENSIONS |
||||||
|
DN |
DASH |
C |
S |
A |
|||||
|
20111-10-03 |
M10X1 |
5 |
03 |
2.5 |
14 |
18 |
|||
|
20111-10-04 |
M10X1 |
6 |
04 |
2.5 |
14 |
18 |
|||
|
20111-12-04 |
M12X1.5 |
6 |
04 |
4 |
17 |
18.5 |
|||
|
20111-12-05 |
M12X1.5 |
8 |
05 |
4 |
17 |
18.5 |
|||
|
20111-14-04 |
M14X1.5 |
6 |
04 |
4.5 |
19 |
19.5 |
|||
|
20111-14-05 |
M14X1.5 |
8 |
05 |
4.5 |
19 |
19.5 |
|||
|
20111-16-04 |
M16X1.5 |
6 |
04 |
4.5 |
22 |
20 |
|||
|
20111-16-05 |
M16X1.5 |
8 |
05 |
4.5 |
22 |
20 |
|||
|
20111-16-06 |
M16X1.5 |
10 |
06 |
4.5 |
22 |
20 |
|||
|
20111-18-06 |
M18X1.5 |
10 |
06 |
4 |
24 |
21.5 |
|||
|
20111-18-08 |
M18X1.5 |
12 |
08 |
4 |
24 |
22 |
|||
|
20111-20-08 |
M20X1.5 |
12 |
08 |
5.5 |
27 |
23 |
|||
|
20111-22-08 |
M22X1.5 |
12 |
08 |
5 |
27 |
23.5 |
|||
|
20111-22-10 |
M22X1.5 |
16 |
10 |
5 |
27 |
24.5 |
|||
|
20111-24-10 |
M24X1.5 |
16 |
10 |
5 |
30 |
26 |
|||
|
20111-27-10T |
M27X1.5 |
16 |
10 |
5.5 |
32 |
26 |
|||
|
20111-30-12 |
M30X1.5 |
20 |
12 |
6 |
36 |
26.5 |
|||
|
20111-36-16 |
M36X2 |
25 |
16 |
7 |
41 |
26 |
|||
|
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20112-xx-xx; |
|||||||||
Competitive Advantage:
1.We have our own factory to produce the fitting.
2.All standard sizes are OK.
3.Drawing accepted.
4.Materials customized.
5.Low price and high quality.
Tag:
Fitting 20111, hydraulic hose fitting, fitting connector, metric fitting,straight fitting.
