Beijing Geoshine Oilfield Technology Services Co., Ltd.
China Manufacturer with main products: MWD, LWD, Turbine, Gamma, Resistivity |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications

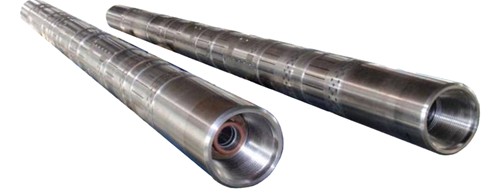

1. Resistivity integrated with gamma ray measurements; Compact, reliable and durable.
2. Multi-depth measurement capability and high vertical resolution achieved through dual-frequency, dual-spaced and symmetrical-structured coils.
3. Symmetrical measurement mode, effectively reducing the impact of environmental factors.
4. Low power consumption measurement circuit, high reliability; measuring system with automatic correction against temperature changes.
5. With automatic calibration software for borehole effect and complete explanation, correction charts, accurate, and reliable.
6. After rigorous testing, the response is correct, reliable.
Specification:
|
2MHz Resistivity |
400KHz Resistivity |
|
Natural Gamma(NGR) |
|
n Phase Difference |
n Phase Difference |
|
n Measurement Range |
|
u 0.1~2000(ohm-m) u ±0.6%(0.1~50 ohm-m) u ±0.3mS/m(＞50 ohm-m) n Attenuation u 0.1~500(ohm-m) u ±0.8%(0.1~25ohm-m) u ±0.45mS/m(＞25 ohm-m) |
u 0.1~1000(ohm-m) u ±1.35%(0.1~25ohm-m) u ±0.5mS/m(＞25 ohm-m) n Attenuation u 0.1~200(ohm-m) u ±2%(0.1~10ohm-m) u ±6mS/m(＞10 ohm-m) |
|
u 0-500API n Accuracy u ±2 API @ 100 API n Vertical Resolution u 172mm (6.8'') |
|
n Vertical Resolution (Rshouder=1.0 ohm-m, Rbed=0.2 ohm-m) u 0.2m |
n Vertical Resolution (Rshouder=1.0 ohm-m, Rbed=0.2 ohm-m) u 0.5m |
|
|
|
n Max Working Temp: 150℃ |
n Max Pressure:20000psi |
|
n Tool Length:3480mm |
|
n Max ROP u 54m/hr(5s/per sample) u 108m/hr(2.5s/per sample) |
n Applicable Hole Size: 8-1/2''-10'' |
|
n Tool Weight:590kg |
