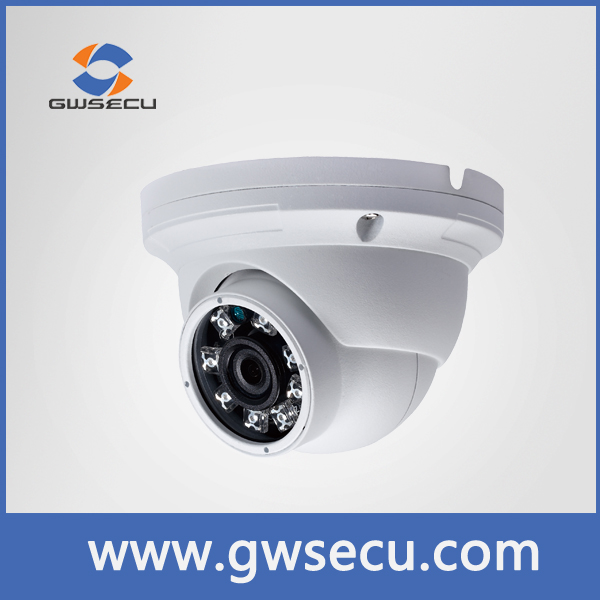

3.0 Mp CMOS HD Waterproof IR WDR Mini Network Outdoor Dome IP Camera
| Supply Ability: | 1,000 Piece/Pieces per Week |
|---|---|
| Shipping: | Outdoor Dome IP Cam |
| Payment Terms: | L/C, D/P, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Outdoor Dome IP Cam in carton |
Quick Details
- Brand Name: GWSECU
- Model Number: KDT-HD18RC83-DE(P)
- Type: Digital Camera
- Sensor: CMOS
- Technology: NetWork
- Special Features: Waterproof / Weatherproof
- Image Sensor: 1/3" 3.0Megapixel Progressive Scan Aptina WDR CMOS Sensor
- Operating System: Embedded LINUX
- WDR Dynamic Range: WDR(120dB)
- Lens: 3.6mm Fixed Lens (2.8mm optional and 6mm only for non-POE type in addition)
- Max IR Distance: 15m, 8pcs 7.5*7.5mm IR lights
- Video Compression: H.264/MJPEG Optional
- Video Format: PAL/NTSC
- ONVIF: ONVIF Ver.2.3
- Protection Level: IP66
- PoE: 802.3af
Specifications
Key Features:
> 1/3" 3.0 Megapixel Progressive Scan Aptina WDR CMOS sensor
> 1/3" 3.0 Megapixel Progressive Scan Aptina WDR CMOS sensor
> Ti DaVinci Series DSP
> H.264&MJPEG video compression and JPEG image capture
> Max 20fps @ 3.0MP (2048×1536)
> Dual encoding streams supported
> Lens: 3.6mm Fixed Lens (2.8mm/6mm optional)
> 8pcs 7.5*7.5mm IR lights ,Max IR Distance :15m
> True Day/Night ICR
> IP66 all-environments protection
> Support DC12V power supply, PoE
> Built-in Web server, NVR, CMS
|
Model |
KDT-HD18RC83-DE |
KDT-HD18RC83-DEP |
|
General |
||
|
Main Processor |
Ti DaVinci Series DSP |
|
|
Operating System |
Embedded LINUX |
|
|
Capacity |
Simultaneous remote monitoring, local recording and remote control |
|
|
User Interface |
WEB, CMS, NVR |
|
|
Camera |
||
|
Image Sensor |
1/3" 3.0Megapixel Progressive Scan Aptina WDR CMOS Sensor |
|
|
Effective Pixels |
2048(H)×1536(V) |
|
|
Electronic Shutter |
1/5s to 1/50,000s |
|
|
Mini. Illumination |
Color:0.2Lux/F1.2 ; B/W:0.01Lux/F1.2; 0Lux/F1.2(IR on) |
|
|
Signal Noise Ratio |
>50dB |
|
|
Day/Night Mode |
Auto, dual IR-Cut filter |
|
|
Gain Control |
Auto/Manual |
|
|
White Balance |
Auto/Manual |
|
|
WDR Dynamic Range |
WDR(120dB) |
|
|
Lens |
3.6mm Fixed Lens (2.8mm optional and 6mm only for non-POE type in addition) |
|
|
Max IR Distance |
15m, 8pcs 7.5*7.5mm IR lights |
|
|
Video |
||
|
Video Compression |
H.264/MJPEG Optional |
|
|
H.264 Encode Type |
H.264 Baseline/H.264 Main Profile/H.264 High Profile Optional |
|
|
Video Bit Rate |
Main Stream: 500Kbps~12Mbps |
|
|
Image Resolution |
3.0MP(2048×1536)/1080P(1920×1020) / 720P(1280×720) / D1(704×576/704×480) |
|
|
Encoding Speed |
Main Stream: 3.0MP/20fps 1080P/720P/(1~25fps/30fps) |
|
|
Extra Stream: D1/CIF:(1~25fps/30fps) |
||
|
Video Format |
PAL/NTSC |
|
|
Network |
||
|
Ethernet |
RJ-45 (10/100Base-T) |
|
|
Network Protocol |
Ipv4/Ipv6, RTSP, TCP/UDP, HTTP, DHCP, DNS, FTP, DDNS, PPPoE, SMTP |
|
|
Common Features |
One button Reset, Prevent Flicker, Dual-stream, Heartbeat, Password Protect, Video cover, Motion Alarm |
|
|
ONVIF |
ONVIF Ver.2.3 |
|
|
Max User Access |
10 users |
|
|
Smart phone |
Iphone , Ipad ,Android, |
|
|
Remote Operation |
||
|
Network Protocol |
Ipv4/Ipv6, RTSP, TCP/UDP, HTTP, DHCP, DNS, FTP, DDNS, PPPoE, SMTP |
|
|
Environmental |
||
|
Power Supply |
DC12V |
|
|
Power Consumption |
<5W |
|
|
Working Environment |
-40oC ~ +60oC, Humidity less than95%(Non-condensing) |
|
|
Protection Level |
IP66 |
|
|
Dimensions(mm) |
99.8mm×99.8mm×80.5mm |
|
|
Weight(Kg) |
0.4Kg |
|
|
PoE |
N/A |
802.3af |
