Yiwu Feilang Import & Export Co., Ltd.
China Manufacturer with main products: Drag Chain, Sic Seal Rings, OEM Sealing Parts, Auto Accessories |

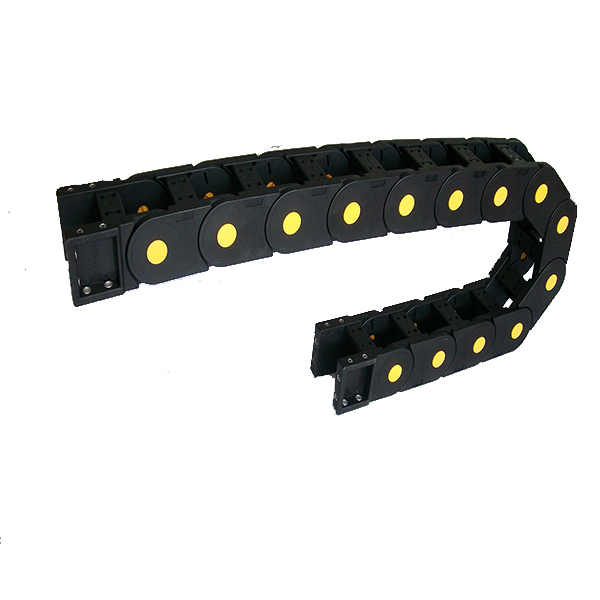

high quality plastic cable carrier for cnc machine
| FOB Price: | 2.00 - 10.00 USD/Meter |
|---|---|
| Supply Ability: | 10,000 Meter per Month |
| Shipping: | 7-15 days after payment |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, Other, paypal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | cable carrier are packaged in carton,wooden case or according to your requirement |
Quick Details
- Material: PA66
- Brand Name: FeiLang
- Model Number: FL
- ITEM: cable carrier
- length: customized
- structure: totally enclosed/semi-enclosed/bridge
- mini size: 7*7mm
- max size: 80*300mm
- package: carton
- Quality: high-level
- Original place: Zhejiang,China
- Application: cnc etc
Specifications
plastic cable carrier
Application and character of cable carrier:
1Applied to use in reciprocating motion so as to have traction and protection effects on built-in cables, inner oil tubes, gas tubes,water tubes, etc.;
2Each segmental part of the engineering plastic cable chain can be opened for easy installation and maintaining;
3While working, the engineering plastic chain is in low noise, anti-abrasion, high speed movement;
4Widely applied to numerically controlled machine tools, electronic devices, dimension stone mechanism, glass mechanism,door-window mechanism, plastic jetting-moulding machine, manipulator, weight handling equipment, auto warehouse, etc.
Construction of cable carrier:
1 The engineering plastic cable chain consists of numerous unit links which can round up smoothly between each other;
2 In the same series of chains, they are seized of the same inner height(Hi), same outer height(Ha), same pitch(T); However, there are different choices for inner width (Bi) and bending radius(R).
3 Which is made up of right-and-left link joint and both cover plate (upper and lower),can be opened by both upper and lower sides. Each unit can not only be opened but also installed and dismantled without threading. After opening the cover, putting the cables, oil tubes, and gas tubes into the chain.
4 Otherwise, the shim may be provided to compart the space within the chain in terms of need.
5 Some constructing plastic chains for special movement and particular application can be provided.
Basic Data of cable carrier:
- Material: Enhanced polyamide with high tension and pull-out strength, excellent flexibility, steady-going capacity in high or low temperature. It can be used outdoors.
- Resistant against: oil, salt, light acid, soft lye.
- Max velocity and max acceleration respectively: 5m/s and 5m/s2 (specific information may be decided by operation conditions),
- Operation life: Under the condition of normal overhead use, it can reach 5 million times for reciprocating motion (detailed life in accordance with operation conditions).
why choose me:
1:We are engaged in cable carrier industry for many year,Accumulated a lot of experience working with customers and believe our cooperation will not let you have anything to worry about .
2:We have low prices, high-quality cable carrier.
3:We have a large number of cable drag chains.full range of size.
4:We have the best quality service, we have engaged in drag chain industry experts as technical advisers to us, if you encounter technical problems, we will service for you.
If you have need, or have any questions, please contact us, or send email to us, we welcome your consultation.
Cable carrier feature
- Open easier ,convenient to install and maintain.
- Protect the wire and cable.
- We can offer you many different kinds of engineering plastic flexible cable drag chain ,if you are interested in the products ,please contact us.
- you can choose as per the wire and cable.
- we can make sure our products are in high quality.
