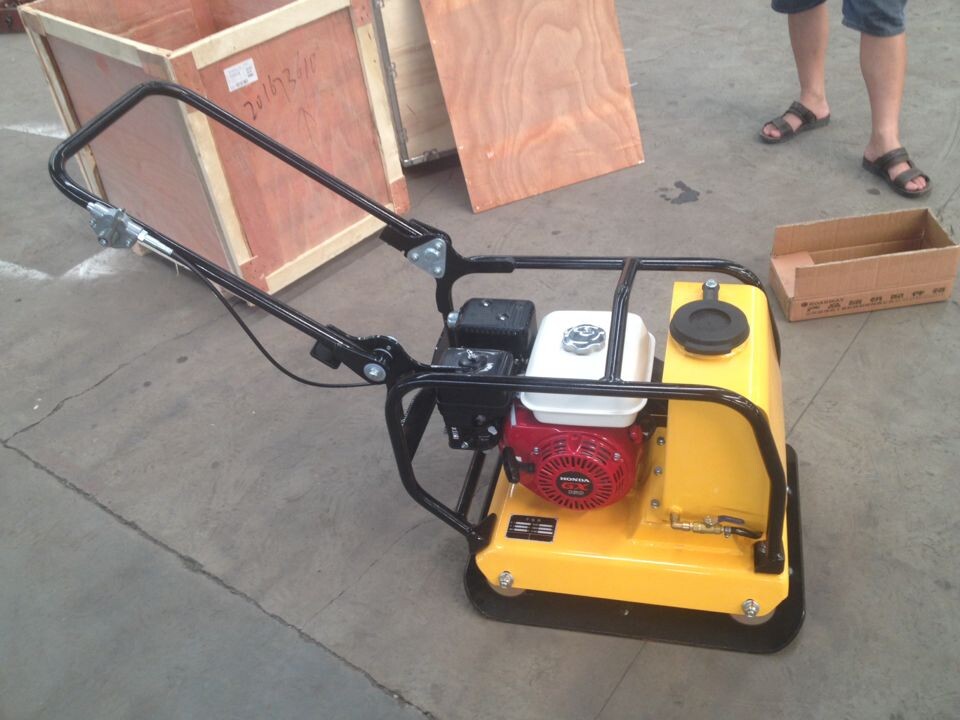

hot selling honda engine plate compactor

Inquiry Now

Specifications

1. Ductile iron base plate provides better durability

2. Open plate provides self cleaning

3. Easy-remove water tank with built-in valve and no hose connection is available as optional

4. Radius base plate for easy access to corners

5. Centrally located lifting bar allows easy transportation

6. Sealed belt cover to prevent sand and soil in

7.Built-in wheel for easy transportation

8.Throttle control is available as optional

plate compactor Technical Specification:

Model	JN/PC90	JN/PC125	JN/PC160		JN/PC330
Engine	Single cylinder. Four stroke, Air Cooled
Engine model	Honda GX160	Honda GX160		Honda GX160	Honda GX390
Power(hp)	5.5	5.5		5.5	13
Weight(kg)	90	127		156	320
Vibration Frequency(rpm)	5500	4000		4000	7000
Compactor Force(KN)	13	25		30.5	38
Compaction Depth(mm)	300	300		500	900
Max Forward Speed(cm/s)	40	25		25	35
Efficiency(m3/h, ft2/hr)	660,7100	500,5400		570,6100	650,6950
Plat size(mm)	530*500	630*400		730*370	890*670
Package size(mm)	780540700	7504501020		8004101050	10205101350
