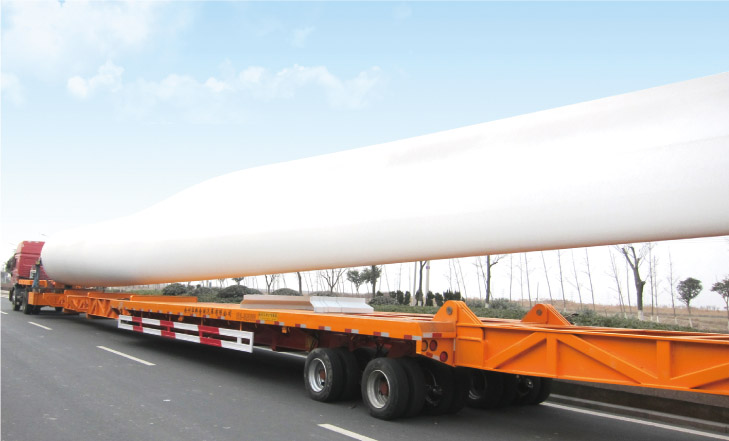

60 - 70 tons heavy duty wind power equipment / wind blade transport semi trailer

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	nude packing

Quick Details

Model Number	MK-T002
Place of Origin	Shandong, China
Color	Any color will be available
Gooseneck	Can be Lower to the ground when connecting with Truck Hydraulically
Rated Load	100T
Tare Weight	13T
Wheel Base	1310 (mm)
Tyre Specifications	10.00R20
No. Of the Tyres	24
Axle Brand	13Tonnage X FUWA Brand
No. Of the Axles	6 Axles
Pieces of leaf-spring	10
Suspension	Heavy Duty Leaf Spring
Front/Rear Overhang	1950 mm
Outside Dimensions	14500x2500x1500 (mm) (LxWxH)
Material of the Main Beam	Q345B/ST52-3 manganese plates, automatic submerged arc, Main-beam Height 500mm, Lower flange: 20mm Upper flange: 20mm Mid Web: 12mm
Usage	For heavy duty machine, as transformer, crane, excavator transportation.
Brake System	Dual Lines Braking System With Automatic Air Chambers
Brake Air Chamber	Four double and two single chamber
Electrical System	24V, 7core socket, lights according to European standards.
Floor	3mm management plate
Tool Box	1 box of standard tools
Spare tire carrier	2 sets
Color and Logo	Depends on the buyer's requirement.
The traction pin	2' & 3.5' inter-changeable
Pin Height	According to the height of the tractor saddle.
