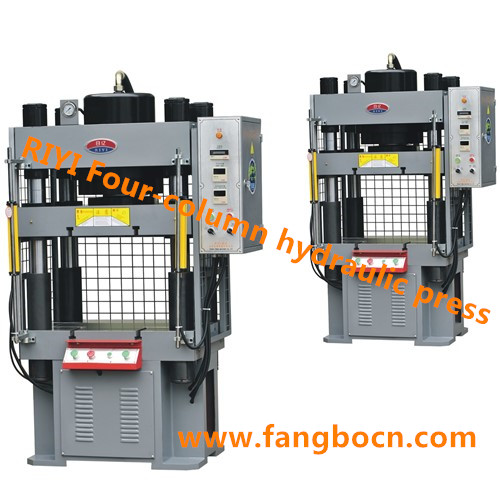

Four-column Hydraulic Machine

FOB Price:	1.00 - 2.00 USD/Set
Supply Ability:	100 Set/Sets per Month
Shipping:	Four-column Hydraulic Machine by sea
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Other, hydraulic machine

In Stock

Inquiry Now

Related products from verified members

Hydraulic Curving Machine

Price:

Min. Order:1 Set
Stainless Steel Scourer Making Machine

Price:

Min. Order:1 Set
30Kg Hydraulic Rail Bender

Price:10.00-100,000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Four-column Hydraulic Machine Outer with strong export wooden box;Inner with shock-proof bubble st

Quick Details

Condition: New
CNC or Not: Normal
Power Source: Hydraulic
Brand Name: Hydraulic Machine:RIYI
Model Number: Hydraulic Machine:FBY-FC100A
Voltage: Hydraulic Machine:-
Power(W): Hydraulic Machine:380v
Weight: Hydraulic Machine:4000kgs
Dimension(L*W*H): Hydraulic Machine:1500*1090*2155MM
Certification: Hydraulic Machine:ISO9001:2008
Warranty: Hydraulic Machine:1YEAR
After-sales Service Provided: Overseas service center available
Hydraulic Machine HS.CODE: 8462999000
Hydraulic Machine Sample: YES
Hydraulic Machine Capable: bending,press forming,stamping,stretching,punching,shaft alignment and press-fit etc

Specifications

Four-column Hydraulic Machine
Non-standard plan can be customized according to customer's demand
FBY-FC100A
Prodcut feature
1.The machine adopts the four-clumn structure,high guiding precision,electrical system PLC control,reliability,operational safety and convenient.
2.the Cylinder with the overall forged and precision ground under high pressure to make High reliability,good impact resistance.
3.under the pressure of having to fast forward stroke and station two speeds;fast forward speed work Efficiency, feeding speeds can be adjusted to protect the mold,improve product quality.
4.safe design,using both hands,with each trip up and down the jog function.
5.stroke,pressure,speed,can be adjusted,and with a pressure protection.
6.infrared protection device,the next top cylinder(optional class).

Technical parameter
specification
Theoretical pressure 1000kn
rated oil pressure 21mpa
max stroke 350mm
daylight opening height 500mm
down speed 120mm/s
pressing speed 8-15mm/s
return speed 80mm/s
the size of the bed 630*530mm
the height of the bed 800mm
motor power 7.5kw
power 380v
weight 4000kgs
fuel tank capacity 150l
max size 930*830mm
