Suzhou Tianyuan Equipment Technology Co., Ltd.
China Manufacturer with main products: High Frequency Welding Pipe Mill, Cable Trav Formina Production Line, C Channel Forming Production Line, Door Frame Forming Production Line,... |

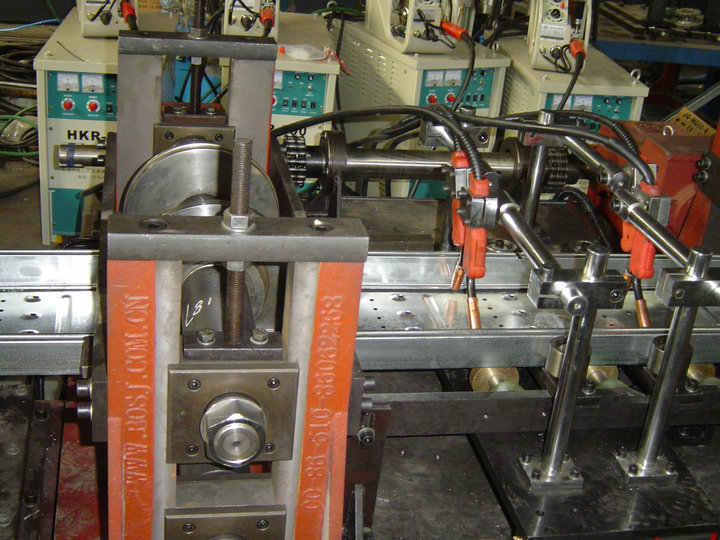

Foot Plate All-in-one Machine
| FOB Price: | 66,000.00 - 70,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Year |
| Shipping: | shanghai port |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | South America, Southeast Asia, Africa, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Jiangsu in China |
| Packaging Details: | wooden box |
Quick Details
- Brand Name: TIANYUAN
- Model Number: GY160
Specifications
A, Equipment Structure
This production line consists of leveler,feeding/punching, roll forming, cutting,etc.
The production line is composed of de-coiler, leveler,punching, roll forming , cutting system , electric control system , etc.
B, Technical parameter
|
NO. |
Item |
Unit |
Parameter |
Remark |
|
|
1 |
Material |
Type |
galvanized sheet,mild steel,etc, |
||
|
Strength of material sheet |
Map |
≥350 |
|||
|
Thickness of material sheet |
mm |
1.2~2.0 |
customizable |
||
|
2 |
Profile sizes |
mm |
See Figure |
customizable |
|
|
3 |
Production speed |
m/min |
6~8 |
customizable |
|
|
4 |
Material of roller |
GCr15 quenching treatment |
|||
|
5 |
Drive type |
Gearbox driven |
|||
|
6 |
Motor Power |
kw |
About 48 |
||
|
7 |
Electric control system |
PLC variable frequency control |
|||
|
8 |
Dimensions(Length*width*height) |
m |
35X4X3.9 |
||
