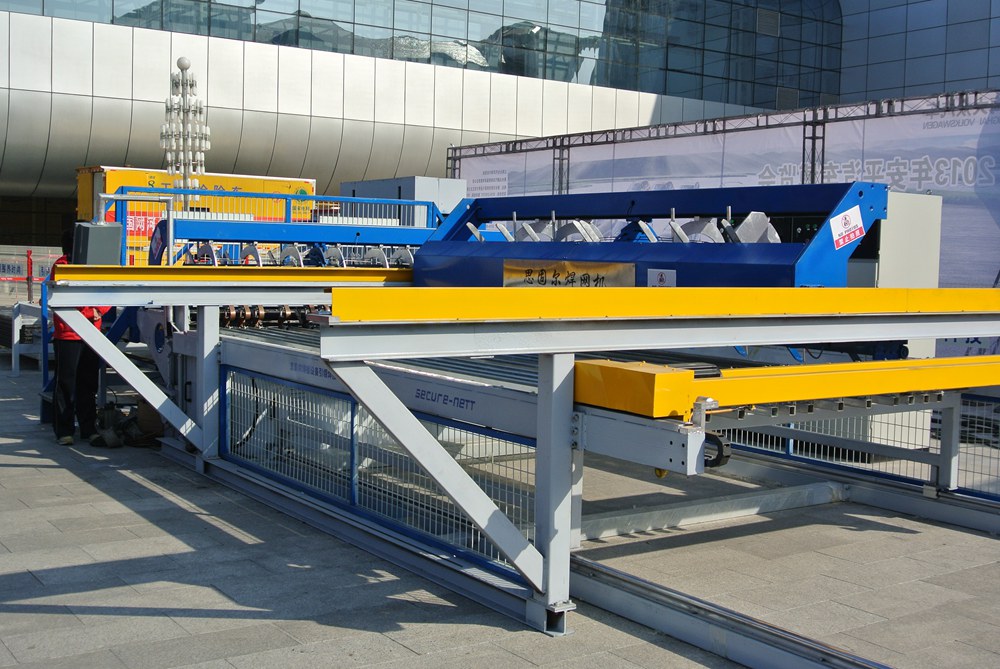

Complete Automatic Wire Mesh Welding Machine

FOB Price:	999.00 - 35,000.00 USD/Set
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Southeast Asia, Africa, Mid East, Eastern Asia
Place of Origin:	Hebei in China

Quick Details

Brand Name: Secure-Nett
PLC Control System: Water Cooling System
Convenient Operation: ISO9001
Providing Oversea Service: Nearly 15years Experiences

Specifications

PLC Control System

Water Cooling System

Convenient Operation

ISO9001:2008

Providing Oversea Service

Nearly 15years Experiences

Product Description:
This equipment adopts synchronous control technology,separate-phase welding and welding time is composed of digital programming of PLC system .There are two kinds of tablet PC input panel,One kind is touch panel ,another is Keyboard .The operation is more intelligent and rationalization.The machine can press the panel tightly once , and weld by several times .
On the same panel,this machine can weld 30 kinds of different size of meshs between weft and weft.That is the biggest advantages of this machine.
The machine adopts new type of high efficient welding transformer ,greatly expand the scope of welding diameters.(This fully automatic wire mesh welding machine has high degree of automation, the same time reduce a lot of manual operation).
1.Line wire feeding way: drop from line wire hopper and be placed to wire channel automatically,greatly reduce the manual operation.

2.Cross wire feeding way: drop from cross wire hopper automatically,position of drop wire is accurately.

3.Mesh panel pulling way:adopt the serve motor, pull the panel back and forth ,pneumatic lock the cross wire,ensure position is accurate.

4.Stacking mesh panel way:fully automatic wire mesh panel transmission mechanism,stack wire mesh panel automatic, Neatly stacked, facilitate transportation, save manpower and material resources.

Parameter:

Welding diameter	Φ2.5mm-Φ5mm	Power supply	AC380 50HZ
Welding aperture	50×50-300×30mm	Rate power	800KVA
Welding width	2500mm	Welding speed	50-70
Welding spot	48	Overall dimension	5×16×2(m)
