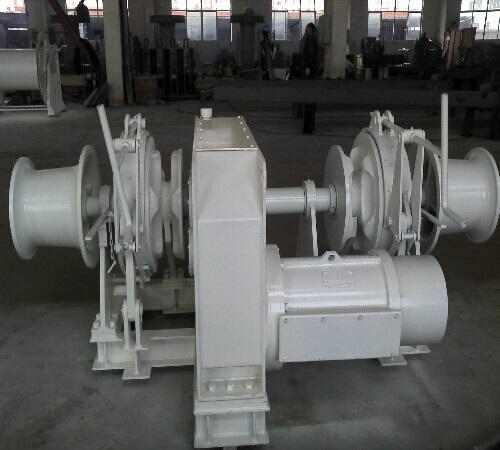

marine mooring winch, towing winch, marine hydraulic anchor windlass and mooring capstan

Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

off Road 12000lbs 12V Electric Winch

Price:300.00 USD/Set

Min. Order:1 Set
CE Certificated 1 Ton To 65 Ton JM Model Wire R...

Price:500.00-10,000.00 USD/Set

Min. Order:1 Set
marine hydraulic mooring winch

Price:500.00-6,000.00 USD/Piece

Min. Order:1 Piece
12 ton double drum hydraulic winches

Price:500.00-3,000.00 USD/Set

Min. Order:1 Set
5 Ton Pulling Winch Used On Contruction Site Su...

Price:100.00-10,000.00 USD/Set

Min. Order:1 Set
Electric Windlass,Construction Windlass,High Po...

Price:3,000.00-30,000.00 USD/Set

Min. Order:1 Set
Cable Winch (3-8T)

Price:

Min. Order:
Professional Manufacture 2ton, 3ton, 5ton, Elec...

Price:500.00-2,000.00 USD/Piece

Min. Order:1 Piece

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

We can supply kinds of marine winch,windlass and capstan with following details:

I. Marine mooring and towing winch:

We can supply a wide range of towing winches with following details:

Driven Mode: Electric or hydraulic drive
Configuration: Single or double drum, linear or waterfall
Rope: Fiber rope drum or steel wire rope drum
Rated pull: From 5 to 200 tones (1st layer)
Clutch: Hydraulic operated
Brake: Manually operated band
Control: Local and/or remote control

II Marine anchor windlass:

We can supply the marine windlass with following details :
1.The chain dia. Is 24/26 to 112/114 (mm)
2. The working loas is 24.5/28.7 to 595.9/617.3 (kN)
3. The working speed is over 9 (m/min)
4. The mooring pull is 8 to 350 (kN)
5. The drum capacity is ? 11× 100 to ? 48× 200 (m)

III. Marine hydraulic and electric capstan

We can supply the marine mooring capstan with following details:
1. The chain diameter is 11/14 to 58/60 (mm)
2. The working load is 5.9/7.4 to 133/153 (mm)
3. The anchoring speed is more than 12 (m/min)
4. The warping load is 5 to 60 (kN)
5. The warping speed is more than 10 (m/min)
6. Wire dia. Is 11 to 26 (mm)
7. Driven: Electric or hydraulic

Certificates: ABS, GL, LR, BV, RMS, NK, CCS, etc. can be provided.

Please contact with us for any of your inquiry!
