Home >Products Catalog > Electronic Jacquard-Staubli Type-High Speed-5376 Hooks

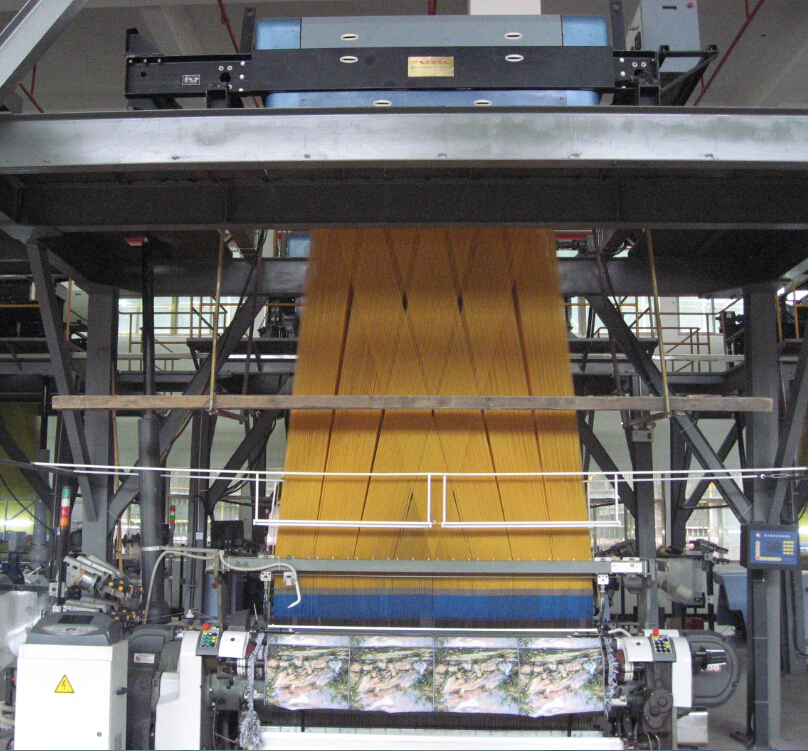

Electronic Jacquard-Staubli Type-High Speed-5376 Hooks

Supply Ability:	10,000 Set/Sets per Year
Shipping:	Shipment
Payment Terms:	T/T

Inquiry Now

Related products from verified members

Stainless Steel Hook

Price:

Min. Order:1000 Pieces
Hook

Price:0.10-0.15 USD/Piece

Min. Order:2000 Pieces
API 8A Hook & Block

Price:1.00-2.00 USD/Piece

Min. Order:1 Piece
Jeweled Hanger Hook

Price:

Min. Order:300 Pieces
XY Fastener Hook Bolt

Price:0.02-0.05 USD/Piece

Min. Order:1 Piece

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Wooden Case

Quick Details

Condition: New
Type: Electronic Jacquard
Application: All kinds of looms as rapier looms, air jet looms, water jet looms ect.
Production Capacity: 10000 sets/year
Brand Name: Hangzhou Wumu Technology
Model Number: WMZ-5376
Dimension(L*W*H): 2444*1534*1233 MM
Weight: 2500KG
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas

Specifications

PRODUCTS BRIEF INTRODUCTION

Type: WMZ5376

The highest rotate speed: 500 RPM.

Selection method: component+ module board+ lifting knife

Sheding form: double motion type & fully-open shed

Sheding height: Front shed height range is 46-95mm. Back shed height range is 61-119mm with easy adjustment.

Transmission Tape: Vertical-shaft.

Note: The quantity of needles can be chosen within the scope of standard model in any combination.

CHARACTERISTICS

It takes advantages of many national patents. This component type of electric magnetic needle system makes the jacquard machine be more efficient. Quick interface compatible technology with mature and adjustable shed design makes dismantling, maintenance and adjustment be more convenient. High intensity alloy lifting knife can meet the need of high speed and load. Numerous needles and species make this series of jacquard machine can adapt to broad width fabric weaving requirements.

RANGE OF APPLICATION

Matching with all kinds of trademark machines, rapier looms and double shed carpet looms. It is suitable for tie, silk, towel and a variety of fabrics weaving. WMZ2688S and WMZ4560S are the double shed carpet looms specialized in producing moquettes and carpets.

Technology Parameter

Type	Length(mm)	Width(mm)	Height(mm)	Weight(kg)
WMZ1536	1844	1086	1335	1500
WMZ3072	2444	1086	1335	1950
WMZ6144	2444	1534	1233	2500
WMZ8192	2757	1534	1233	3000
WMZ12288	3471	1142	1447	2300
WMZ6144A	3471	1142	1447	2300
