Incense burner Manufacturing&Processing Machinery

Specifications

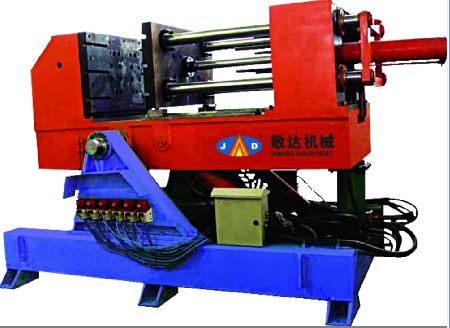

JD-AB500 Gravity Die Casting Machine
It's a machine used in casting not only copper but also brass. For aluminum and zinc casting, please refer to our products JDXZ-600.

Main Specifications and Technical Parameters
Maximum Outlined Diameter of Mold 500mm
Maximum Weight of Mold 150kg
Maximum distance of mold base plate 510mm
Maximum clamping stroke 270mm
Angle range of measured-cast 0° -90°
Angle range of mold immersion 0° -110°
Angle range of mold immersion 0° -90°
Oil Pressure 50-70bar
Power capacity 3.75+0.75+0.75W
Three phase power 380V/50Hz(per customers requirement)
Oil tank capacity 220L
Volume of mold immersion tank 375L+375L
Net weight of the Equipment 2000kg
Maximum dimension of the equipment 1650*2300*1720mm
Specifications
1)Passed ISO9001: 2000
2)Competitive Price
3)Top Product Quality
4)Prompt Delivery

On technology,
We constantly innovate, and strive to high-tech and high quality;

On the process,
We strive for perfection, breakthrough tradition and strive for excellence;

On management,
We emphasize science, pursue internationalization management concept;

On the service,
We adhere to the principles, advocate the unique principle of "customer first";

Company tenet: "carefully manufacture, meticulously design, sincerely serve" for the purpose.

Our certificate


Our workshop
