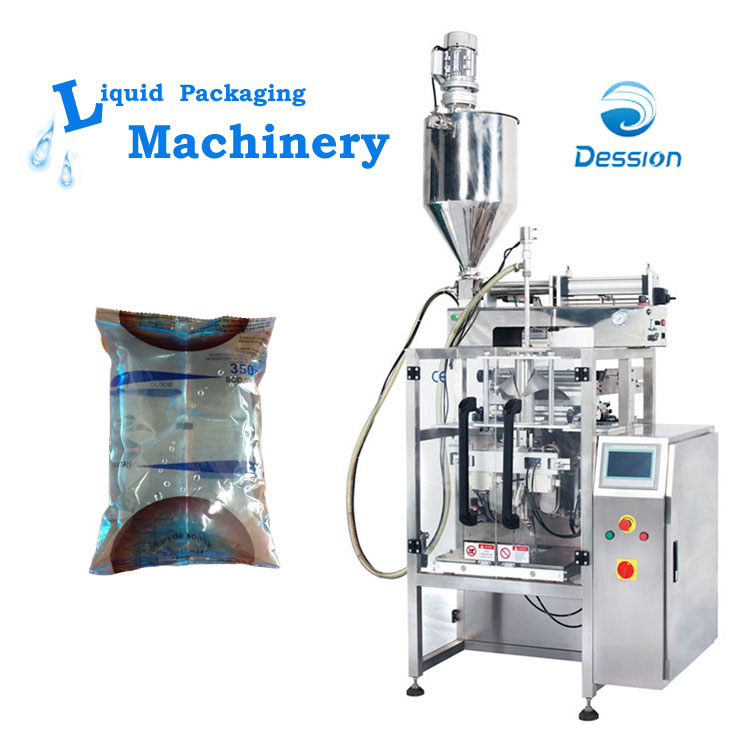

Automatic Stand-up Water,Jam,Liquid Packahging Machinery

Specifications

* * * * *Remark* * * * *
Customer care is our top priority!
For your specific item packaging, please feel free to contract us!


Ms.Liu









*You deserve best Machinery and enthusiastic service
~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~Packaging Machinery Features~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~

1. The section where the material contact is stainless steel as the body of machine is optional for complete or partial stainless steel and all out equipments have passed the GMP Standard.

2. Computer controller is the first patent of China; inverter and power switch are all imported with advanced technology.

3. Optional English or Chinese screen display, easy and simple operation.

4. Bag-making with précised technology enable the error less than ±o.5um.

5. High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.

6. Embedded sealing , enhanced structure of heat sealing intelligent temperature controller and excellent heat balance make all kinds of packaging materials possible with good performance, low noise, clear cutting pattern and strong sealability.

7. Packaging speed and length of bags can be set to some extent without further adjustment and parts changing.

8. Metering adjust device enables loss reducing, volume of the packaging changing anytime and improve productivity.

9. Alarming function for specific output; automatic display of packaging speed.

10. Optional coding equipment and with 1 to 3 lines for batch number and expiration date.

11. Bag-making, filling, sealing, cutting, counting, thermal pressing of batch number can be achieved automatically and straightly.

12. Flat cutting, pattern cutting, linking cutting can be realized by changing the tools; easy operation with smooth bags.

13. Bag-making equipment can be changed according to specific requirement of customers and products so as to adjust the amount of packaging.

14. Aimed at liquid or medium cream material, injection pump with leakproof device and anti-pull function enable extra accuracy of filling; the speed and the volume are adjustable.

~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~Packaging Machine specifications~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~
Brand: Dession Packaging Machinery
Type: DS-320LY
Measuring Form: Metering Pump

Sealing Form: Back Sealing
Transverse Sealing: Netted Line/Straight Line

Cutting: Tooth Cut/ Fat Cut

Measuring Range: 100～800ml
Packaging Rate: 5～60bags/min
Bag Width: 50～150mm
Bag Length: 60~200mm
Film Width: 320mm
Air Consumption: 0.65mpa
Bag pulling: Servo Motor Bag Pulling
Power: 220V,50HZ,2.2KVA
Machine size: (L)1170×(W)820×(H)2285mm
Machine weight: 750KG
Machine packaging: Wooden Case

~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~Application~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~

Suitable for laundry detergent, detergent, stuffing, sauces, reagent, pesticide emulsion, dyes, pigments and medium viscosity of the paste objects.

~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~Product Advantage~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~

1. Well and High Quality Control
2. Competitive Prices
3. Small Order Acceptable
4. Tailor-made product
5. ODM Accepted
6. OEM Accepted

~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~Warm Prompt~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~·~
Please let us know the follow packing details when you offer,so that we can check if this model is suitable for your case.Thank you in advance.
1. Product details
2. Bag width,bag length
3. Bag shape
4. Packing film material
5. Machine frame
