CBY Lighting Co., Ltd.
China Manufacturer with main products: Solar Light, LED Panel, LED Light, LED Flood Light, LED Downlight, LED Bulb, LED High Bay Light, LED Tube |
600*1200mm 32W RGB led panel(
| FOB Price: | 70.00 - 98.00 USD/Piece |
|---|---|
| Supply Ability: | 5,000 Piece/Pieces per Month |
| Shipping: | 7-10 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, paypal |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | 5pcs per caton |
Quick Details
- LED Light Source: 288pcs 5050 SMD
- Install Style: In-built,Mounting,Suspending
- Input Voltage(V): 85-265VAC
- Lamp Power(W): 32W
- Lamp Luminous Flux(lm): 2000
- Lamp Luminous Efficiency(lm/w): 80
- CRI (Ra>): 80
- Color Temperature(CCT): warm white, white,cool white
- Working Temperature(℃): -40 - 60
- Working Lifetime(Hour): 50000
- Lamp Body Material: Aluminum
- IP Rating: IP44
- Certification: CCC,CE,C-tick,Energy Star,EMC,FCC,LVD,ROHS,SAA,SASO,UL
- Brand Name: CBY
- Model Number: CBY-LP5032W-60120
- Warranty: 3 years
Specifications
600*1200 32W RGB SMD led panel
No flicker, No glare, No ghosting, No radiation, No eye injury, Not distracting, Really healthy!
1
Dimension(mm)
600x1200x11mm
2
Wattage (W)
32w
Item No
CBY-LP5032W-60120
3
Luminous Flux (LM)
3600LM@5000K
4
Light Source
288PCS 5050 SMD
5
Light Way
From 2edges
6
Thickness
11mm
7
Input Voltage (V)
AC100-240V ,50/60HZ
8
Output Voltage (V)
DC24V
9
Material
PMMA+6063 Aluminum
10
CCT
Full RGB
11
CRI
>80
12
Dimmable Way
DALI Dimming , IR Dimming , RF Dimming ,Manual Dimming , 0-10V Dimming
13
Frame Color
White/Silver /Black
14
Operation Temperature
-30 °C~ +60 degree
15
Storage Temperature
-30 °C~ +60 degree
16
Humidity Operating
10-80%
17
IP Code
IP41
18
Light Angle
120°
19
Installation
Suspended & Surface Mounted & Recessed
20
Gross Weight
3.5kg/pcs
21
Package
2pcs/inner box , 10pcs/outer carton
22
Carton Size
68x32x76cm
23
Life Span
50,000 hours
24
Warranty Time
3 years
25
Certificates
CE/ROHS
Why choose CBY Led panel light:
* Use the "Lifud" led driver (TUV,CE, SAA, FCC, CB, EMEC approved),high efficiency(90%) with built-in overheat protection.
* The light guide plate we used is "Mitsubishi" from Japan,the diffuser plate is "Chimei",with very good lighting effect, no any spot.
* the SMD we used is pure gold line with copper holder.about 25LM/LED
* thick 6063 Aluminum shell with very good heat dissipation.
* No start up delay , no flickering , no humming
* Independent LED circuit design prevents complete blackout in case an LED fails
Application:
* office lighting
* Home lighting
* Commercial Lighting
* Project Lighting
* Publicity Lighting
* School Lighting
*School Lighting

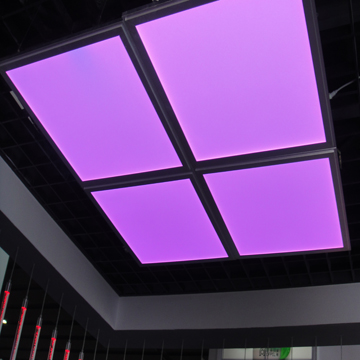

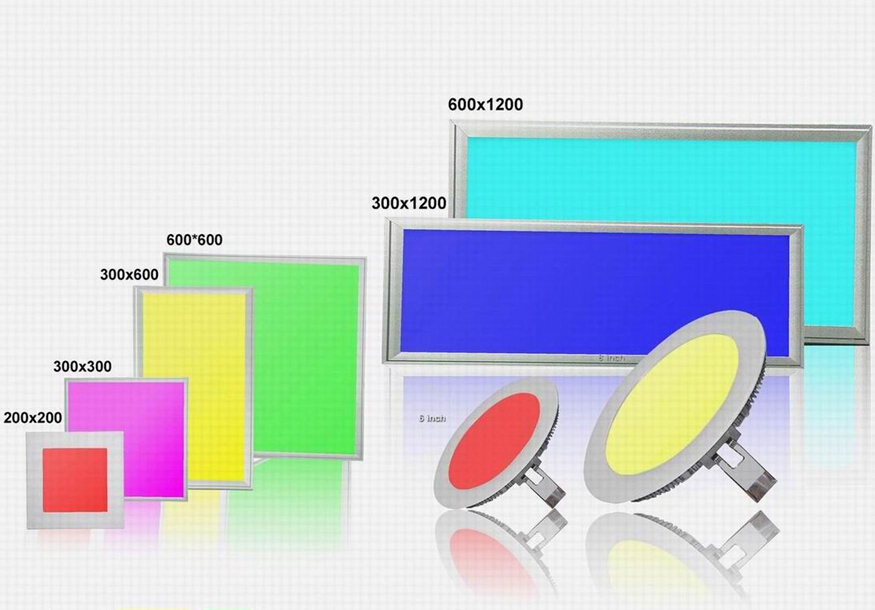

LED panel picture
Package
1pcs per inner carton, 5pcs per outer carton.
The size of outer carton is : 1270*320*690mm
GW: 39.8kg.
