Marine Watertight Window/Marine Glass Window

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	wooden case

Quick Details

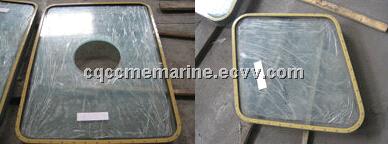

Marine Boat Steel Ordinary Fixed Rectangular Window Brass Material

Type: heavy type (E) or light type (F)

Series: regular series, fire-resistant series,heated series

Installation: Bolt fixed rectangular window or welded rectangular window

Frame material: brass, aluminum, steel

Glass: toughened glass

Cutout in bulkhead: 429x574mm to 2504x1804mm

Nominal size: 355x500mm to 2400x1700mm

Glass thickness: E: 10mm to 19mm F: 8mm to 15mm

Main Size List (mm):

Series	Type	Code	Nominal Size	Opening Size		Frame		Opening
Series	Type	Code	wxh	W1xh1	r	W2xh2	W3xh3	Opening
N, P, H	E,F	1	300x425	352x477	76	348x473	430x555	ILB,ILW,IRB,IRW,ITB,ITW,OLB, OLW,ORB,ORW,OTB,OTW,NOB,NOW
		2	355x500	407x552	76	403x548	485x630
		3	400x560	452x612	76	448x608	530x690
		4	450x630	502x682	126	498x678	580x760
		5	500x710	552x762	126	548x758	630x840
		6	560x800	612x852	126	608x848	690x930
		7	900x630	952x682	126	948x678	1030x760
		8	1000x710	1052x762	126	1048x758	1130x840
		9	1100x800	1152x852	126	1148x848	1230x930
