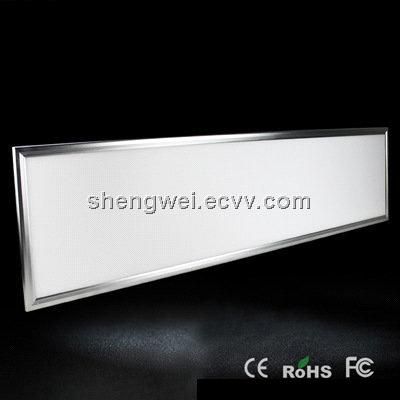

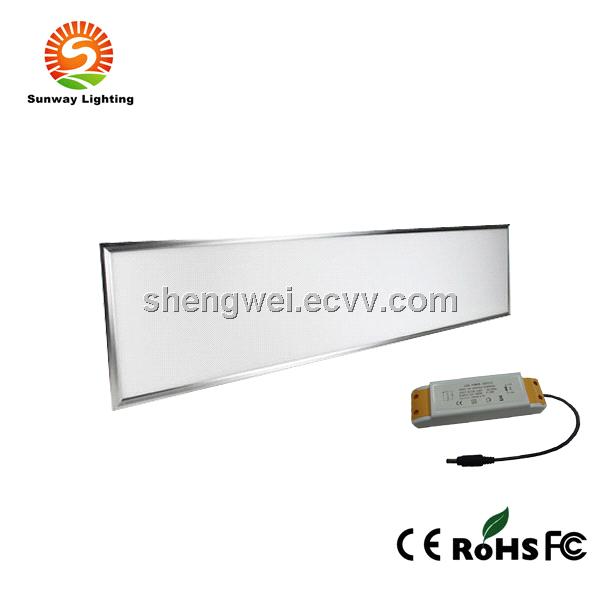

36W LED panel light high brightness (300*1200MM) CE UL power supply
| FOB Price: | 10.00 - 80.00 USD/Piece |
|---|---|
| Supply Ability: | 100,000 Piece/Pieces per Month |
| Shipping: | DHL,FEDEX,UPS |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Dimension of the external box: 720*720*270cm Quantity (PCS): 4 pcs in a carton |
Quick Details
- Item Type: Panel Lights
- Light Source: LED
- Model Number: SW-PL6060-36W
- Brand Name: Sunway
- Certification: CE,EMC,FCC,LVD,RoHS
- IP Rating: IP44
- Lamp Body Material: Aluminum
- Working Lifetime(Hour): 50000
- Color Temperature(CCT): Pure White
- CRI (Ra>): 80
- Lamp Luminous Efficiency(lm/w): 80
- Lamp Luminous Flux(lm): 3000
- Lamp Power(W): 36
- Input Voltage(V): AC85-265
- Warranty(Years): 3
- LED Light Source: SMD2835
Specifications
Specifications
1. Big and thin panel
2. Longer spanlife, lower cost
3. Passed CE & ROHS, more green and health
we are professional Led Panel, Led Tube, Led Bulb, Led Rigid Strip,LED DownLight, manufacturer and exporter in China.
These products have been delivered to Europe, United States, Asia, the Middle East, Russia and African countries.
We are expanding more cooperation partners all over the world.
Super slim led ceiling office panel lighting, 36W led panel light housing
1. 3200lm,300*1200 mm
2. 3 years warranty
3. LED panel light manufacturer
4. CE, RoHS,UL,
Our advantages:
1.High brightness : Adopt SMD5630 with each LED 22-23lm, drive current is 60mA, while the SMD5630 Max driver current is 150mA. only 40% of Max current.which is better for longer lifetime and lumen loss.
The other suppliers usually use Epistar SMD3528 with each led 6.5~7lm, drive current 18mA for working,while the Max drive current for Epistar SMD3528 is 20mA.
2.Chip size for SMD5630 is 20*44mils=880mils.
Chips size for Epistar SMD3528 is 8*10mils=80mils.
3.Aluminum PCB board: High heat conductor of aluminum PCB, much easier for heat output
4.Less decay : small current for leds light source and best aluminum PCB, 5000hours in temperature testing no decay. 5000hours in 50degrees temperature testing, less than 2% decay
5.Soft-start protection devices, easy avoid impact to transient current on led
Products Information
| Light source | SMD5630 led |
| Luminous Flux | >3200lm |
| CCT | 2700-3500K,4000-5000K,5500-6500K |
| Color | White,Warm White |
| Consumption power | 36W |
| Input voltage | AC100-240V |
| Color rendering index | >82Ra |
| Material | Aluminum frame edge with LGP(PMMA) |
| Waterproof | IP40 |
| Light efficiency | >80% |
| Electrical source efficiency | >85% |
| Power factor | 0.97 |
| Working temperature | -20-+50degree |
| Input voltage | 100-240V |
| Beam angle | 120 degree |
| Life span | >50,000hours |
| Size | 300*1200*12MM, |
| Frame width | 12mm |
| Installation ways | built-in installation, suspended, Mounted |
| Operating time(hours) | Lumen decrease(%) |
| 5,000 | 2.4 |
| 10,000 | 5.2 |
| 20,000 | 11.3 |
| 50,000 | 24.5 |
