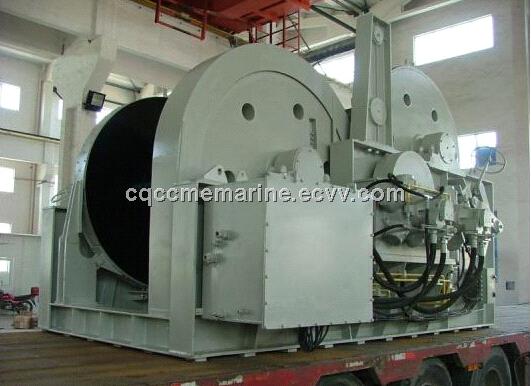

Marine Mooring Winch/Marine Towing Winch/Marine Anchor Winch

Shipping:	30 days
Payment Terms:	L/C, T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	wooden case

Quick Details

Brand Name: CCME

Specifications

Marine Mooring Winch is a device of marine equipment usde during mooring operations to hols a boat in place at a pier or similar fixture. The mooring winch contains a drum around which sailors can wrap rope, chain, or cable, depending on the type of ship. It can be single drum and double drum.

Basic Information for Reference:

Driven Model: Electric or Hydraulic

Configuration: One or two mooring drums(or split drum), one or two warping heads, with or wothout warping head and gypsy.

Brake: Failsafe manual or hydraulic brake

Clutch: Manual or hydraulic operated

Controls: Local or remote control

Mooring winch/Marine Electric mooring winch/Marine Hydraulic mooring winch/winch/ship mooring winch details

1)Drive: electric / hydraulic

2)High safety and good safty

3)Chain Diameter: 30~100mm

4)Chain speed: as per ISO standard

5)Individual design and good quality.

6)Technical support and spare parts.

7)Approved by classification societies such as CCS, ABS, and BV etc.

Rated pull: 10kN to 1000kN

Rated speed: 4m/min to 15m/min

Drum capacity: ?8mm×150m to ?85mm×250m

Motor power for electric type: 3kW to 85kW

Motor power for hydraulic type: 5.5kW to 132kW
