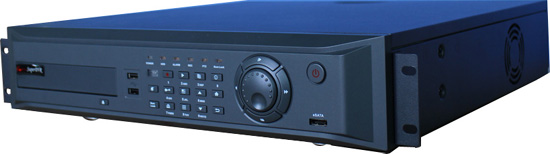

effio 960H dvr HK-S8216F 2U 16 channel dvr

FOB Price:	1.00 - 500.00 USD/Set
Supply Ability:	5,000 Set/Sets per Month
Shipping:	EXW SHENZHEN
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Standalone DVR (IV-D8316B)

Price:300.00-350.00 USD/Shenzhen

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	OEM Package

Quick Details

Brand Name: KingCCTV
Model Number: HK-S8208F, HK-S8216F
Compression Format: H. 264, supports VBR as well as CBR
Mobile Support: Iphone,Android

Specifications

960H H.264 NETWORK DVR HK-S8216F 16 channel dvr

Feature

  (1) The video compression is H.264, supports VBR as well as CBR, selectable video picture quality
(2) 8/16 channel 960H/FD1 video input 2U DVR
(3) Support 8 HDDs,2 eSATA,4 USB Interfaces
(4) Support Icon Interface,User Friendly & Easy-Operate
(5) Support AVI Backup,Snapshot,Record Lock,Record Cutting
(6) Quick Backup when Playback
(7) Support 3G Network Access
  (8) Max 8 Network Accessing Users
(9) Support Eliminating Bad Disk,HDD Record Storage Group,HDD R/W Control
(10) Support HDMI/VGA/BNC/SPOT Simultaneous Output
(11) Support PTZ,Manual Alarm,Alarm In/Out
(12) Support CMS,Web View and Mobile View(IPAD,Iphone & Android)
  (13) IR Remote Extension Cord
(14) Can Support Multiple Browser(IE, Chrome, Firefox, Safari)

specification

Model/Item	HK-S8208F	HK-S8216F
Compression Format	H. 264, supports VBR as well as CBR
Operating system	Embedded LINUX
Video Input	8CH BNC(1.0VP-P,75Ω)	16CH BNC(1.0VP-P,75Ω)
Video Output	1 BNC, 1 VGA,1 HDMI,1 SPOT
Audio Input	4CH BNC	8CH BNC
Audio Output	1ch BNC
Audio Compression	G.711A
Audio Bidirectional Talk	3.5mm MIC Input Interface
Alarm Input	8CH	16CH
Alarm Output	4ch
Preview Resolution	960H: PAL(928576), NTSC(928480); FD1: PAL(704576), NTSC(704480); VGA/HDMI:1920*1080
Preview Display	1ch/ 4ch/ 8ch/ 9ch	1ch/ 4ch/ 8ch/ 9ch/ 12ch/ 16ch
Preview Privacy Masking	4 zones Maximum, On DVR
Recording Resolution	8ch FD1/CIF/960H/Q960H	16ch FD1/CIF/960H/Q960H
Record Mode	Manual, Schedule, Motion, Alarm
Record Interval	Pre-record: 5~30 sec., Post-record: 0~180sec.
Playback Channel	8ch/16ch 960H Full Channels Realtime Playback
Playback Search Mode	Time, Date, Record Mode, Smart Search,Quick Playback
Playback Privacy Masking	4 Zones Maximum, On DVR and PC
3G Network	Support 3G Modem
Remote Operation	WEB( IE, Chrome, Firefox, Safari)
Mobile Support	Support (IPhone, Andorid, Ipad)
Backup	USB Disk/ USB HDD/ USB CD&DVD-RW / eSATA / Internal SATA burner / Network Download
HDD	8 HDD(Max support 4TB each), 2 eSATA(Front 1,Back 1)
Network Interface	1 RJ-45 10/100M/1000M adaptive Ethernet Interface
USB Interface	4 Interfaces( Front 2 & Back 2)
Auxiliary Interface	1 RS-485(FDX),1 RS232, 1 IR Extension Cord
Storage Temperature& Humidity	-20~65? / 10~90% RH (No Condenser)
Operation Temperature& Humidity	-10~45? / 15~85% RH
Power Adapter	220/110V, 50/60HZ
Power	67W	71W
Dimension(LWH)	440 * 440 * 88mm
Weight	Gross weight:10kg ; Net weight:7.1kg

960h DVR,H.264 compression, Can display up to 16 Cameras,supprt 8ch/16ch 960H Full Channels Realtime Playback, Recommended installation areas are Securities Companies, Change Booths, Pawnshops, Jewerlers, Galleries, Exhibition Halls, Department Stores, Convenience Stores, Discount Offices, Hospitals, Police Stations, Subway Stations, Airports, Banks etc.
