Quick Details
- Brand Name: Ruilon
- Model Number: TAS22010
Specifications
Product About

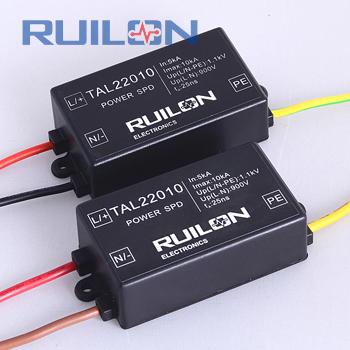

LED Street Lights Power SPD: TAS22010 designed for protecting 220V LED Driver and could be connected perfectly with its input port, sealed enclosure, waterproof and dustproof, IP67 protection grade,belongs to Class III power SPD. This SPD use common mode, differential mode, full protection with leakage current and cut the overcurrent capabilities. The product size small,21 x 37 x 82 mm(includes mounting holes), using series connection, attached with L, N and PE cable, very convenient in installing. The maximum discharge current is 10kA/line, nominal discharge current is 5kA/line, able to withstand voltage 20kV, the level of protection is below 1.1kV, especially good for protecting LED Street lights form lightning surge damage.
Technical Parameters
Type TAS20010
Nominal operating voltage 220V AC
Maximum continuous operating voltage 320V AC
Nominal discharge current 5kA
Maximum discharge current 10kA
Protection level 1.1kV
Nominal discharge voltage 10kV
Maximum discharge voltage 20kV
Frequency 50-60Hz
Response time 25ns
Front fuse or air switch 16-25A
Use environment temperature -40 to +80 degrees Celsius
Outer casing protection grade IP67
Testing standard GB 18802.1-2011
Installation Mode 35mmDIN
Size 20 x 34 x 76mm
