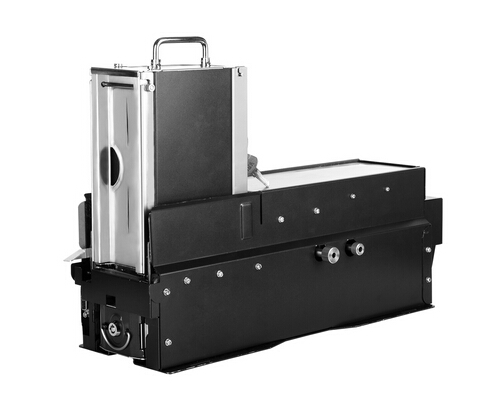

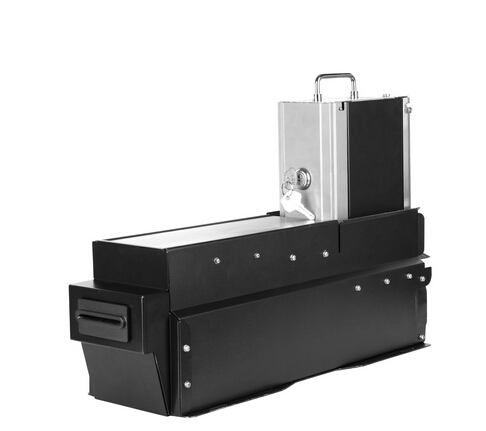

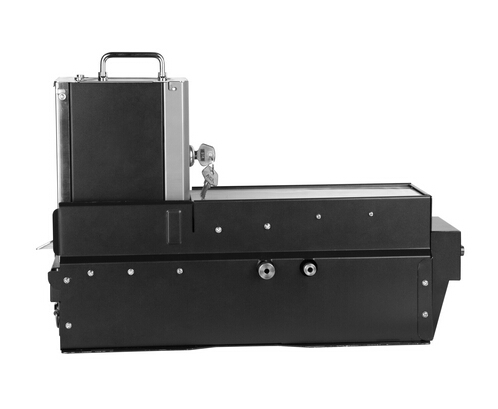

Motorised Magnet/IC Contact/RFID Card Dispensor/Encoder

Supply Ability:	1,000 Unit/Units per Month
Shipping:	two weeks to one month, shipment at shenzhen
Payment Terms:	L/C, T/T, Western Union, MoneyGram, paypal

Inquiry Now Start Order

Product Details

Export Markets:	North America, Eastern Europe, Southeast Asia, Oceania, Eastern Asia, Western Europe
Place of Origin:	Shenzhen in China
Packaging Details:	packed in cartons

Quick Details

Height (mm): 170
Width (mm): 105
Brand Name: Koten
Model Number: K2601
input voltage: 24V+-5%
Working current: Max 2.0A
Communication interface: RS232, half duplex
Weight: 3.6kg
Capacity of stacker: 120pcs(standard 0.76mm thick)
Retrieving bos capacity: 15-20pcs

Specifications

I Features:

1.1This machine is a small issuing device that connect with ORMON V2XF&SANKYO 3K8&TTCE-M600 card reader&writer, with read,write, capture, dispense function and low price.

1.2 Single serial port control, save the main control device port

1.3 Support transparent transport protocol, which greatly improve the flexibility of programming;

1.4This dispenser with read/write contactless IC card function that can make up the shortage of OMRON V2XF and SANKYO 3K8

1.5 The card stacker and capture box have a lock with anti-theft function.

1.6 Connect with OMRON V2XF,SANKYO 3K8,M600 by intelligent positioning mode.

II Function introduction

Item	Function description
Dispense card	Adjust card space automatically to fit multiple thickness card.
Read/write RFID card	Comply with ISO14443A read/write
Read /write magcard	Read&write magnetic card of ISO7811 standard,and support high/low resistance through the command to set
Read/write contact IC card	Support ISO7816,EMV,PBOC2.0 standard contact IC card read and write
Indicating lamp	Power on Indicating lamp
Retrieve card	Through command to capture card to retrieving box
anti-theft design of card stacker	The stacker with anti-theft lock, through the key to open it.
Other functions	Provided by the connected card reader

III specification

Item	Parameter
Input voltage	24V±5%
Working current	Maximum 2.0A
communication mode	RS232,Half duplex
Work environment	Temperature: -10 ℃ ~ 50 ℃ and humidity: 10% ~ 90% RH
The storage environment	-20℃ ~ 70℃
Dimension	L:150 x W:105 x H:170(mm)
Weight	3.540 Kg
Card size and material	paper cards or polyester card, width: 54 ± 0.5mm, 85 ± 0.5mm card length: 0.2-2.0mm height adjustable.
The capacity of card stacker	standard 120pcs(thickness 0.76mm)
Retrieving box capacity	15-20pcs(card thickness 0.76mm)
