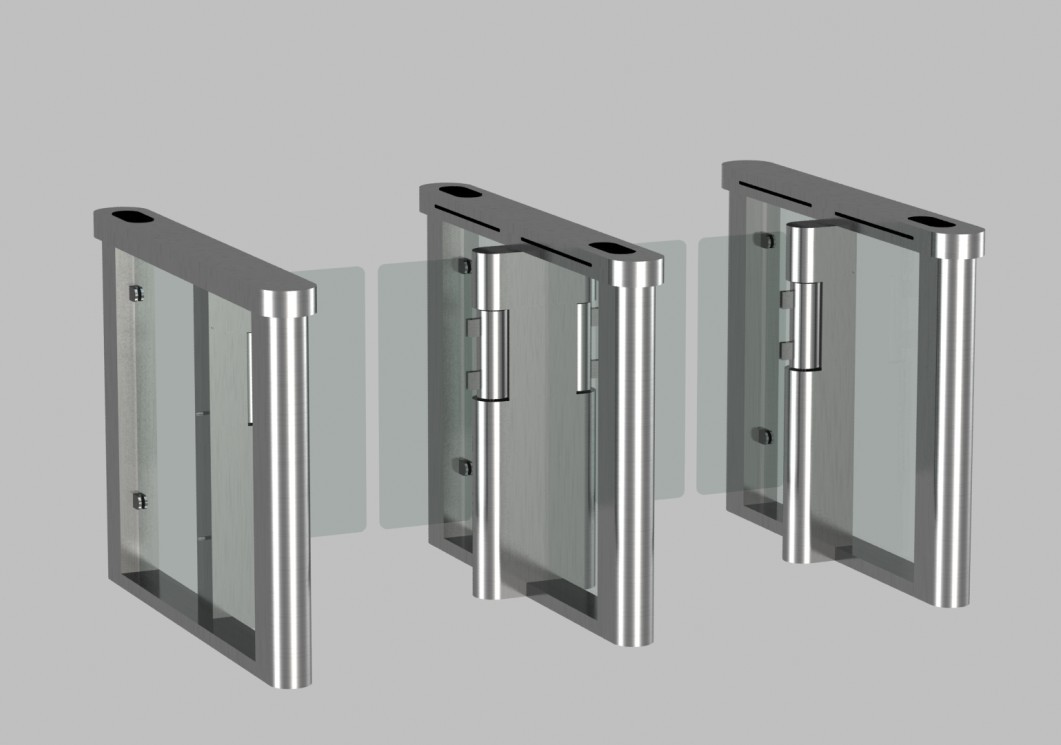

Luxury Intelligent Automatic Swing Barrier Gate KT245

Specifications

Specification:

D:1200*280*1000mm,

Lane width: 600-700mm,

Material: SUS304 stainless steel of thickness 1.5mm,Acrylic arm,

Bi-direction, with card reader mounting brackets,

LED direction indicators,

Barrier open/close after Infrared induction adjustable,

Infrared induction anti-nip function,

sound alarm when illege breaking in,

barrier automatically open when power off,

automatically close when power on

Features:

1. Failure self-checking and alarm, very convenient to maintenance and use.
2. Easy to program operation mode by built-in little keypad on master controller
3. Mechanical anti-pinch structure enables motor to stop working automatically in given time if there is something on the way during reset, and reset again after default time delay
4. Anti-rushing function: The gate lock automatically without open signal
5. Gate synchronization is adjustable.
6. Automatic resetting function: During opening, the system will cancel access this time if nobody pass within given time.
7. It is easy to change normal open or normal close mode for different requirement.
8. It is easy to be integrated with magnetic card, barcode card, ID card, IC card, etc
9. One-way or two-way traffic flow available
10. It is able to remote control by computer.
11. Automatic delay reset process 5s after open.
12. Open automatically when power off and close automatically when power on.
13. Sound & light alarm, including illegal break-in alarm, close automatically for reverse entry, etc
14. Anti-pinch function is available.

15. Infrared reset function (Optional).

Peripherals options:

1. Electronic counter

2. Access control system

3. E-ticketing system

4. Time attendance system

5. Exit button

6. Remote controller

Application:

Office building

Science & education institutes

Commercial service place

Places of leisure

Transport station

……
