Cyg Changtong New Material Co., Ltd.
China Manufacturer with main products: Pipeline Anticorrosion, Heat-Shrinkable Wraparound Sleeves for Connecting of Telecommunication Cables, Connection Accessories for Fiber... |

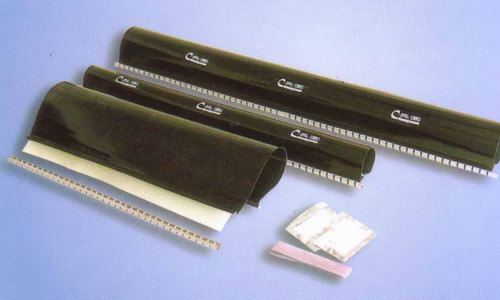

Heat Shrinkable Cable Repair Sleeve
| FOB Price: | 1.00 - 20.00 USD/Piece |
|---|---|
| Supply Ability: | 50,000 Piece/Pieces per Month |
| Shipping: | 3~30 days |
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Using carton packaging Can be printed according to customer requirements |
Quick Details
- Brand Name: CYG
- Model Number: RSW
- Material: PE
- Application: High Voltage
- Rated Voltage: 35kV
- Tensile Strength: 17MPa
- Elongation at break: 350%
- Longitudinal shrinkage: 5%
- Dielectric strength: 36kV/mm
- Water absorptive: 0.15%
- Low Temperature Flexibility: No cracking
Specifications
RSW Wraparound sleeve is mainly used for repairing outer/inner sheath/core damages on a HV cable and LVcable. It is made from cross-linked polyolefin which equals or exceeds the material properties of the original cable jacket. They can also be used for protecting against corrosion on metallic parts of the cable that are exposed to the outside.
Features:
Material: cross-linked polyolefin, inner coated with hot-melt adhesive
Standard color: black
Highlights: easy operation, wide range of selection, fit every occasion, excellent water repellency
Operating temperature:-40～+65°
Shrink temperature:200°
Specification:
|
Selection |
Supply Size |
Diameter after Being Shrunk |
Cable's diameter (mm) |
|
RSW 28/6 |
22 |
6 |
7～15 |
|
RSW 36/10 |
36 |
10 |
12～20 |
|
RSW 50/15 |
50 |
15 |
18～40 |
|
RSW 60/18 |
60 |
18 |
20～50 |
|
RSW 70/22 |
70 |
22 |
25～60 |
|
RSW 80/25 |
80 |
25 |
30～70 |
|
RSW 100/30 |
100 |
30 |
35～90 |
|
RSW 135/38 |
135 |
38 |
40～120 |
|
RSW 164/45 |
164 |
45 |
50～150 |
|
RSW 185/55 |
185 |
55 |
65～165 |
|
RSW 200/60 |
200 |
60 |
80～180 |
|
RSW 220/65 |
220 |
65 |
90～200 |
|
RSW 240/70 |
240 |
70 |
100～220 |
|
RSW 260/75 |
260 |
75 |
120～240 |
|
RSW 280/80 |
280 |
65 |
140～260 |
|
RSW 300/85 |
300 |
65 |
160～280 |
Length: 250mm,500mm,750mm,1000mm,1500mm,2000mm
Technical Data
|
Item |
Test Method |
Typical Data |
|
Tensile strength |
ASTM D2671 |
≥ 17MPa |
|
Tensile strength after aging |
ASTM D2671 |
≥ 14MPa |
|
Elongation at break |
ASTM D2671 |
≥ 350% |
|
Elongation at break after aging |
ASTM D2671/150°, 168hrs |
≥ 300% |
|
Density |
ASTM D792 |
0.94g/cm3 |
|
Longitudinal shrinkage |
UL224 |
< 5% |
|
Dielectric strength |
IEC243 |
≥ 36kV/mm |
|
Volume resistivity |
IEC93 |
≥ 10 14 Ω · cm |
|
Copper stability |
ASTM D2671 |
Pass |
|
Water absorptive |
ISO 62/23°, 14days |
< 0.15% |
|
Low Temperature Flexibility |
ASTM D2671 |
No cracking |
|
Resistance to fungus and decay |
ISO 846 |
Pass |
