Home  >Products Catalog > Woodworking CNC Router > TZJD-1325B Wood Engraving machine/CNC Wood machine with Servo motor

TZJD-1325B Wood Engraving machine/CNC Wood machine with Servo motor SafeBuy Supplier Member

FOB Price: 1,665.00 - 5,661.00 USD/Set
Supply Ability: 100 Set/Sets per Month
Shipping: 6 working-days Delivery time, FOBQingdao
Payment Terms: L/C, T/T, Western Union
Update Time: 2017/10/5
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shandong in China
Packaging Details: fumigating wooden case

Quick Details

  • Brand Name: TZJD
  • Model Number: 1325B
  • Color: White
  • Working area: 1300mm*2500mm*200mm
  • XY structure: Rack and pinion transmission
  • Z structure: Imported German ballscrew
  • Spindle: 4.5kw water-cooling, air-cooling
  • Drive motor: Servo
  • Guide rail: Taiwan HIWIN Square guide way and slider
  • Working table: Vacuum absorptional table
  • Control system: Ncstudio controller, DSP controller
  • Software: Original Type3

Specifications

TZJD-1325B Wood Engraving machine/CNC Wood machine with Servo motor

1-
Specification Parameter

Description

Paramater

TZJD-1325B

Working Area (X*Y*Zmm)

1300mmx2500mmx200mm

X, Y Structure

Gear Wheel Transmission, Shaft Linear Bearings

Z Structure

Ball Screw, Shaft Linear Bearings

Table Surface

Vacuum absorption table with vacuum pump system

Max Engraving Speed

20000mm/min

Frame

Cast Square tube welding

Spindle power(KW)

3kw/4.5kw/5.5kw/6kw/7.5kw/9kw

Max. Power Consumption(Without spindle)

2.0KW

Spindle Speed

6000-24000rpm

Resolution

0.005mm

Repeatability

0.01mm

Voltage

AC220V,50/60Hz,1PH(option,380V 3PH)

Drive motor

 Stepper/servo

Working Dictate

G Code*.u00*.mmg*.plt

Operating system

Dsp System/Syntec/LNC

Necessary function

Auto-oiling system

Interface

USB

Flash memory

128M(U Disk)

Software Compatability

Type3,Ucancam, Artcam Software

Running Environemt

Temperature: 0℃~45℃

Relative humidity: 30%~75%

Working software

Windows98/2000/xp



2-
Product Features

1. Three Axis under the control of Type3 software, high automation.

2. Y axis adopts double motors to ensure stable operaton.

3. High speed and efficiency, max. speed over 14m/m.

4. The CNC Engraver is with two motors and unique two rack driving,

No deformation and vibration after a long-time work within high speed.

5. Application of driver with high definition subdivision ensures fast speed and high accuracy.

6.Wood industry,it is a professional wood door making and furniture making machine.

7. Automatic oiling system fulfills the periodic lubrication maintenance just by a slight press.

8. Imported Taiwan HIWIN linear guide tail, ensure the machine stable movement.


3-Applicable industry
Wood industry,i wood door making and furniture making, relief, double-color board, bamboo crafts,
Advertising industry,breastplate,doorplate, aluminum, marble/stone industry.


4-Applicable material
Wood,organic glass,PVC board, plastic, marble, metal, aluminum, KT board,Acryl ,etc

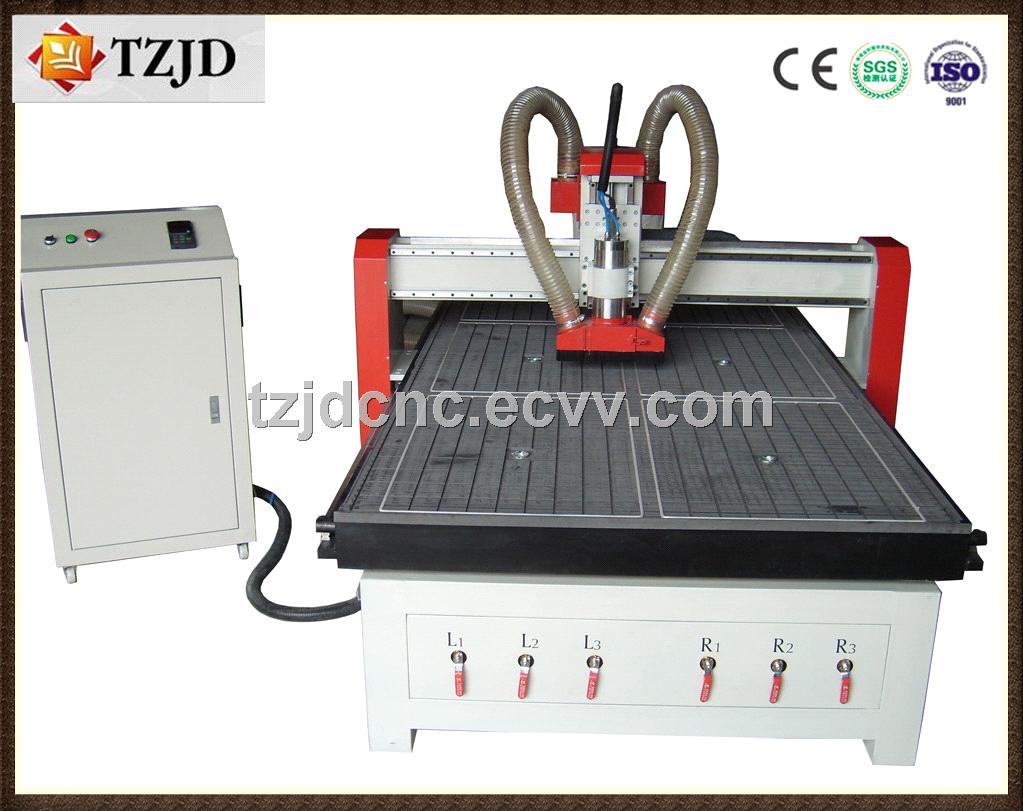

5- Machine picture
ecaltvv


6- Sample picture
 ecaltvv
ecaltvvecaltvv
ecaltvv
